描述

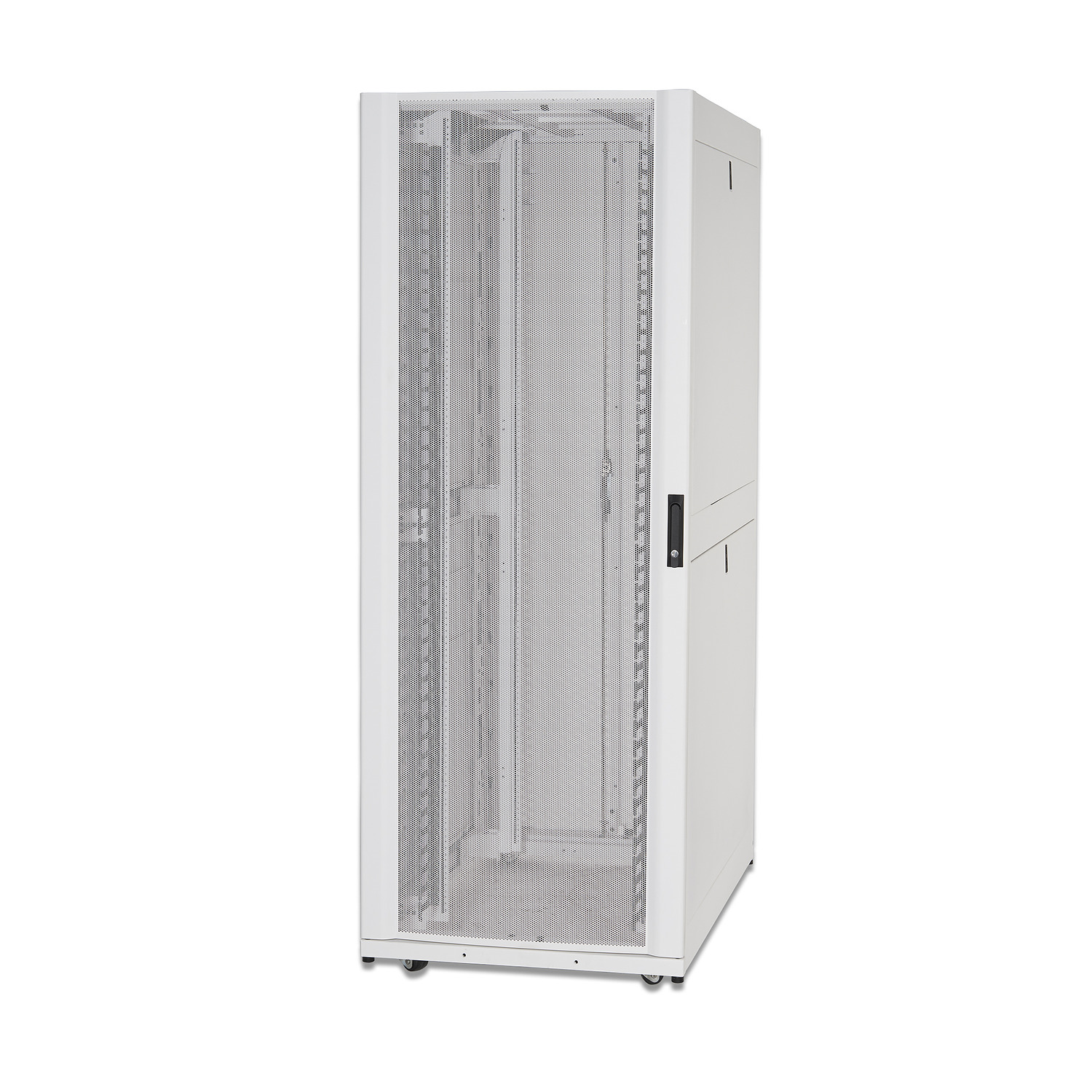

AR3140W
NetShelter SX, Networking Rack Enclosure, 42U, White
AR3140W 屬APC伺服器機櫃及機房設備產品。傑成系統有限公司（香港防盜）為APC產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修，可配合網絡佈線、UPS 及機房環境監測一併規劃。方案可參考Server Room 架設及維修。規格以原廠資料為準。
產品說明
NetShelter SX Networking Enclosure expands Schneider Electric's superior IT enclosure line with improved support for high density networking applications Integrated high density cable managers and improved cable access roof provide support for large cable bundles When combined with the Side Airflow Duct Kit, the Networking Enclosure ensures complete isolation of cold intake and hot exhaust air for large switches and SAN directors
規格
主要規格
| Product or component type | Rack enclosure |
|---|---|
| Number of rack unit | 42U |
| Rack width | 19" |
| Permanent permissible load | 1020.6 kg dynamic; 1701.0 kg static |
| Provided equipment | Baying hardware; Key(s); Keyed-alike doors and side panels; Leveling feet; Mounting hardware; Pre-installed casters; Side panels; Vertical cable managers |
補充規格
| Mounting mode | Not rack-mountable |
|---|---|
| Minimum mounting depth | 279.4 mm |
| Maximum mounting depth | 819.2 mm |
| Colour | White |
| Marking | 14 gauge EIA mounting rail; 16 gauge front door; 16 gauge post; 16 gauge rear door; 18 gauge roof; 18 gauge side panels |
| Height | 1991 mm |
| Width | 750 mm |
| Depth | 1070 mm |
| Net weight | 155.95 kg |
