描述

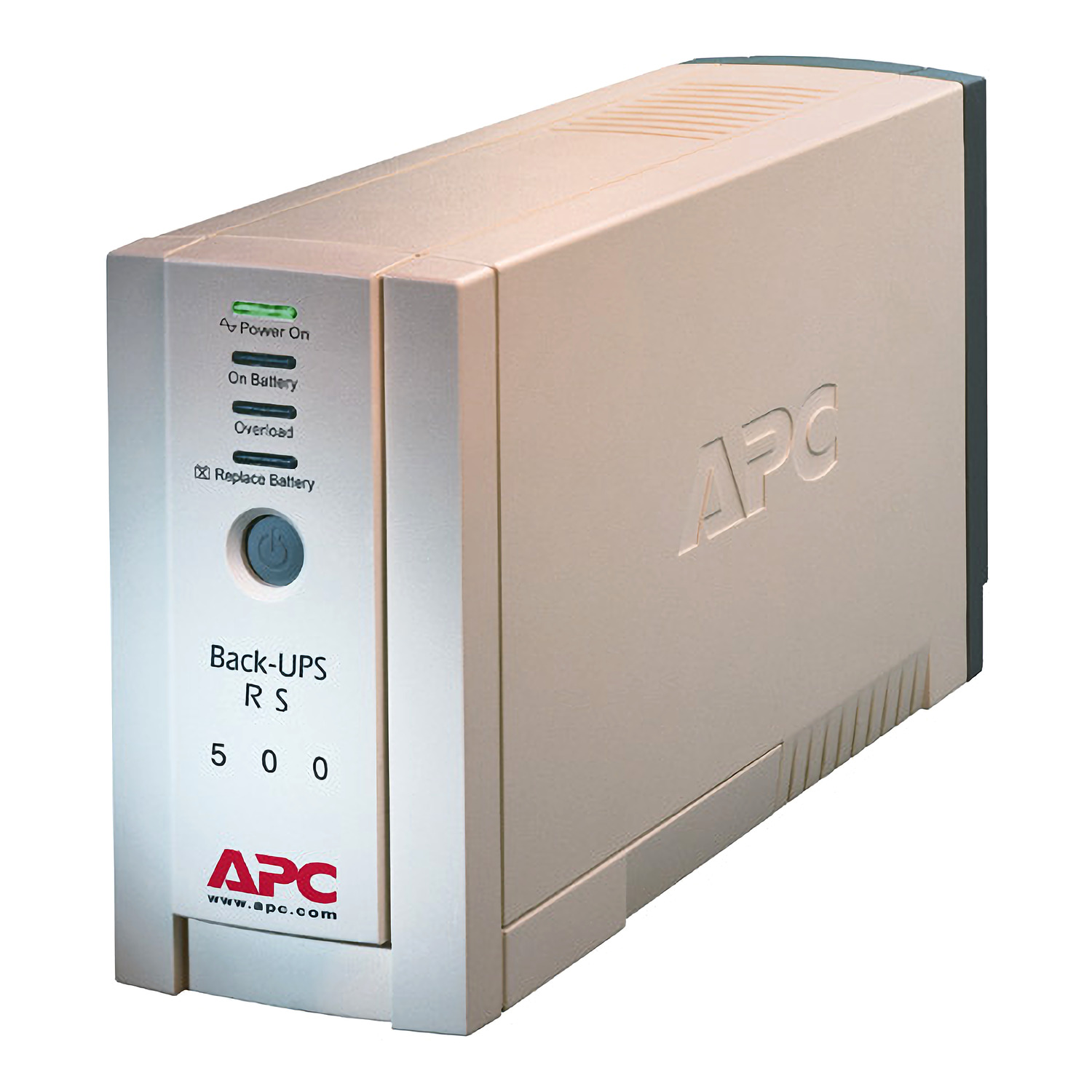

BR500I
Back-UPS RS 500VA
BR500I 屬APC不斷電系統（UPS）產品。傑成系統有限公司（香港防盜）為APC產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。UPS 可為閉路電視錄影機、門禁控制器、網絡設備及伺服器提供後備電源，方案可參考Server Room 架設及維修。規格以原廠資料為準。
規格
主要規格
| Main input voltage | 230 V |
|---|---|
| Efficiency at full load | 168…280 V |
| Input frequency | 50/60 Hz +/- 3 Hz auto-sensing |
| Rated power in W | 300 W |
| Rated power in VA | 500 VA |
| Output connection | 3 IEC 60320 C13; 1 IEC 60320 C13 surge |
| Maximum configurable power in VA | 500 VA |
| Maximum configurable power in W | 300 W |
| Transfer time | 8 ms typical : 12 ms maximum |
| UPS topology | Line interactive |
| Waveform type | Stepped approximation to a sinewave |
| Output frequency | 50/60 Hz +/- 5 % sync to mains |
| Replacement battery | RBC2 |
補充規格
| Control panel | LED status display with on line : on battery : replace battery and overload indicators |
|---|---|
| Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
| Surge energy rating | 300 J |
| Number of rack unit | 0U |
| Number of cables | 1 |
| Color | Beige |
| Height | 16.5 cm |
| Width | 9.1 cm |
| Depth | 28.4 cm |
| Product weight | 5.89 kg |
| Mounting location | Front |
| Mounting preference | No preference |
| Mounting mode | Not rack-mountable |
| Two post mountable | 0 |
| USB compatible | No |
| Number of power module filled slots | 0 |
| Number of power module free slots | 0 |
| Redundant | No |
使用環境
| Product certification | A-Tick; C-Tick; CE; GOST; NEMKO |
|---|---|
| Equipment protection policy | Lifetime : 200000 AUD; Lifetime : 150000 euros; Lifetime : 75000 GBP |
| Ambient air temperature for operation | 0…40 °C |
| Acoustic level | 45 dBA |
電池及後備時間
| Battery type | Lead-acid battery |
|---|---|
| Extendable runtime | 0 |
| Included battery module | 0 |
| Empty battery slot | 0 |
| Typical recharge time | 8 h |
| RBC quantity | 1 |
| Battery life | 4…6 year(s) |
| Battery charging power | 9 W rated |
