描述

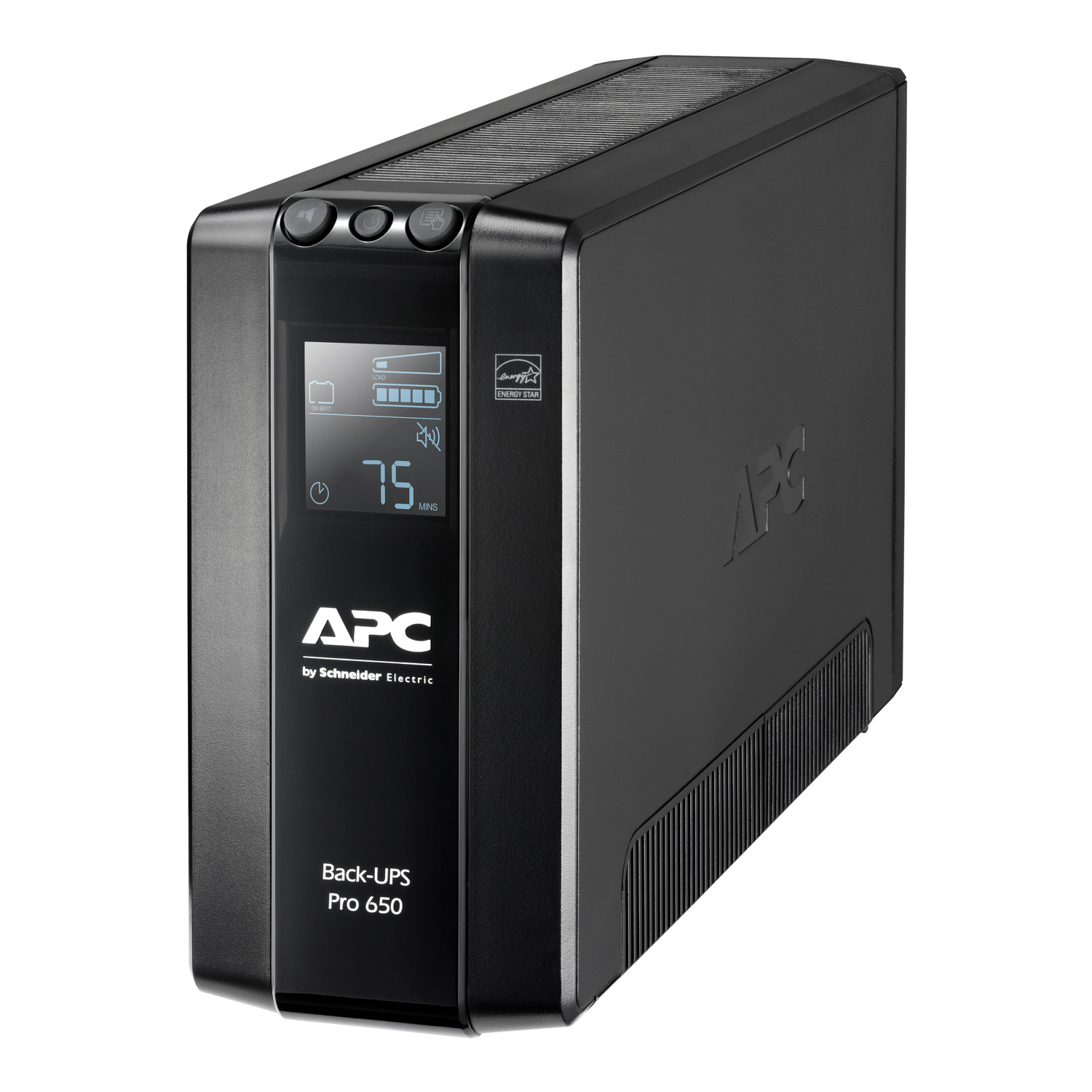

BR650MI
Back-UPS Pro, 650VA/390W, Tower, 230V
BR650MI 屬APC不斷電系統（UPS）產品。傑成系統有限公司（香港防盜）為APC產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。UPS 可為閉路電視錄影機、門禁控制器、網絡設備及伺服器提供後備電源，方案可參考Server Room 架設及維修。規格以原廠資料為準。
產品說明
This APC Back-UPS Pro offers premium power protection for high performance computer systems, routers/modems, external storage devices, game consoles and other electronics in your home or business. The 650VA tower UPS has 6 total outlets, 3 of which are battery back up and surge protection, and 3 that are surge protection only. It has a surge energy rating of 557 Joules. Its runtime at 100 Watts is 25 minutes. Its dimensions are 19 x 9.1 x 31 cm and 6.4 kg. The Back-UPS Pro family offers guaranteed power protection for high-performance computer systems, routers, external storage devices, game consoles, and other home and business electronics. This UPS has a 2-year warranty and CE product certification. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications.
規格
主要規格
| Main input voltage | 230 V AC 1 phase |
|---|---|
| Input connection | IEC 60320 C14 |
| Maximum input current | 10 A |
| Switching current capacity | 10 A |
| Efficiency at full load | 176…294 V |
| Input frequency | 50/60 Hz +/- 3 Hz auto-sensing |
| Output voltage | 230 V AC 1 phase |
| Rated power in W | 390 W |
| Rated power in VA | 650 VA |
| Output connection | 6 IEC 60320 C13 |
| Type of USB power supply | None |
| Maximum configurable power in VA | 650 VA |
| Maximum configurable power in W | 390 W |
| Transfer time | 10 ms typical : 12 ms maximum |
| UPS topology | Line interactive |
| Waveform type | Stepped approximation to a sinewave |
| Output frequency | 50/60 Hz +/- 1 Hz sync to mains |
| Replacement battery | APCRBC110 |
補充規格
| Battery capacity | 7.0 Ah |
|---|---|
| Battery type | Lead-acid internal included |
| Control panel | Multifunction LCD status and control console |
| Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
| UPS connectivity | USB port |
| Noise filtering | Full time multi-pole noise filtering : 10% of IEEE surge let-through : zero clamping response time: instantaneous |
| Height | 190 mm |
| Width | 91 mm |
| Depth | 310 mm |
| Product weight | 6.4 kg |
| Mounting preference | No preference |
| Mounting mode | Not rack-mountable |
| Two post mountable | 0 |
| USB compatible | Yes |
| Mounting mode | Tower |
| Number of power module filled slots | 0 |
| Number of power module free slots | 0 |
| Redundant | No |
| Range of product | Back-UPS Pro |
| Product or component type | Uninterruptible power supply (UPS) |
使用環境
| Product certification | A-Tick; C-Tick; CE; EAC; RCM; TISI |
|---|---|
| Marking | GS Mark |
| Standard | EN/IEC 62040-1:2019/A11:2021; EN/IEC 62040-2:2006/AC:2006; EN/IEC 62040-2:2018 |
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | -15…45 °C |
| Storage altitude | 0…15240 m |
| Relative humidity | 0…95 % |
| Storage relative humidity | 0…95 % |
| Acoustic level | 45 dBA |
| Heat dissipation | 13.3 Btu/h |
| Operating altitude | 0…10000 ft |
電池及後備時間
| Battery type | Lead-acid battery |
|---|---|
| Battery voltage | 12 V |
| Extendable runtime | 0 |
| Included battery module | 0 |
| Empty battery slot | 0 |
| Typical recharge time | 12 h |
| RBC quantity | 1 |
| Battery life | 3…5 year(s) |
| Battery charging power | 6 W rated |
