描述
SRTL3KRM1UINC

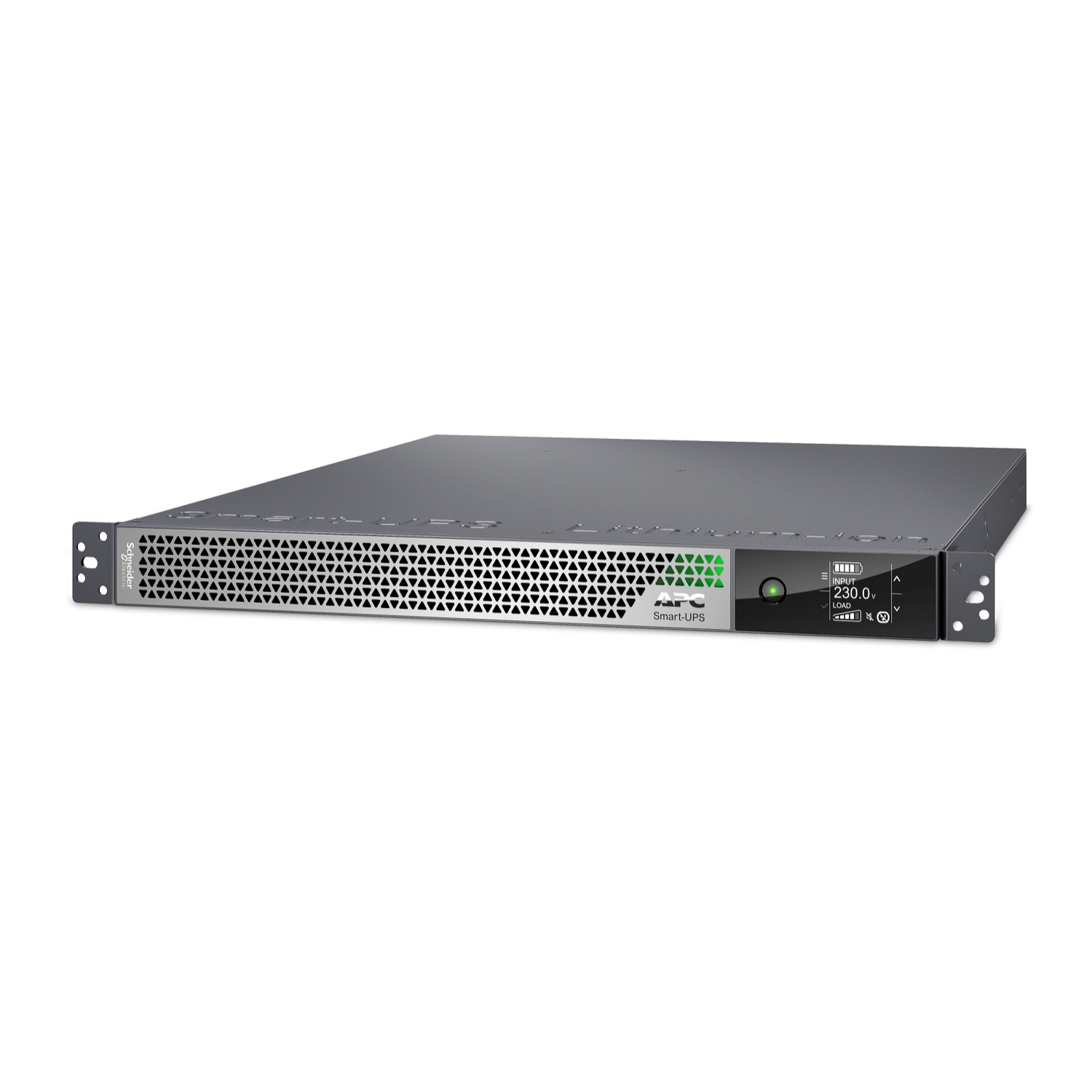

Smart-UPS Ultra On-Line, 3000VA, Lithium-ion, Rack/Tower 1U
SRTL3KRM1UINC 屬APC不斷電系統（UPS）產品。傑成系統有限公司（香港防盜）為APC產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。UPS 可為閉路電視錄影機、門禁控制器、網絡設備及伺服器提供後備電源，方案可參考Server Room 架設及維修。規格以原廠資料為準。
產品說明
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 3kVA on-line 1U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. The SRTL comes with IEC Inlet, 3x IEC C13 and 2x IEC C19 outlets. This Smart-UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Serial Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 5-year warranty on the UPS and Lithium-ion battery. The SRTL delivers clean power with zero transfer time for critical or sensitive devices. Ideal for servers, storage, voice/data networks, medical labs, and light industrial applications.
規格
主要規格
| Main input voltage | 230 V AC 1 phase |
|---|---|
| Other input voltage | 230 V |
| Input connection | BS 1363 British; IEC 60320 C20; CEE 7/7 |
| Cos phi | 1 |
| Efficiency at full load | 160…275 V adjustable (half load) |
| Input frequency | 50/60 Hz auto-sensing |
| Output voltage | 230 V AC 1 phase |
| Other output voltage | 230 V |
| Rated power in W | 3000 W |
| Rated power in VA | 3000 VA |
| Output connection | 3 IEC 60320 C13; 2 IEC 60320 C19 |
| Bypass type | Internal bypass (automatic and manual) |
| Crest factor | 3 : 1 |
| Maximum configurable power in VA | 3000 VA |
| Maximum configurable power in W | 3000 W |
| Output harmonic distortion | < 2% at 100% linear load and < 5% at 100% non-linear load |
| UPS topology | On-Line |
| Waveform type | Sine wave |
| Efficiency | 98 % |
| Output frequency | 50/60 Hz +/- 3 Hz sync to mains |
| Replacement battery | APCRBC173-LI |
補充規格
| Battery type | Li-Ion (Lithium-Ion) internal included |
|---|---|
| Control panel | Touch screen LCD user interface |
| Emergency power off | Yes |
| Free slot | 0 |
| Preinstalled device | Network management card with environmental monitoring |
| Alarm | Audible and visible alarms : prioritized by severity |
| UPS connectivity | Serial port; USB port; Embedded network management card 3 |
| Surge energy rating | 1600 J |
| Number of rack unit | 1U |
| Cable length | 2.4 m |
| Number of cables | 1 |
| Color | Silver grey |
| Height | 43 mm |
| Width | 432 mm |
| Depth | 560 mm |
| Product weight | 15.9 kg |
| Mounting preference | No preference |
| Mounting mode | Rack-mounted with kit; Tower-mounted with kit |
| Two post mountable | 1 |
| USB compatible | Yes |
| Mounting position | Horizontal; Vertical |
| Mounting mode | Rack/tower convertible with included kit |
| Provided equipment | RJ45 cable; USB cable; Safety guide; Rack mounting brackets; Stabilization feet; Screws |
| Additional specification | High density |
| Redundant | No |
| Range of product | Smart-UPS Ultra |
| Product or component type | Uninterruptible power supply (UPS) |
使用環境
| Product certification | CE; UKCA; UK PSTI |
|---|---|
| Marking | CE Mark; UKCA |
| Standard | EN/IEC 62040-1; EN/IEC 61000-4-8; EN/IEC 61000-4-2 level 3; EN/IEC 61000-4-3 level 3; EN/IEC 61000-4-6 level 3 |
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | -15…45 °C |
| Storage altitude | 0…15240 m |
| IP protection | IP20 |
| Relative humidity | 0…95 % non-condensing |
| Storage relative humidity | 0…95 % non-condensing |
| Acoustic level | 55 dB |
| Heat dissipation | 325 Btu/h |
| Operating altitude | 0…10000 ft |
電池及後備時間
| Battery type | Li-Ion (Lithium-Ion) |
|---|---|
| Battery voltage | 50 V |
| Extendable runtime | 1 |
| Typical recharge time | 1.5 h |
| RBC quantity | 1 |
| Battery design life | 8…10 year(s) |
| Battery life | 8…10 year(s) |
| Battery charging power | 448 W |
