描述

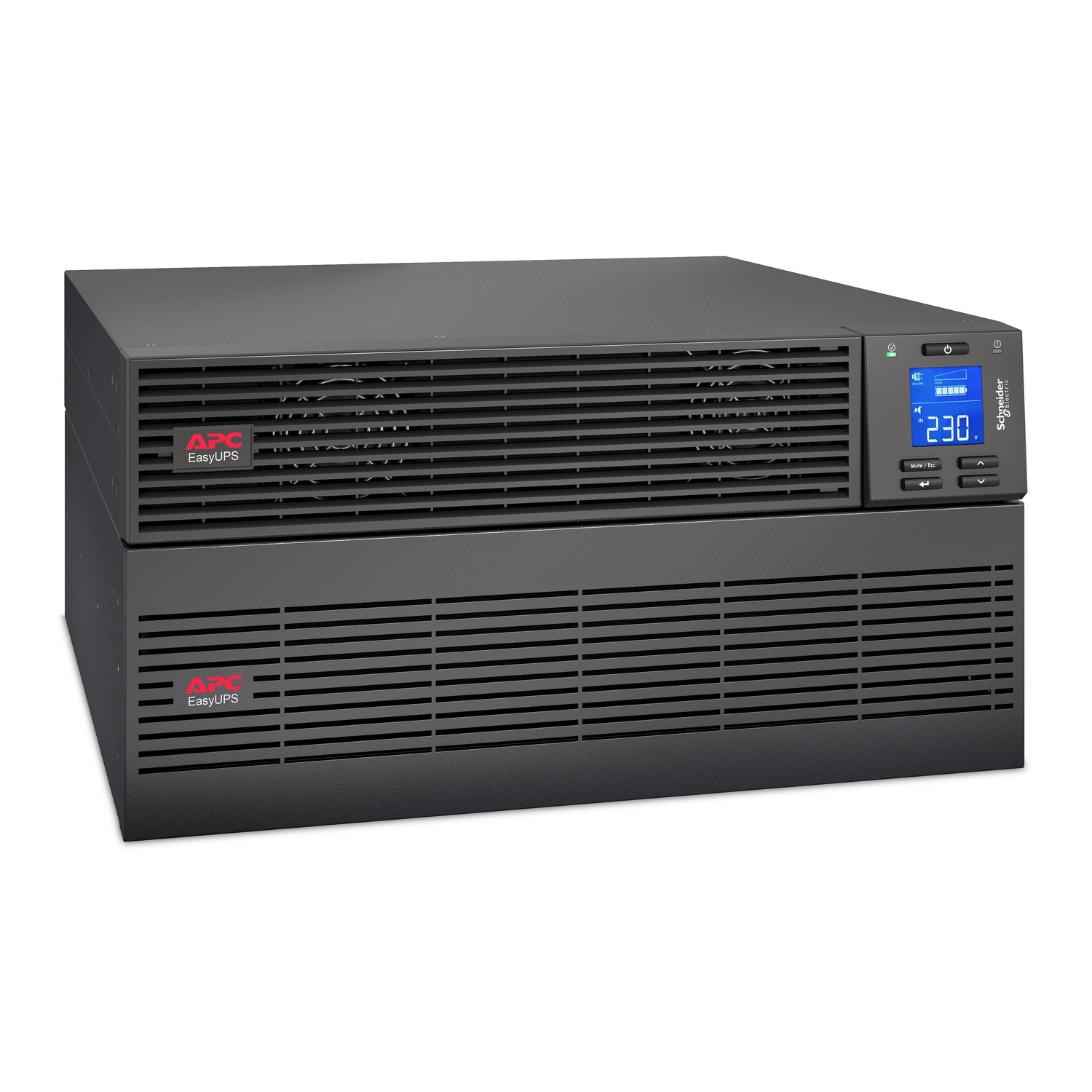

SRV3KRILX901
Easy UPS SRV RM 3000VA 230V with Battery no Railkit
SRV3KRILX901 屬APC不斷電系統（UPS）產品。傑成系統有限公司（香港防盜）為APC產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。UPS 可為閉路電視錄影機、門禁控制器、網絡設備及伺服器提供後備電源，方案可參考Server Room 架設及維修。規格以原廠資料為準。
規格
主要規格
| Main input voltage | 230 V AC 1 phase |
|---|---|
| Other input voltage | 220 V; 240 V |
| Output voltage | 230 V AC 1 phase |
| Other output voltage | 220 V; 240 V |
| Rated power in W | 2700 W |
| Rated power in VA | 3000 VA |
| Bypass type | Internal bypass (automatic and manual) |
| Crest factor | 3 : 1 |
| Harmonic distortion | 3 % |
| Maximum configurable power in VA | 3000 VA |
| Maximum configurable power in W | 2700 W |
| UPS topology | On-Line |
| Waveform type | Sine wave |
| Efficiency | 88 % (full load) |
補充規格
| Additional information | Configurable for 220 : 230 or 240 nominal output voltage |
|---|---|
| Battery type | Lead-acid external sold separately |
| Control panel | Multifunction LCD status and control console |
| Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
| UPS connectivity | Serial port; USB port; Available expansion slot |
| Surge energy rating | 600 J |
| Number of rack unit | 4U |
| Number of cables | 1 |
| Height | 217 mm |
| Width | 438 mm |
| Depth | 522 mm |
| Product weight | 52 kg |
| Mounting location | Front |
| Mounting preference | Lower |
| USB compatible | No |
| Mounting position | Horizontal |
| Mounting mode | Rack-mounted |
| Provided equipment | CD with software; User manual; USB cable |
| Number of power module filled slots | 0 |
| Number of power module free slots | 0 |
| Redundant | No |
| Range of product | Easy UPS On-Line |
| Product or component type | Uninterruptible power supply (UPS) |
使用環境
| Product certification | cTUVus; UL 1778; CE; IEC 62040-2; CB |
|---|---|
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | -20…50 °C |
| Storage altitude | 0…15000 m |
| Relative humidity | 0…95 % non condensing |
| Storage relative humidity | 0…95 % non condensing |
| Acoustic level | 50 dBA |
| Heat dissipation | 910 Btu/h |
| Operating altitude | 0…3000 m |
電池及後備時間
| Battery type | Lead-acid battery |
|---|---|
| Battery voltage | 72 V |
| Extendable runtime | 1 |
| Included battery module | 1 |
| Empty battery slot | 0 |
| Typical recharge time | 5.5 h |
| Battery design life | 3…5 year(s) |
| Battery charging power | 288 W rated |
| Battery power in VAh | 984 VAh runtime |
