描述
SURT2000XLICH

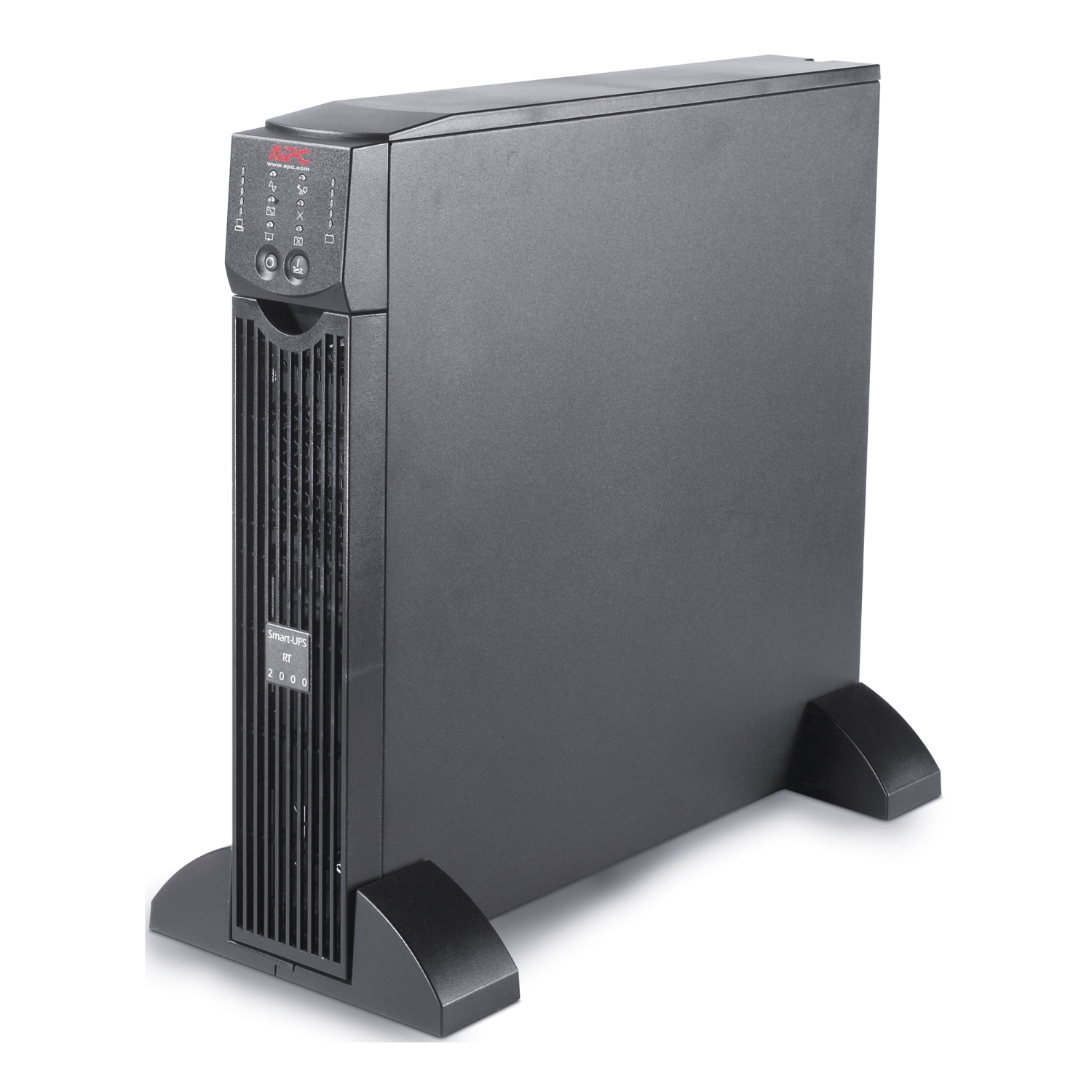

Smart-UPS RT 2000VA, 230V, rackmount w/kit, 2U
SURT2000XLICH 屬APC不斷電系統（UPS）產品。傑成系統有限公司（香港防盜）為APC產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。UPS 可為閉路電視錄影機、門禁控制器、網絡設備及伺服器提供後備電源，方案可參考Server Room 架設及維修。規格以原廠資料為準。
規格
主要規格
| Main input voltage | 230 V AC 1 phase |
|---|---|
| Other input voltage | 220 V; 240 V |
| Input connection | IEC 60320 C20 |
| Efficiency at full load | 160…280 V |
| Input frequency | 50/60 Hz +/- 5 Hz auto-sensing |
| Output voltage | 230 V 1 phase |
| Other output voltage | 220 V; 240 V |
| Rated power in W | 1400 W |
| Rated power in VA | 2000 VA |
| Output connection | 6 IEC 60320; 2 IEC Jumpers |
| Bypass type | Built-in bypass |
| Crest factor | 3 : 1 |
| Harmonic distortion | Less than 3 % |
| Maximum configurable power in VA | 2000 VA |
| Maximum configurable power in W | 1400 W |
| UPS topology | On-Line |
| Waveform type | Sine wave |
| Efficiency | 90 % (full load) |
| Output frequency | 50/60 Hz +/- 3 Hz user adjustable +/- 0.1 Hz sync to mains |
| Replacement battery | RBC31 |
補充規格
| Additional information | Configurable for 220 : 230 or 240 nominal output voltage |
|---|---|
| Battery type | Lead-acid internal included |
| Emergency power off | Optional |
| Free slot | 1 |
| Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
| UPS connectivity | Serial port; USB port |
| Surge energy rating | 420 J |
| Noise filtering | Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
| Number of rack unit | 2U |
| Number of cables | 1 |
| Color | Black |
| Height | 432 mm |
| Width | 85 mm |
| Depth | 483 mm |
| Product weight | 25 kg |
| Mounting location | Front |
| Mounting preference | Lower |
| Mounting mode | Rack-mounted with kit |
| Two post mountable | 0 |
| USB compatible | No |
| Mounting mode | Rack-mounted with included kit |
| Provided equipment | CD with software; Smart UPS signalling RS-232 cable; User manual |
| Number of power modules | 1400 |
| Number of power module filled slots | 0 |
| Number of power module free slots | 0 |
| Redundant | No |
| Range of product | Smart-UPS On-Line |
| Product or component type | Uninterruptible power supply (UPS) |
使用環境
| Product certification | C-Tick; CE; GOST; VDE |
|---|---|
| Standard | EN/IEC 62040-1:2019/A11:2021; EN/IEC 62040-2:2006/AC:2006; EN/IEC 62040-2:2018 |
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | -20…50 °C |
| Storage altitude | 0…15240 m |
| IP protection | IP20 |
| Relative humidity | 0…95 % non-condensing |
| Storage relative humidity | 0…95 % non-condensing |
| Acoustic level | 50 dBA |
| Heat dissipation | 543 Btu/h |
| Operating altitude | 0…10000 ft |
電池及後備時間
| Battery type | Lead-acid battery |
|---|---|
| Extendable runtime | 1 |
| Included battery module | 0 |
| Empty battery slot | 0 |
| Typical recharge time | 4 h |
| RBC quantity | 1 |
| Battery life | 3…5 year(s) |
| Battery charging power | 79 W rated |
