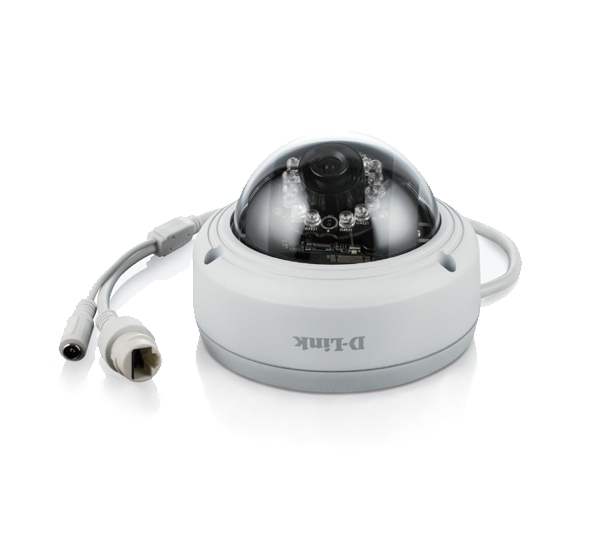

D-Link DCS-4602EV
Vigilance Full HD Outdoor Vandal-Proof PoE Dome Camera
Features
Exceptional Video Quality
• 1/3” megapixel progressive CMOS sensor
• HD resolution of 1920 x 1080
• Wide Dynamic Range image enhancement
• H.264, MJPEG codec support for streaming and recording
• Motion detection
• Privacy mask
• 3D filtering reduces noise in low-light environments
Outdoor Placement
• Built-in IR LED illuminator with a 20 meter range for use in dark areas
• Range of mounting options for flexible placement
• Rugged IP66 weatherproof housing
• IK10 vandal-proof housing to protect unit when mounted outdoors
Network
• 10/100 Fast Ethernet port
• Power over Ethernet (PoE) ensures easy and flexible integration into your network
Technical Specifications
Camera | |
Camera Hardware Profile | • 1/3” Megapixel progressive CMOS sensor • 20 meter IR illumination distance • Minimum illumination: • 1.0 lux / F2.0 (color) • 0.5 lux /F2.0 (B/W) • 0 lux / F2.0 (IR-LED on) • Built-in Infrared-Cut Removable (ICR) Filter module • 10x digital zoom • Minimum object distance 0.2M • Focal length: 2.8 mm • Aperture: F2.0 • Angle of view: • (H) 96° • (V) 54° • (D) 108° • Adjustment angle (non-motorized): • Vertical: 60° • Horizontal: 350° |
Camera Housing | • IP-66 compliant weatherproof housing • IK10 vandal-proof housing |
Image Features | • Configurable image size, quality, frame rate, and bit rate • Time stamp and text overlays • Configurable motion detection windows • Configurable privacy mask zones • Configurable shutter speed, brightness, saturation, contrast, sharpness, WDR, and 3D filter |
Video Compression | • Simultaneous H.264/MJPEG format compression • H.264/MJPEG multicast streaming • JPEG for still images |
Video Resolution | • 16:9 – 1920 x 1080, 1280 x 720, 800 x 448, 640 x 360, 480 x 272, 320 x 176 up to 30 fps • 4:3 – 1440 x 1080, 1280 x 960, 900 x 720, 800 x 592, 640 x 480, 480 x 352, 320 x 240 up to 30 fps |
External Device Interfaces | • 10/100 BASE-TX Fast Ethernet port • Supports 802.3af PoE Class 2 |
Network | |
Network Protocols | • IPv6 • IPv4 • ARP • TCP/IP • UDP • ICMP • DHCP client • NTP client (D-Link) • DNS client • DDNS client (D-Link) • SMTP client • FTP client • HTTP/HTTPS • Samba client • PPPoE • UPnP port forwarding • RTP/RTSP/RTCP • IP filtering • Multicast • CoS • QoS/DSCP • SNMP • ONVIF compliant |
Security | • Administrator and user group protection • Password authentication • HTTP and RTSP authentication |
General | |
Weight | • 525 g ± 5% |
Power | • Input: 100 to 240 V AC, 50/60 Hz • Output: 12 V DC 1.5 A |
Power Consumption | • 5.5 watts ± 5% (PoE) |
Temperature | • Operating: -30 to 50 °C (-22 to 124 °F) • Storage: -20 to 70 °C (-4 to 158 °F) |
Humidity | • Operating: 20% to 80% non-condensing • Storage: 5% to 95% non-condensing |
