描述

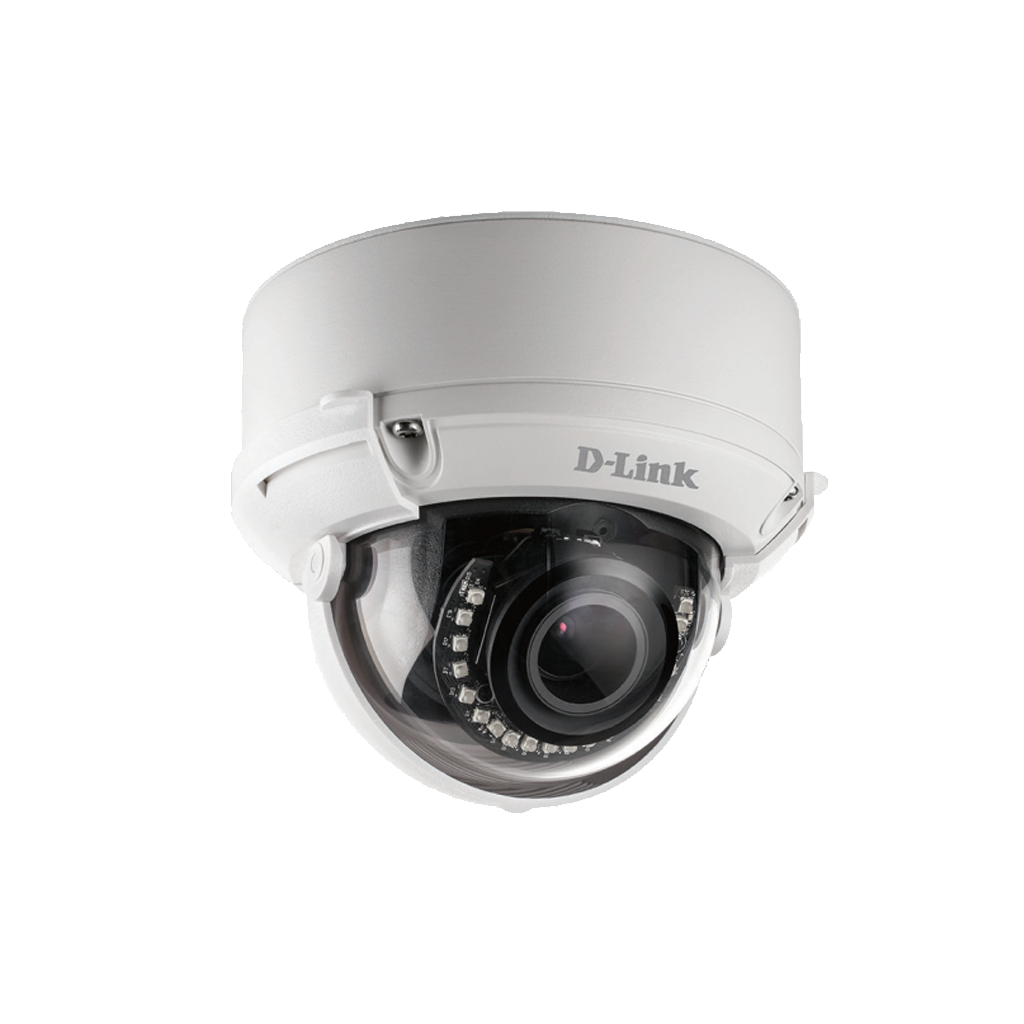

D-Link DCS-6511
Full HD WDR Day & Night Vandal-Proof Dome Network Camera
Features
Exceptional Video Quality
• 1/2.8” 2 megapixel progressive CMOS sensor
• 2.8 to 12 mm motorized varifocal lens
• Up to Full HD resolution of 1920 x1080 at 60 fps
• Remote Zoom and Focus
• P-Iris technology
• Wide Dynamic Range image enhancement
• H.264 and MJPEG codec support for streaming and recording
Outdoor placement
• Built-in Smart IR LED illuminator with a 20-meter range for use in dark areas
• Built-in heating and cooling ensure the camera can work in a range of climates from -40 to 50 °C
• Rugged IP67 weatherproof and IK10 certified vandal-proof housing
• Glare-reducing shield
Flexibility
• microSD card slot for onboard storage1
• 10/100/1000 Ethernet port with PoE ensures easy integration into your network
• Digital Input and Output for connections to external devices such as alarm relays
• Audio in and out connections for 2-way communication via a microphone and speaker
Technical Specifications
| Camera | |
| Camera Hardware Profile | • 1/2.8” 2 Megapixel progressive CMOS sensor • 20-meter Smart IR illumination distance • Minimum illumination: • Color (Day Mode), IR LEDs off: 0.1 lux / F1.4 • B/W (Night Mode), IR LEDs off: 0.008 lux / F1.4 • B/W (Night Mode), IR LEDs on: 0 lux / F1.4 • Built-in Infrared-Cut Removable (ICR) Filter module • 10x digital zoom • Minimum object distance: 0.5 m • 2.8 to 12 mm motorized P-Iris lens • Aperture: F1.4 • Angle of view (16:9) • (H) 33° to 108° • (V) 19° to 57° • (D) 39° to 134° • Angle of 3-Axis Gimbal • Pan 375° • Tilt 73° • Rotation 90° |
| Camera Housing | • IP67 compliant weatherproof housing • IK10 vandal-proof compliant |
| Image Features | • Configurable image size, quality, frame rate, and bit rate • Time stamp and text overlays • Configurable motion detection windows • Digital Image Stabilization (DIS) • Configurable privacy mask zones • Configurable shutter speed, brightness, saturation, contrast, sharpness, zoom, focus, and aperture |
| Video Compression | • Simultaneous H.264/MJPEG format compression • H.264 multicast streaming • JPEG for still images |
| Video Resolution | • 16:9 at 1920 x 1080,1280 x 720, 960 x 560, 640 x 360, 320 x 176 up to 60 fps, up to 30 fps with WDR on • 4:3 at 1280 x 960, 1024 x 768, 800 x 600, 640 x 480, 480 x 360, 320 x 240 up to 60 fps, up to 30 fps with WDR on |
| Audio Support | • G.711 • AAC |
| External Device Interface | • 10/100/1000BASE-TX Ethernet port with PoE (Class 3) • 1 DI, 1 DO • microSD card slot • Audio input/output |
| Network | |
| Network Protocols | • IPv6 • IPv4 • TCP/IP • UDP • ICMP • DHCP client • NTP client (D-Link) • DNS client • DDNS client (D-Link) • SMTP client • FTP client • HTTP / HTTPS • Samba client • PPPoE • UPnP port forwarding • RTP / RTSP/ RTCP • IP filtering • QoS • CoS • Multicast • ONVIF compliant • Bonjour • 802.1x • SNMP |
| Security | • Administrator and user group protection • Password authentication • HTTP and RTSP authentication |
| General | |
| Weight | • 0.95 kg with bracket and sunshield (2.09 pounds) |
| External Power Adapter | • Input: 100 to 240 V AC, 50/60 Hz • Output: 12 V 1.5 A |
| Power Consumption | • 10 watts ± 5 % |
| Temperature | • Operating: -40 to 50 °C (-40 to 122 °F) • Storage: -20 to 70° C (-4° to 158° F) |
| Humidity | • Operating: 20% to 80% non-condensing • Storage: 5% to 95% non-condensing |
