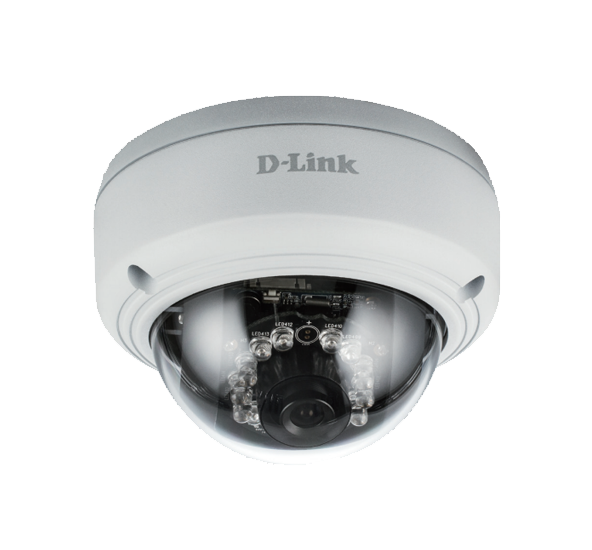

D-Link DCS-4603
Vigilance Full HD PoE Dome Camera
Features
Exceptional Video Quality
• 1/3” 3 megapixel progressive CMOS sensor
• Max. resolution of 2048 x 1536
• Wide Dynamic Range image enhancement
• H.264, MJPEG codec support for streaming and recording
• 3D filtering reduces noise in low-light environments
Versatile Placement
• Power over Ethernet (PoE) ensures easy and flexible integration into your network
• Built-in IR LED illuminator with a 10-meter range for use in dark areas
• Range of mounting options for flexible placement
Advanced
• Motion detection and notification for automated event recording
• Privacy mask blocks areas from unwanted recording
• 10/100 Fast Ethernet port
• ONVIF-certified for worldwide compatibility
Technical Specifications
| Camera | |
| Camera Hardware Profile | • 1/3” 3 Megapixel progressive CMOS sensor • Built-in Infrared-Cut Removable (ICR) filter module • Minimum illumination: • Color (Day Mode): 0.5 lux • B/W (Night Mode), IR LEDs off: 0.25 lux • B/W (Night Mode), IR LEDs on: 0 lux • IR illumination distance: 10 m • Focal length: 2.8 mm • Minimum object distance 0.2 m • Aperture: F2.0 • 10x digital zoom • Angle of view (16:9): • (H) 84° • (V) 48° • Adjustment angle (non-motorized): • Vertical: 340° • Horizontal: 60° • Rotation: 340° |
| Image Features | • Configurable image size, quality, frame rate, and bit rate • Time stamp and text overlays • Configurable motion detection windows • Configurable privacy mask zones • Configurable shutter speed, brightness, saturation, contrast, sharpness, WDR, and 3D filter |
| Video Compression | • Simultaneous H.264/MJPEG format compression • H.264/MJPEG multicast streaming • JPEG for still images |
| Video Resolution | • 16:9 • 1920 x 1080, 1280 x 720, 800 x 448, 640 x 360 up to 30 fps • 4:3 • 2048 x 1536 up to 15 fps • 1440 x 1080, 1280 x 960, 900 x 720, 800 x 592, 640 x 480 up to 30 fps |
| External Device Interfaces | • 10/100 BASE-TX Fast Ethernet port • Supports 802.3af PoE Class 2 |
| Network | |
| Network Protocols | • IPv6 • IPv4 • ARP • TCP/IP • UDP • ICMP • DHCP client • NTP client (D-Link) • DNS client • DDNS client (D-Link) • SMTP client • FTP client • HTTP/HTTPS • Samba client • PPPoE • UPnP port forwarding • RTP/RTSP/RTCP • IP filtering • Multicast • CoS • QoS/DSCP • SNMP • ONVIF compliant |
| Security | • Administrator and user group protection • Password authentication • HTTP and RTSP authentication |
| General | |
| Weight | • 385 g (13.58 ounces) ± 5% |
| External Power Adapter (not included) | • Input: 100 to 240 V AC, 50/60 Hz • Output: 12 V DC 1.5 A |
| Power Consumption | • 4.2 watts ± 5% |
| Temperature | • Operating: 0 to 40 °C (32 to 104 °F) • Storage: -20 to 70 °C (-4 to 158 °F) |
| Humidity | • Operating: 20% to 80% non-condensing • Storage: 5% to 95% non-condensing |
