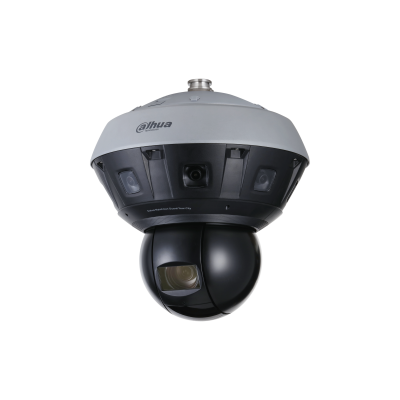

DAHUA PSDW81642M-A180-D440-S3
16 MP Multi-Sensor 180° Panoramic PTZ Hubble WizMind Network Camera
Specifications
Camera | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Sensor | Channel 1 (Panoramic): 1/1.8″ 4 Megapixel progressive CMOS Channel 2 (PTZ): 1/1.8″ 4 Megapixel progressive CMOS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Pixel | Channel 1 (Panoramic): 16 MP Channel 2 (PTZ): 4 MP | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. Resolution | Channel 1 (Panoramic): 5520 (H) × 2700 (V) Channel 2 (PTZ): 2560 (H) × 1440 (V) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
ROM | Channel 1 (Panoramic): 8 GB Channel 2 (PTZ): 8 GB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RAM | Channel 1 (Panoramic): 4 GB Channel 2 (PTZ): 2 GB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Scanning System | Progressive | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Min. Illumination | Channel 1 (Panoramic): 0.0005 lux@F1.0 (Color,30 IRE) 0.0001 lux@F1.0 (B/W,30 IRE) Channel 2 (PTZ): 0.001 lux@F1.4 (Color,30 IRE) 0.0005 lux @F1.4(B/W,30 IRE) 0 lux (Illuminator on) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
S/N Ratio | >56 dB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illumination Distance | Channel 1 (Panoramic): No Channel 2 (PTZ): ≥ 400 m (1312.34 ft) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illuminator On/Off Control | Auto; Manual; Zoomprio | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illuminator Number | Channel 1 (Panoramic): No Channel 2 (PTZ): 7 (IR LED) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Pan/Tilt/Rotation Range | Pan: 0° to 360° Tilt: –11° to 90° | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Built-in Battery | Channel 1 (Panoramic): Horizontal welding/lithium battery/3 V Channel 2 (PTZ): Horizontal welding/lithium battery/3 V | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens Type | Channel 1 (Panoramic): Fixed-focal Channel 2 (PTZ): Vari-focal | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens Mount | Channel 1 (Panoramic): M16 Channel 2 (PTZ): Module | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Focal Length | Channel 1 (Panoramic): 2.8 mm Channel 2 (PTZ): 5.5 mm–220 mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. Aperture | Channel 1 (Panoramic): F1.0 Channel 2 (PTZ): F1.4 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Field of View | Channel 1 (Panoramic): H: 180° V: 103° Channel 2 (PTZ): H: 2.2°–61.8° V: 1.3°–36.3° D: 2.4°–69.2° | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Iris Control | Channel 1 (Panoramic): No Channel 2 (PTZ): P-iris | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Close Focus Distance | Channel 1 (Panoramic): 1.4 m (4.59 ft) Channel 2 (PTZ): 0.5 m–2 m (1.64 ft–6.56 ft) (T to W) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
DORI Distance | Lens | Detect | Observe | Recognize | Identify | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
Channel 1 (Panoramic) | 57.9 m (189.96 ft) | 23.2 m (76.11 ft) | 11.6 m (38.06 ft) | 5.8 m (19.03 ft) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
Channel 2 (PTZ) | 3030 m (9940.94 ft) | 1204 m (3950.13 ft) | 606 m (1988.19 ft) | 303 m (994.10 ft) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
Smart Event | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
IVS | Channel 1 (Panoramic): Yes Channel 2 (PTZ): Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Intelligence | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Intelligence Description | Channel 1 (Panoramic): Perimeter protection, crowd map, vehicle density. Channel 2 (PTZ): Perimeter protection, video metadata, face recognition | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
IVS (Perimeter Protection) | Channel 1 (Panoramic): Tripwire; intrusion; parking detection Channel 2 (PTZ): Tripwire; intrusion; parking detection; crossing virtual fence, fast moving, abandoned object, missing object, crowd gathering, loitering detection | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Face Recognition | Channel 1 (Panoramic): No Channel 2 (PTZ): Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes (gender, age, glasses, expressions, mask, and beard) and 8 expressions (angry, sad, disgusted, scared, surprised, calm, happy, confused); face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot) Supports adding 5 group face databases; registering person one by one or in batches; setting face similarity; and supports face comparison with the face database containing up to 10,000 face pictures. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Vehicle Density | Channel 1 (Panoramic): Vehicle density; parking upper limit; traffic congestion alarm Channel 2 (PTZ): No | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Crowd Distribution Map | Channel 1 (Panoramic): Crowd map, global crowd density; crowd density in area; people counting in area Channel 2 (PTZ): No | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Metadata | Channel 1 (Panoramic): No Channel 2 (PTZ): Motor vehicle, non-motor vehicle, face, and human body detection; snapshot; snapshot optimization; optimal face snapshot upload. Motor vehicle attributes: License plate, plate color, vehicle type, vehicle color, vehicle logo, vehicle model/year, sun visor, seatbelt., smoking, calling, ornament, and annual inspection sticker. Non-motor vehicle attributes: Type, vehicle color, number of people, top type and color, and hat. Human body attributes: Top and bottom type and color, bag, hat, gender, and umbrella. Face attributes: Gender, age, expressions, glasses, face mask, and bread. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Smart Codec | Smart H.264+ Smart H.265+ | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Frame Rate | Channel 1 (Panoramic): Main stream:5520 × 2700 @(1–25/30 fps) sub stream:1920 × 940 @ (1–25/30 fps) third stream:4096 × 2064 @ (1–25/30 fps) Channel 2 (PTZ): Main stream: 2560 × 1440@ (1–25/30 fps) sub stream: 704 × 576@ (1–25/30 fps) third stream:1920 × 1080@ (1–25/30 fps) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Stream Capability | 3 streams | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Resolution | Channel 1 (Panoramic): Main stream: 5520 × 2700; 4600 × 2252; 3840 × 1880; 2880 × 1408 sub stream: 1920 × 940; 1280 × 620; 1024 × 496 third stream: 4096 × 2064; 2560 × 1252; 1366 × 668 Channel 2 (PTZ): Main stream: 2560 × 1440; 1920 × 1080; 1280 × 960; 1280 × 720 sub stream: 704 × 576; 640 × 480; 352 × 288 third stream: 1920 × 1080; 1280 × 960; 1280 × 720 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bit Rate Control | CBR/VBR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Bit Rate | Channel 1 (Panoramic): H.264: 96 kb/s–32768 kb/s; H.265: 38 kb/s–29588 kb/s; Channel 2 (PTZ): H.264: 32 kb/s–15872 kb/s H.265: 12 kb/s–9472 kb/s | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Day/Night | Channel 1 (Panoramic): No Channel 2 (PTZ): ICR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
BLC | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
HLC | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
WDR | Channel 1 (Panoramic): 120 dB Channel 2 (PTZ): 120 dB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
White Balance | Auto; natural; street lamp; outdoor; manual; regional custom | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gain Control | Auto; Manual | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Noise Reduction | 3D NR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Motion Detection | OFF/ON (4 areas, rectangular) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Default Bit Rate with Default Resolution | Channel 1 (Panoramic): 6144 kb/s (5520 × 2700) Channel 2 (PTZ): 6144 kb/s (2560 × 1440) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Region of Interest (RoI) | Channel 1 (Panoramic): Yes (4 areas) Channel 2 (PTZ): Yes (8 areas) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Stabilization | Channel 1 (Panoramic): No Channel 2 (PTZ): No | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Defog | Channel 1 (Panoramic): No Channel 2 (PTZ): Optical defog | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Privacy Masking | Channel 1 (Panoramic): 4 areas Channel 2 (PTZ): 24 areas (8 for each preset) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
LDC | Channel 1 (Panoramic): Yes Channel 2 (PTZ): No | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Language | English; Italian; Spanish; Russian; French; German; Portuguese; Polish; Korean; Czech; Dutch; Arabic; European Spanish | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Compression | PCM; G.711a; G.711Mu; G.726; G.723, G.711a by default | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Sampling | 8 kHz; 16 kHz; 32 kHz; 48 kHz; 64 kHz | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Event | Channel 1 (Panoramic): External alarm; No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; voltage detection; motion detection; video tampering; scene changing; audio detection; intensity change; tripwire; intrusion; parking detection; crowd density; traffic congestion; parking upper limit Channel 2 (PTZ): Tripwire; intrusion; parking detection;crossing virtual fence, fast moving, abandoned object, missing object, crowd gathering, loitering detection; face recognition; video metadata | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network Port | RJ-45 (10/100/1000 Base-T) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SDK and API | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Cyber Security | Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Interoperability | ONVIF (Profile S/Profile G/ Profile T); CGI | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
User/Host | 20 (Total bandwidth: 400 M) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage | FTP; SFTP; Micro SD card (support max. 512 GB); NAS; SMB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Browser | IE: IE11 Chrome Firefox | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Management Software | SmartPSS Lite; DSS; | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
PTZ | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Pan/Tilt Range | Pan: 0° to 360° endless Tilt: –11° to 90°, auto flip 180° | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Manual Control Speed | Pan: 240°/s Tilt: 100°/s | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Telephoto Speed Limit | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Positioning Accuracy | Pan: 0.1° Tilt: 0.1° | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Positioning Accuracy Automatic Calibration | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Remote Lens Reset | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Remote PTZ Reset | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Preset | 300 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Tour | 8 (up to 32 presets per tour) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Pattern | 5 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Scan | 5 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power-off Memory | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Idle Motion | Preset; Pattern; Tour; Scan | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Time Task | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
3D Positioning | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
PTZ Limit | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Position Display | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Information Display | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Time Display | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
PTZ Restart | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certification | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certifications | CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B; UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Port | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
USB | NA | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RS-485 | 1 (baud rate range: 1200 bps–115200 bps) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Optical Module Specification | SFP optical module, single mode, single fiber 20 KmTX-1310 nm/RX-1550 nm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Optical Fiber | FC | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Optical Fiber Module Type | Gigabit SFP optical module, single mode, single fiber TX-1550 nm/RX-1310 nm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
HDMI | NA | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Input | 2 channels (terminal) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Output | 2 channels (terminal) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Input | 7 channels in: 5mA 3V–5V DC | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Output | 3 channels out: 1,000mA 30V DC/500mA 50V AC | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Analog Output | 1 channel (CVBS output: BNC) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Voltage | 36 VDC (±50%) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply | 36 VDC | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Consumption | Basic: 59 W (36 VDC) Max. (Basic power consumption + WDR + intelligence on + IR on + PTZ operation ): 99 W (36 VDC) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Environment | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature | –40 °C to +70 °C (–40 °F to +158 °F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Humidity | ≤95% | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Temperature | –40 °C to +70 °C (–40°F to +158°F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Humidity | ≤95% | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Protection | IP66 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Structure | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Casing | Metal + plastic | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Product Dimensions | Φ383 mm × 462 mm (15.08″ × Φ18.19″) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Packaging Dimensions | 500 mm × 500 mm × 658 mm (19.69″ × 19.69″ × 25.91″) (L × W × H) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Net Weight | 14.4 kg (31.75 lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight | 20.3 kg (44.75 lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Installation | Wall mount; ceiling mount; pole mount | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Adapter | Included | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens | Included | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Output | 12 VDC power output, max. current 165 mA, peak current 700 mA | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Others | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Calibration | Manual/Auto |
