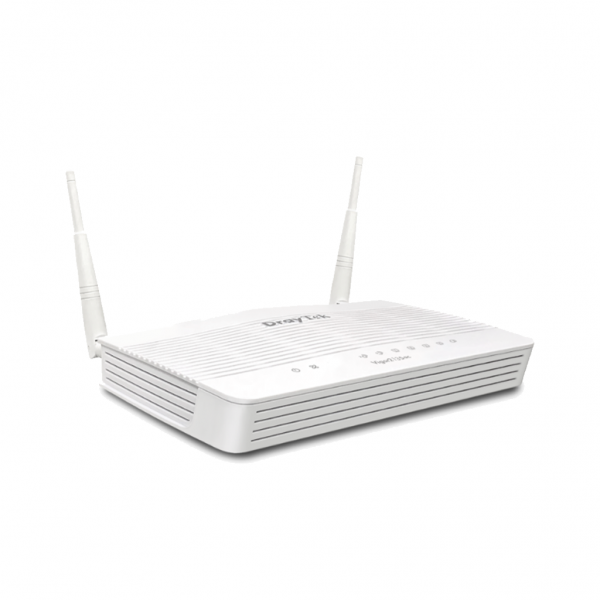

DrayTek Vigor2135 Series
Gigabit Broadband Single-WAN Router for Home/SOHO
Features
- VPN (Virtual Private Network)
- Firewall & Content Filter
- SSL VPN
- Hotspot Web Portal
- VPN Matcher
- Central AP Management
- Bandwidth Management
- WiFi 6 (ax model only)
- VoIP Friendly
- Mesh (Wireless model only)
- DrayDDNS
Specifications
| Performance | |
| NAT Session | 50K |
| Max. NAT (Mbps) | 600 |
| Max. NAT with Hardware Acceleration (Mbps) | 940 |
| Networking | |
| Routing |
IPv4 Static Route
IPv6 Static Route
Policy Route
Inter-VLAN Route
RIP v1/v2
|
| Policy-based Routing |
Protocol
IP Address
Port
Domain
Country
|
| DNS Security (DNSSEC) | √ |
| IGMP |
IGMP v2/v3
IGMP Proxy
IGMP Snooping & Fast Leave
|
| SMB File Sharing (Requires external storage) | √ |
| Physical | |
| Power Input | 2135: DC 12V @ 1A 2135ac: DC 12V @ 1.5A 2135ax: DC 12V @ 2A 2135FVac: DC 12V @ 1.6A 2135Vac: DC 12V @ 1.5A |
| Max. Power Consumption (watts) | 2135: 11.6 2135ac: 16 2135ax: 23.6 2135FVac: 19 2135Vac: 18 |
| Dimension (mm) | 2135: 207 x 131 x 42 2135ac: 207 x 131 x 42 2135ax: 194 x 155 x 50 2135FVac: 207 x 131 x 42 2135Vac: 207 x 131 x 42 |
| Operating Temperature | 0 to 45°C |
| Storage Temperature | -25 to 70°C |
| Operating Humidity (non-condensing) | 10 to 90% |
