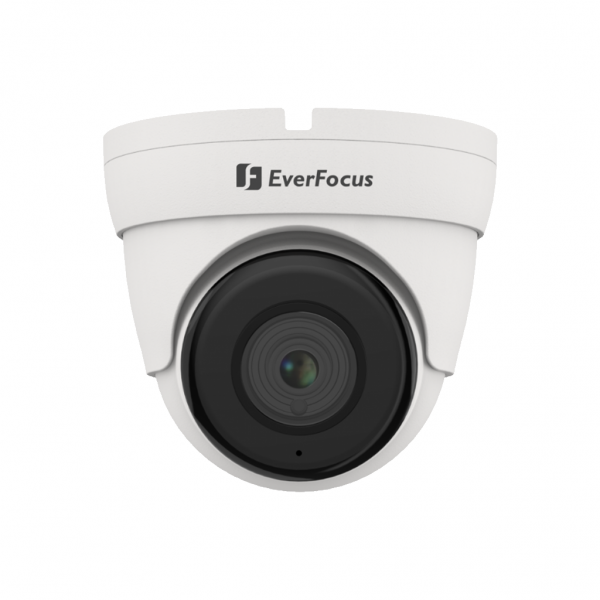

EverFocus EBA1241
2-Megapixel True Day/Night Outdoor IR Ball Camera
Features
• 1080p Full HD CMOS sensor, with high flexibility and performance for astounding image
• 2.8mm fixed lens with ICR to capture the desired field of view
• Extended IR range of up to 20m / 66ft.
• D-WDR to improve the visibility under high contrast scene
• The flexible angle viewing with its 3-Axis rotation design allows wall or ceiling mounting
• IP66-rated with metal housing
• Built-in Microphone (Audio over Coax)
• Supports UTC function: Control camera OSD settings directly from DVR end
Specifications
Pickup Device | 1/3”,2.0Megapixel,Progressive scan, CMOS |
System Format | NTSC / PAL (switchable via OSD) |
Effective Pixels | 1920 (H) x 1080 (V) |
Scanning System | Progressive Scan |
Electronic Shutter | 1/30s ~ 1/30000s |
Gamma Correction | Supported 0.45 |
Lens Type | 2.8mm lens with ICR, F2.0 |
FOV (D x H x V) | 104.37° x 88.24° x 48.71° |
BLC | Level/Area/Default/Return |
AGC | High/Middle/Low |
White Balance | Auto |
Sync. Mode | Internal |
Day / Night | IR Cut Filter with auto switch (Auto/Color/B&W) |
UTC Function | Supported |
IR LEDS | 18 Units |
IR Distance | Up to 20m / 66ft. |
Video Format | AHD / TVI / CVI / CVBS |
S/N Ratio | ≥36dB |
OSD Languages | English |
DNR | Level 1-9 |
DWDR | Off/On |
Frame Rate | 50Hz: 25fps/1920*1080; 60Hz: 30fps/1920*1080 |
Mirror / Flip | Off / On (V-Flip /Rotate) |
Motion Detection | Supported |
Privacy Mask | Supported |
Environmental | IP66 Weather Resistant |
Power Source | 12VDC |
Max. Power Consumption | IR Off ≤0.5W, IR On ≤3.5W |
Operating | -20°C ~ 50°C / -4°F ~ 122°F |
Humidity | Less than 90% |
Dimensions | Ø 100mm x 90mm |
Weight | 391g / 0.86lb |
Minimum Illumination | Color 0.08lux @ F2.0(AGC ON) ; B/W 0 lux @ IR ON |
