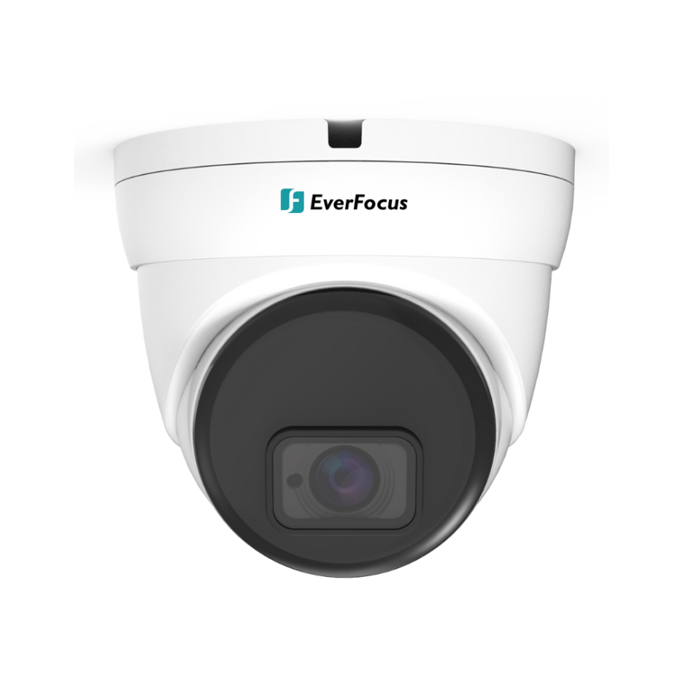

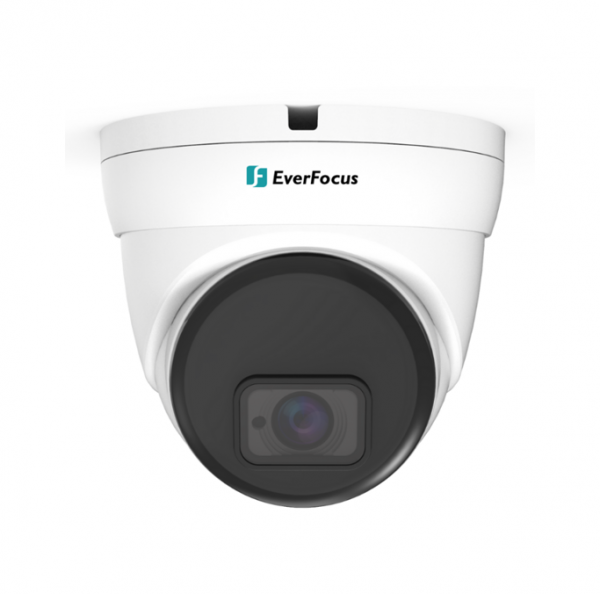

EverFocus EBN2840-SG (NDAA)
8-Megapixel IR & WDR, Outdoor Ball Network Camera
Features
• 8MP Progressive scan CMOS sensor
• Equipped with 3.6mm fixed lens
• Triple-streaming from H.265 / H.264
• Supports 3D DNR (Digital Noise Reduction)
• Provides True Day/Night functionality with automatic IR filter operation
• Extended IR range up to 30m / 98ft.
• Support video analytics
• Supports ONVIF
• Weather-proof IP66 rated
• Supports PoE and 12VDC
Specifications
| Pickup Device | 1/2.8″, 8.0 megapixel, progressive scan, CMOS |
| Lens | 3.6mm, fixed lens, F No.1.6±10% |
| FOV | Horizontal: 88°, Vertical: 44°, Diagonal: 106° |
| Minimum Illumination | Color 0.1lux @ F1.2(AGC ON) ; B/W 0 lux @ IR ON |
| Day/Night | IR cut filter with auto switch（Day/Night/Auto/Schedule） |
| Shutter | 1/5 ~ 1/20000s |
| Video Compression | H.265/H.264 |
| Frame Rate | Main Stream 8MP(3840×2160),5MP(2592×1944,3072×1728), 4MP(2592×1520),3MP(2304×1296),1080P(1920×1080), 960P(1280*960),720P(1280×720), Sub Stream 720P(1280×720),VGA(640×480),QVGA(320×240) Mobile Stream VGA(640×480), QVGA（320×240） |
| S/N Ratio | ≥ 50db (AGC Off) |
| WDR | WDR(120db) |
| Audio | Built-in microphone |
| SD Card Slot | Micro SD slot, up to 256GB |
| Alarm Input / Output | NA |
| Reset Button | Supported |
| Supported Protocols | TCP/IP,HTTP,DHCP,DNS,DDNS,RTP/RTSP,SMTP,NTP,UPnP,SNMP,HTTPS,FTP |
| Video Analytics | Supported |
| Power Supply | DC 12V±25%, PoE (IEEE 802.3af) |
| Humidity | less than ≤ 95% RH |
| Operating Temperature | -30°C ~ 55°C / -22°F ~ 131°F |
| Dimensions (Φ) x (H) | Ø100x90mm |
| Weight | appr 420g |
| Weather Resistance | IP66 |
