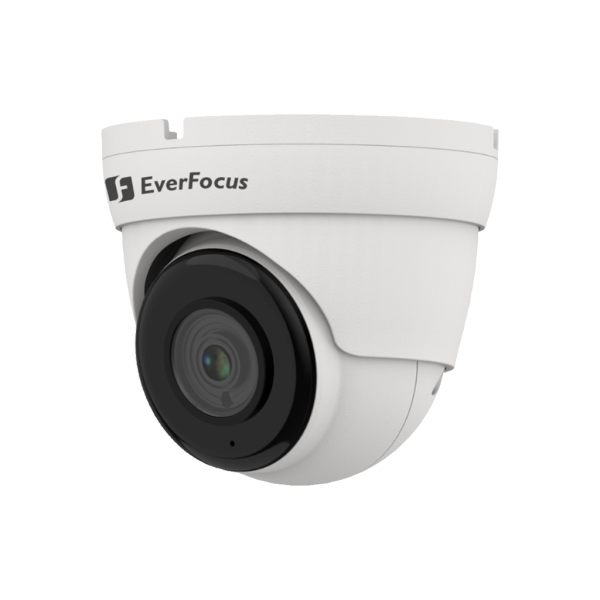

EverFocus EBA1541
5-Megapixel True Day/Night Outdoor IR Ball Camera
Features
• 5Mp CMOS sensor, with high flexibility and performance for astounding image
• 2.8mm fixed lens with ICR to capture the desired field of view
• Extended IR range of up to 20m / 66ft.
• The flexible angle viewing with its 3-Axis rotation design allows wall or ceiling mounting
• IP66-rated with metal housing
• Built-in Microphone (Audio over Coax)
• Supports UTC function: Control camera OSD settings directly from DVR end
Specifications
| Pickup Device | 1/2.7” Progressive scan, CMOS |
| System Format | NTSC / PAL (switchable via OSD) |
| Effective Pixels | 2608 (H) x 1960 (V) |
| Scanning System | Progressive Scan |
| Electronic Shutter | 1/30s ~ 1/30000s |
| Gamma Correction | Supported 0.45 |
| Lens Type | 2.8mm lens with ICR, F1.6 |
| FOV (D x H x V) | 134° x 58.8° x 111.4° |
| BLC | Level/Area/Default/Return |
| AGC | Height/Middle/Low |
| White Balance | Auto |
| Sync. Mode | Internal |
| Day / Night | IR Cut Filter with auto switch (Auto/Color/B&W) |
| UTC Function | Supported |
| IR LEDS | 18 Units |
| IR Distance | Up to 20m / 66ft. |
| Video Format | AHD / TVI / CVI / CVBS *CVBS only support PAL |
| S/N Ratio | ≥39dB |
| OSD Languages | English |
| DNR | Level 1-9 |
| DWDR | N/A |
| Frame Rate | 5MP@ 20fps; 50Hz: 25fps/1920*1080; 25fps/4MP 60Hz: 30fps/1920*1080; 30fps/4MP |
| Mirror / Flip | Off / On (V-Flip /Rotate) |
| Motion Detection | Supported |
| Privacy Mask | Supported |
| Environmental | IP66 Weather Resistant |
| Power Source | 12VDC |
| Max. Power Consumption | IR Off ≤1W, IR On ≤4W |
| Operating | -20°C ~ 50°C / -4°F ~ 122°F |
| Humidity | Less than 90% |
| Dimensions | Ø 100mm x 90mm |
| Weight | 391g / 0.86lb |
| Minimum Illumination | Color 0.08lux @ F2.0(AGC ON) ; B/W 0 lux @ IR ON |
