EverFocus EHNU240

描述

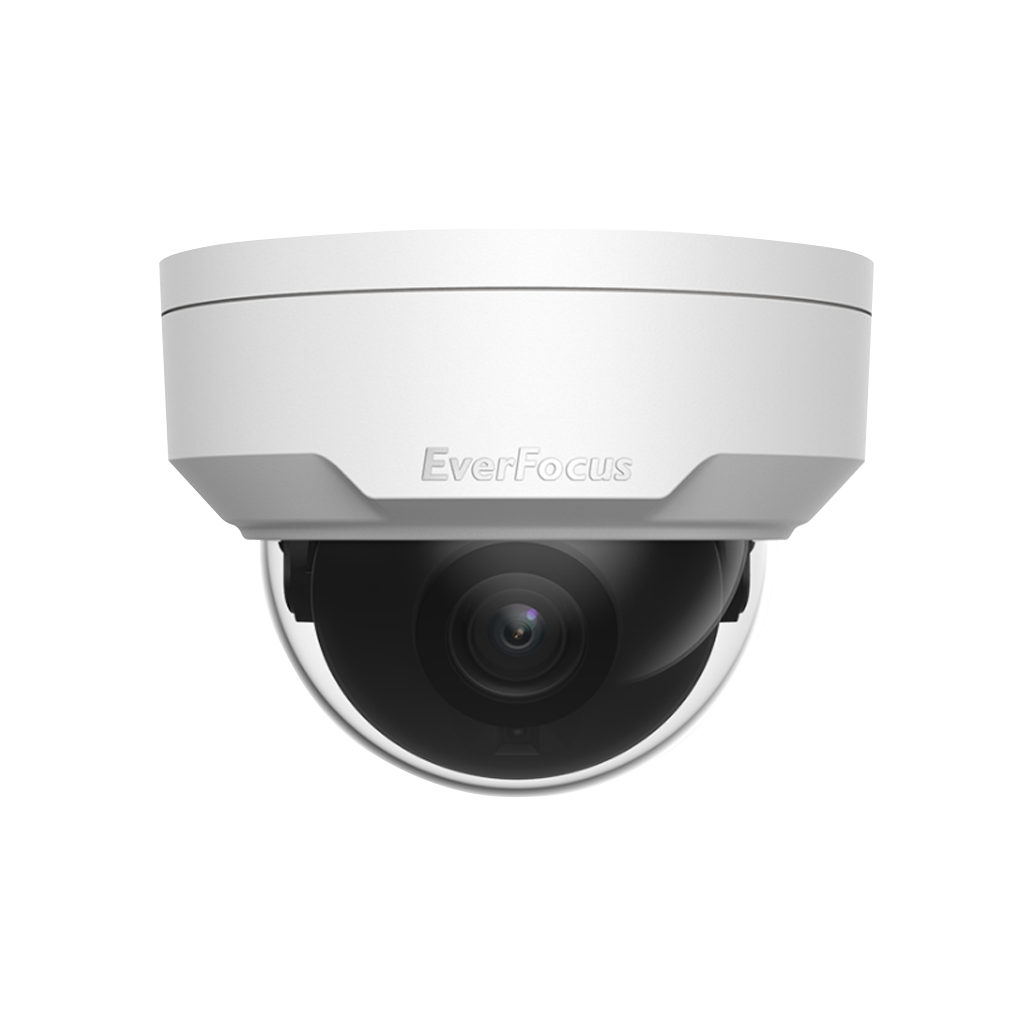

EverFocus EHNU240

2MP HD Intelligent LightHunter IR Fixed Dome Network Camera



Features

• High quality imaging with 2MP, 1/2.8″CMOS senso
• 2MP (1920*1080)@30/25fps; 720P (1280*720)@30/25fps
• Ultra 265, H.265, H.264, MJPEG
• Smart intrusion prevention, include cross line, intrusion, enter area, leave area detection
• Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights
etc. Accurately focus on human and, motor vehicle and non-motor vehicle
• Intelligent face capture
• LightHunter technology ensures ultra-high image quality in low illumination environment
• 120dB true WDR technology enables clear image in strong light scene
• Support 9:16 Corridor Mode
• Alarm:1 in/1 out, Audio: 1 in/1 out
• Smart IR, up to 30m (98ft) IR distance
• Supports 256 G Micro SD card
• IK10 vandal resistant
• IP67 protection
• Support PoE power supply



Specifications

Sensor1/2.8″,2.0 megapixel, progressive scan, CMOS
Lens4.0mm@F1.6
DORI DistanceLens (mm) 2.8/4.0 / Detect (m) 43.4/62.1 / Observe (m) 17.4/24.8 / Recognize (m)8.7/12.4 / Identify (m) 4.3/6.2
Angle of View (H)87.5°
Angle of View (V)46.3°
Angle of View (O)92.4°
Adjustment anglePan: 3° ~ 360° / Tilt: 0° ~ 68° / Rotate: 3° ~ 360°
ShutterAuto/Manual, 1 ~ 1/100000s
Minimum IlluminationColor: 0.001Lux (F1.6, AGC ON) B/W: 0Lux with IR on
Day/NightIR-cut filter with auto switch (ICR)
Digital Noise Reduction2D/3D DNR
S/N>52dB
IR RangeUp to 30m (98ft) IR range
Wavelength850mm
IR On/Off ControlAuto/Manual
DefogDigital Defog
WDR120db
Video CompressionH.265, H.264, MJPEG
H.264 code profileBaseline profile, Main profile, High profile
Frame RateMain Stream: 2MP (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; SubStream:720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Video Bit Rate128 Kbps~16 Mbps
OSDUp to 8 OSDs
Privacy MaskUp to 4 areas
ROIUp to 8 areas
White BalanceAuto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital Noise Reduction2D/3D DNR
Smart IRSupported
FlipNormal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
DewarpingN / A
HLCSupported
BLCSupported
Audio CompressionG.711
Two way AudioSupported
SuppressionSupported
Sampling Rate8KHZ
Edge StorageMicro SD, up to 256GB
Network StorageANR,NAS (NFS)
Smart intrusion preventionSupport false alarm filtering: Line crossing detection, Intrusion detection, Region entrance detection, Region exit detection
Face captureSupported
Statistical AnalysisPeople counting
Basic DetectionMotion detection, tampering alarm, audio detection
General FunctionWatermark, IP address filtering, alarm input, alarm output, access policy, ARP protection, RTSP authentication, user authentication
ProtocolsIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
Compatible IntegrationONVIF (Profile S, Profile G, Profile T), API
ClientEZStation / EZView / EZLive
Web BrowserPlug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below / Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+
Audio I/O1 Input: impedance 35kΩ; amplitude 2V [p-p] / 1 Output: impedance 600Ω; amplitude 2V [p-p]
Alarm I/O1 / 1
Network1 RJ45 10M/100M Base-TX Ethernet
PowerDC 12V±25 , PoE (IEEE 802.3af), Power consumption: Max 5.0W
Dimensions (Ø x H)Φ108.7 x 81.1mm (Ø4.3” x 3.2”)
Weight0.42kg (0.93lb)
MaterialMetal
Working Environment-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Storage Environment-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Surge Protection4KV
Ingress ProtectionIP67
Vandal resistantIK10
Reset buttonN / A
