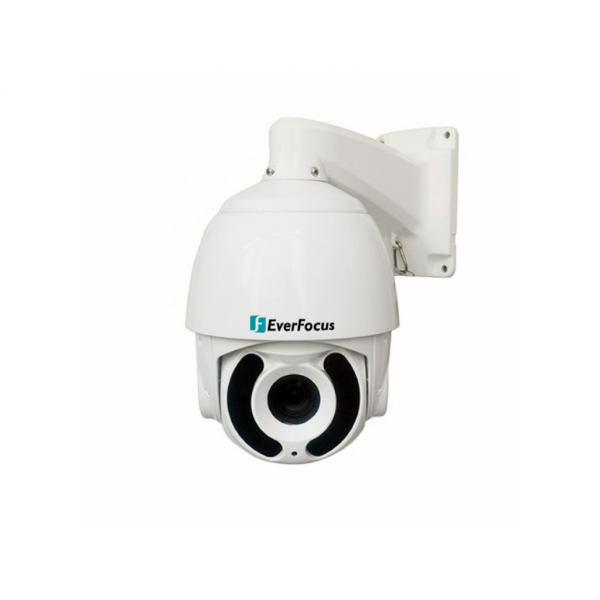

EverFocus EPA6236
36x Optical Zoom Lens Supports UTC & RS-485 communication
Features
• AHD 1080p Sony CMOS sensor
• 36x Optical Zoom Lens
• Supports UTC & RS-485 communication
• True day/Night (IR-cut filter removable)
• Supports D-WDR
• Supports 220 preset positions
• Supports 8 tours (16 positions each tour)
• IP66-rated with metal housing
• Supports OSD menu
Specifications
| Pickup Device | 1/2.7″ Sony CMOS sensor |
| System Format | NTSC / PAL switchable |
| Effective Pixels | 1920 (H) x 1080 (V) |
| Lens Type | 36x optical zoom, 4.6~165mm |
| BLC | On / Off |
| AGC | Auto |
| White Balance | Auto |
| Day / Night | Supported |
| UTC Function | Supported |
| IR Distance | 150m / 492ft. |
| Video Format | AHD / TVI / CVI / CVBS switchable |
| S/N Ratio | ≥50dB |
| OSD Languages | Supported |
| DWDR | Auto |
| Motion Detection | Not supported |
| Privacy Mask | Not supported |
| Environmental | IP66 |
| Power Source | 12VDC, 4A / 24VAC~, 3A |
| Max. Power Consumption | ≤ 25W |
| Operating | -40°C ~ 60°C ≤ 95% / -40°F ~ 140°F ≤ 95% |
| Humidity | ≤ 95% |
| Dimensions | 310 x 310 x 440mm / 12.2” x 12.2” x 17.32” |
| Weight | 12VDC: 6.1kg / 13.45lb 24VAC~: 7.15kg / 15.76lb |
| Minimum Illumination | Color: 0.01Lux ; B/W: 0.001Lux |
| Video Output | 1Vp-p, 75Ω |
| Alarm Input / Output | Not supported |
| IR LED | 8 units |
| IR Distance | 150m / 492ft. |
