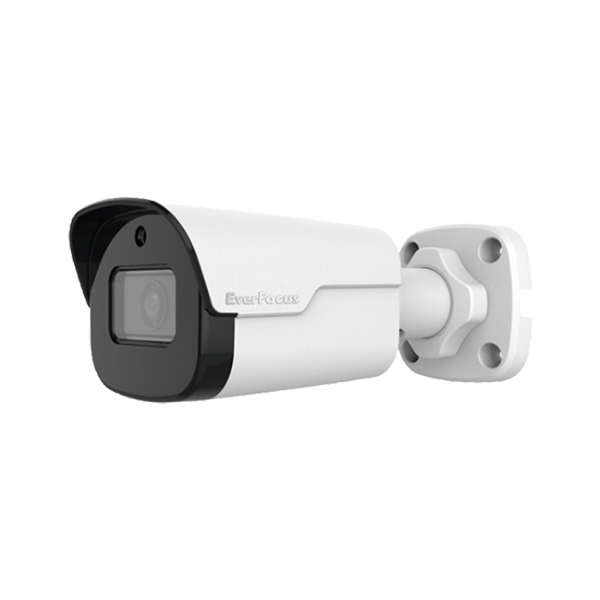

EverFocus EZNU540
5MP HD Intelligent Lighthunter IR Fixed Bullet Network Camera
Features
• High quality image with 5MP, 1/2.7″CMOS sensor
• 5MP (2880*1620)@ 30/25fps; 4MP (2560*1440)@ 30/25fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps
• Ultra 265, H.265, H.264, MJPEG
• Smart intrusion prevention, include cross line, intrusion, enter area, leave area detection
• Based on target classification, smart intrusion prevention, significantly reduce false alarm caused by leaves, birds and lights etc, accurately focus on human and, motor vehicle and non-motor vehicle
• Intelligent face capture、Intelligent People Flow Counting and Crowd Density Monitoring
• LightHunter technology ensures ultra-high image quality in low illumination environment
• 120dB true WDR technology enables clear image in strong light scene
• Support 9:16 Corridor Mode
• Built-in Mic
• Smart IR, up to 40m (131ft) IR distance
• Supports 256 G Micro SD card
• IP67 protection
• Support PoE power supply
Specifications
| Sensor | 1/2. 7 “, 5.0 megapixel, progressive scan, CMOS |
| Lens | 4.0 mm@F 1.6 |
| DORI Distance | Lens (m) 2.8/4.0, Detect (m) 63/90, Observe (m) 25.2/36, Recognize (m) 12.6/18, Identify (m) 6.3/9 |
| Angle of View (H) | 78.7° |
| Angle of View (V) | 44.9° |
| Angle of View (O) | 89.2° |
| Adjustment angle | Pan : 0°~360°, Tilt : 0°~90°, Rotate : 0°~360° |
| Shutter | Auto/Manual , 1 ~ 1/100000s |
| Minimum Illumination | Color : 0.0 01 Lux (F 1.6 , AGC / B/W : 0Lux with IR on |
| Day/Night | IR cut filter with auto switch (ICR) |
| Digital Noise Reduction | 2D / 3D DNR |
| S/N | >56 dB |
| IR Range | Up to 4 0m ( 131 ft) IR range |
| Wavelength | 850mm |
| IR On/Off Control | Auto/Manual |
| Defog | Digital Defog |
| WDR | 120db |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 code profile | Baseline profile, Main profile, High profile |
| Frame Rate | Main Stream:5MP ( 2880 1620 ), Max 30fps; 4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps |
| Video Bit Rate | 128 Kbps~16 Mbps |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 4 areas |
| ROI | Up to 8 areas |
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Smart IR | Supported |
| Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti clockwise |
| Dewarping | N / A |
| HLC | Supported |
| BLC | Supported |
| Audio Compression | G.711 |
| Suppression | Supported |
| Sampling Rate | 8KHZ |
| Edge Storage | Micro SD, up to 256GB |
| Network Storage | ANR, NAS(NFS) |
| Smart intrusion prevention | Support false alarm filtering: Line crossing detection, Intrusion detection, Region entrance detection, Region exit detection |
| Face capture | Supported |
| Statistical Analysis | People counting, support tripwire people counting and area people counting |
| Basic Detection | Motion detection, tampering alarm, audio detection |
| General Function | Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS , SSH |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API ,SDK |
| Web Browser | Plug in required live view: IE9+, Chrome 41 and below, Firefox 52 and below, Plug in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+ |
| Audio I/O | N / A |
| Alarm I/O | N / A |
| Network | 1 RJ45 10M/100M Base TX Ethernet |
| Power | DC 12V±25%, PoE (IEEE 802.3af), Power consumption: Max 5.0W |
| Dimensions (Ø x H) | 155.9 × 6 3.1 × 62. 7 mm (6. 1 ” × 2.5” × 2.5”) |
| Weight | 0.4 2 5 kg (0.9 3 lb) |
| Material | Metal |
| Working Environment | – 3 0 °C ~ 60°C 22 °F ~ 140°F), Humidity: 95% RH (non condensing) |
| Storage Environment | – 3 0 °C ~ 60°C 22 °F ~ 140°F), Humidity: 95% RH (non condensing) |
| Surge Protection | 4KV |
| Ingress Protection | IP67 |
| Reset button | Supported |
