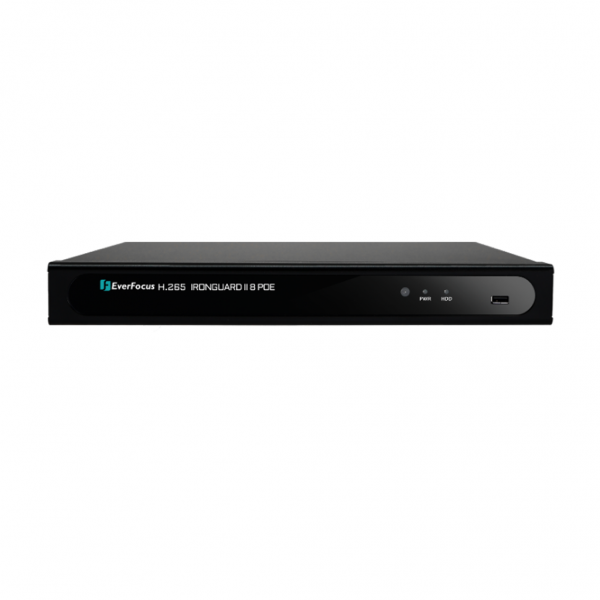

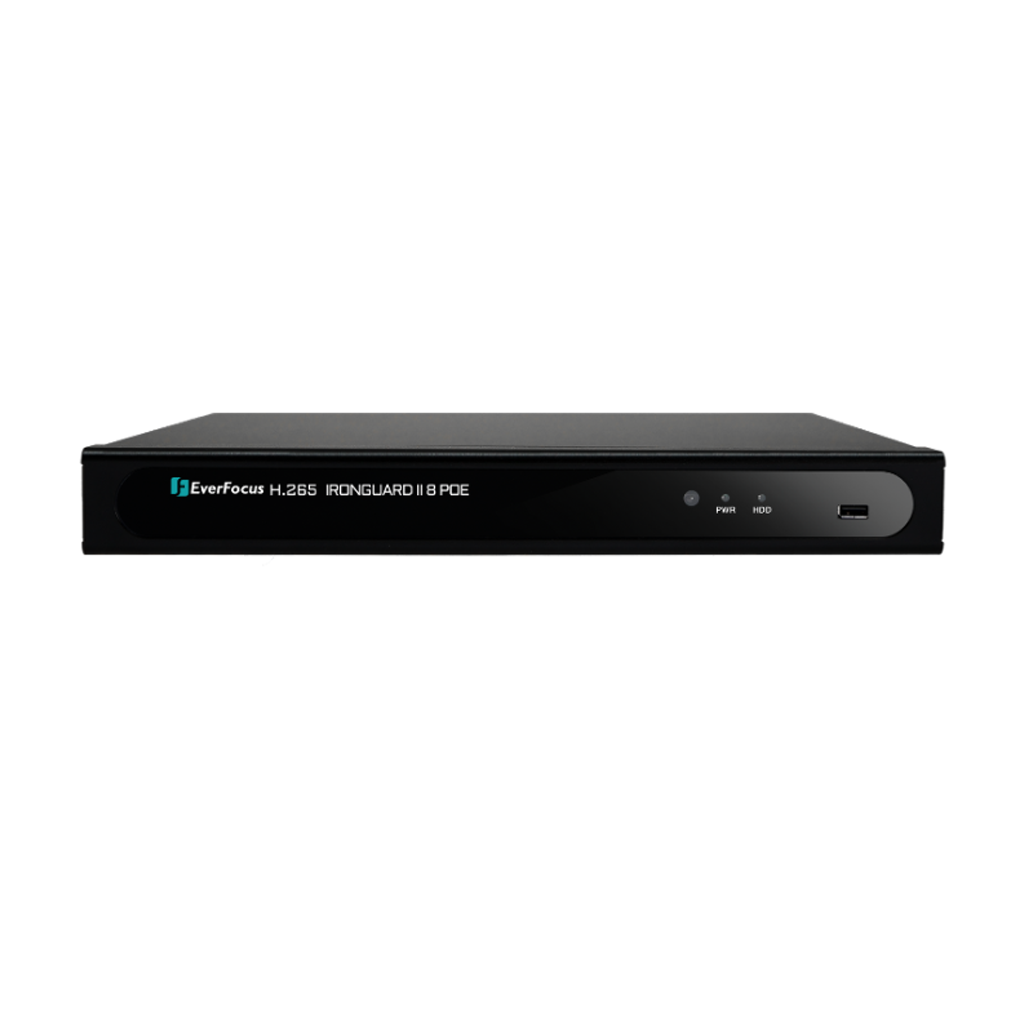

EverFocus IRONGUARD II 8 PoE
8CH, H.265, 4K NVR
Features
• Supports 4K IP camera up to 8 channels
• Supports 8 PoE ports
• Supports H.265 / H.264 compression format
• Supports 2 HDDs (2TB / HDD)
• Supports ONVIF 2.0 IP cameras
• Control methods: mouse / IR remote controller
• Integrates with EverFocus CMS
• Supports mobile App: eFVMS App
Specifications
| Model | IRONGUARD II 8 PoE |
| Number of Channels | 8 |
| RAM | 2GB |
| Compression Format | H.265 / H.264 |
| Video Format | NTSC / PAL |
| Video Inputs | 8 |
| Video outputs | 1 x VGA: 1024*768, 1280*720, 1280*1024, 1440*900, 1920*1080 1 x HDMI: 1024*768, 1280*720, 1280*1024, 1440*900, 1920*1080 , 2560*1440, 3840*2160/EDID |
| Live Resolution / Frame Rate | 8MP, 5MP, 3MP, 2MP (1080P), 1.3MP (960P), 1MP (720P) |
| Recording Resolution / Frame Rate | 8MP, 5MP, 3MP, 2MP (1080P), 1.3MP (960P), 1MP (720P) |
| Synchronized Playback | 8CH |
| Playback Performance | 4K:45fps, 4MP:90fps, 2MP:180fps |
| Audio Input | 1 x Line-In |
| Audio Output | 1 x Audio-Out |
| Internal 3.5″ HDD | 2 x SATA HDD |
| External HDD | Not supported |
| Storage Capacity | Up to 10TB each HDD |
| DVD Burner | Not supported |
| Ethernet | 1 x RJ45 100/1000 Base-T |
| USB | 2 x USB2.0 |
| RS485 | 1 x RS-485 |
| Ethernet | 1 x RJ-45 |
| Power Input | DC48V/2A, PoE Switch: 48V |
| Power Consumption | 6W max. (excluding HDD) |
| Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F (20 ~ 80% humidity) |
| Dimensions (W x D x H) | 380 x 320 x 50mm / 14.96″ x 12.6″ x 1.97″ |
| Weight (without HDDs) | 2.184kg / 4.815lb |
| Language | English, Japanese, Traditional Chinese, German, Russian, Dutch, Italian |
| Video Loss Detection | Supported |
| Motion Detection | Supported |
| Event Log | Supported |
| User Interface | GUI (Graphical User Interface) |
| Control PTZ via OSD | Supported |
| Schedule Setting | Supported |
| User Access | 2 Levels of User Access Defined |
| Video Analytics | Perimeter Intrusion Detection, Line Crossing Detection, Foreign/Missing Object Detection, Pedestrian Detection, Face Detection, Cross-Counting Detection, Sound Detection, Tamper Detection * only work with supported IP cameras |
| Operating System | Win7 (32 and 64-bit) / Win10 (32 and 64-bit) |
| CPU | Intel Core I3-2100 |
| RAM | 2GB |
| LAN Speed | 10 / 100 / 1000 Mbps (RJ45) |
| Web Browser | IE11 and later, Safari V12.1 above, Firefox V.52 above, Google chrome V.57 above, Edge V.79 above |
| Other Remote Application | 1. EverFocus CMS 2. EverFocus eFVMS (mobile app) |
