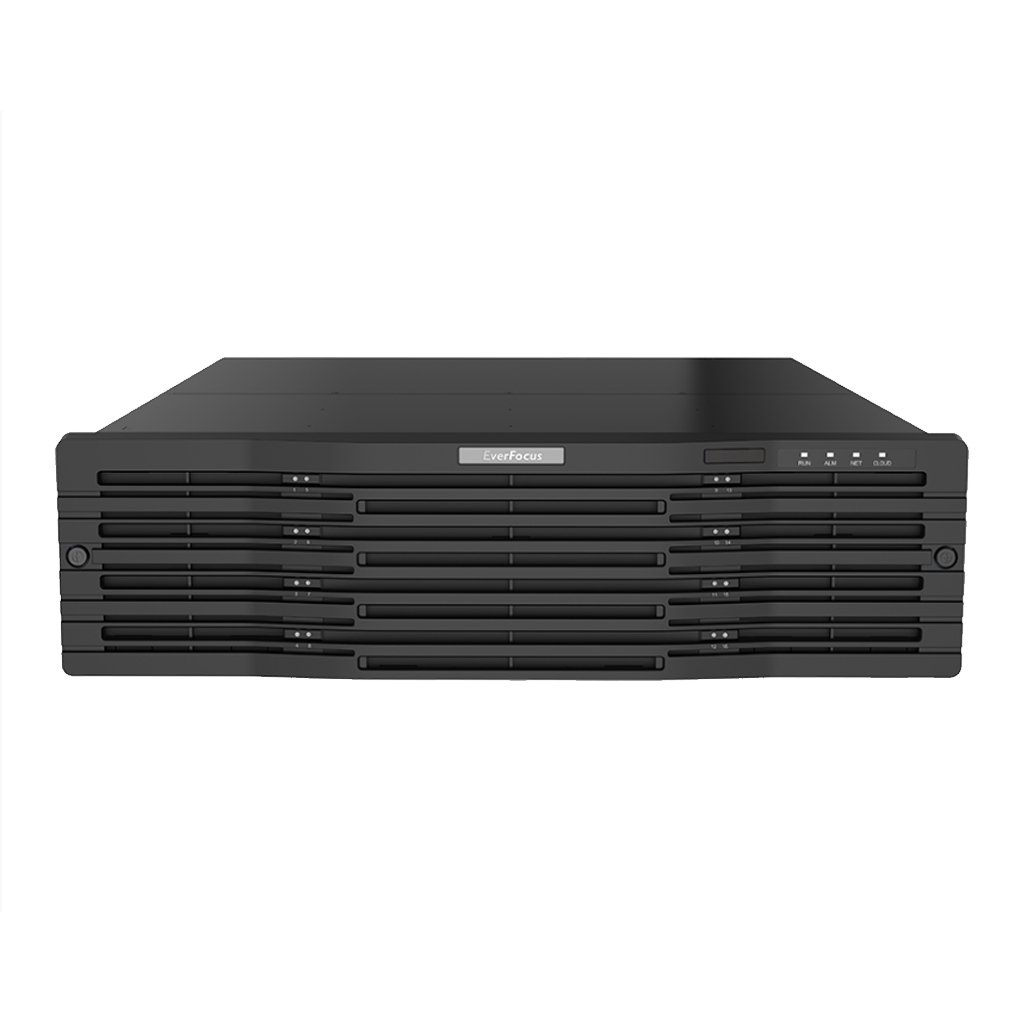

EverFocus UNIGUARD16 128H
UNIGUARD16 Series
Features
• Support Ultra 265/H.265/H.264 video formats
• 64/128-channel input
• Third-party IP cameras supported with ONVIF
conformance: Profile S, Profile G, Profile C, Profile Q, Profile A, Profile T
• Support 2-ch HDMI, 1-ch VGA, HDMI at up to 4K(3840×2160) resolution
• HDMI1, HDMI2 and VGA independent outputs provided
• Up to 12 Megapixels resolution recording
• Redundant power supply optional
• 2 decoding cards optional, up to 12-ch HDMI
• Support HDD hot swap with RAID 0, 1, 5, 6, 10, 50, 60 storage scheme configurable
• 16 SATA HDDs, up to 10TB for each HDD
• Support 2 miniSAS interfaces
• Support 12V power output
• ANR technology to enhance the storage reliability when network is disconnected
• Support cloud upgrade
• Support N+1 Hot spare
Specifications
IP Video Input | 128CH |
Two way Audio Input | 1-ch, BNC |
Incoming Bandwidth | 512Mbps |
Outgoing Bandwidth | 384Mbps |
Remote Users | 128 |
Protocols | P2P, UPnP, NTP, DHCP, PPPoE |
HDMI/VGA Output | VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz / HDMI1/HDMI2: 4K (3840×2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz |
Recording Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
Audio Output | 1-ch, BNC |
Synchronous Playback | 16-ch |
Corridor Mode Screen | 3/4/5/7/9/10/12/16/32 |
Decoding format | Ultra 265, H.265, H.264 |
Live view/Playback | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
Capability | 4 x 12MP@20, 4 x 4K@30, 16 x 1080p@30, 36 x 720p@30, 64 x D1 |
SATA | 16 SATA interfaces |
Capability | up to 10TB for each HDD |
VCA Detection | Face detection, Intrusion detection, Cross line detection, Audio detection, Defocus detection, Scene change detection, Auto tracking |
VCA Search | Face search, Behavior search |
Statistical Analysis | People counting |
Array Type | RAID 0/1/5/6/10/50/60 |
Network Interface | 4 x RJ-45 10M/100M/1000M adaptive Ethernet Interface; 2 x 1000M SFP Ethernet Interface |
Serial Interface | 1 x RS232, 1 x RS485 |
USB Interface | Rear panel: 4 x USB3.0 |
Alarm In | 24-ch |
Alarm out | 8-ch |
Power Supply | 100 ~ 240V AC; Power Consumption: ≤ 50 W (without HDD) |
Working Environment | -10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing) |
Dimensions | 482mm ×477mm × 131mm (18.8″× 19.0″ ×5.1″) |
Weight (without HDD) | ≤ 10 Kg (22.05 lb) |
