描述

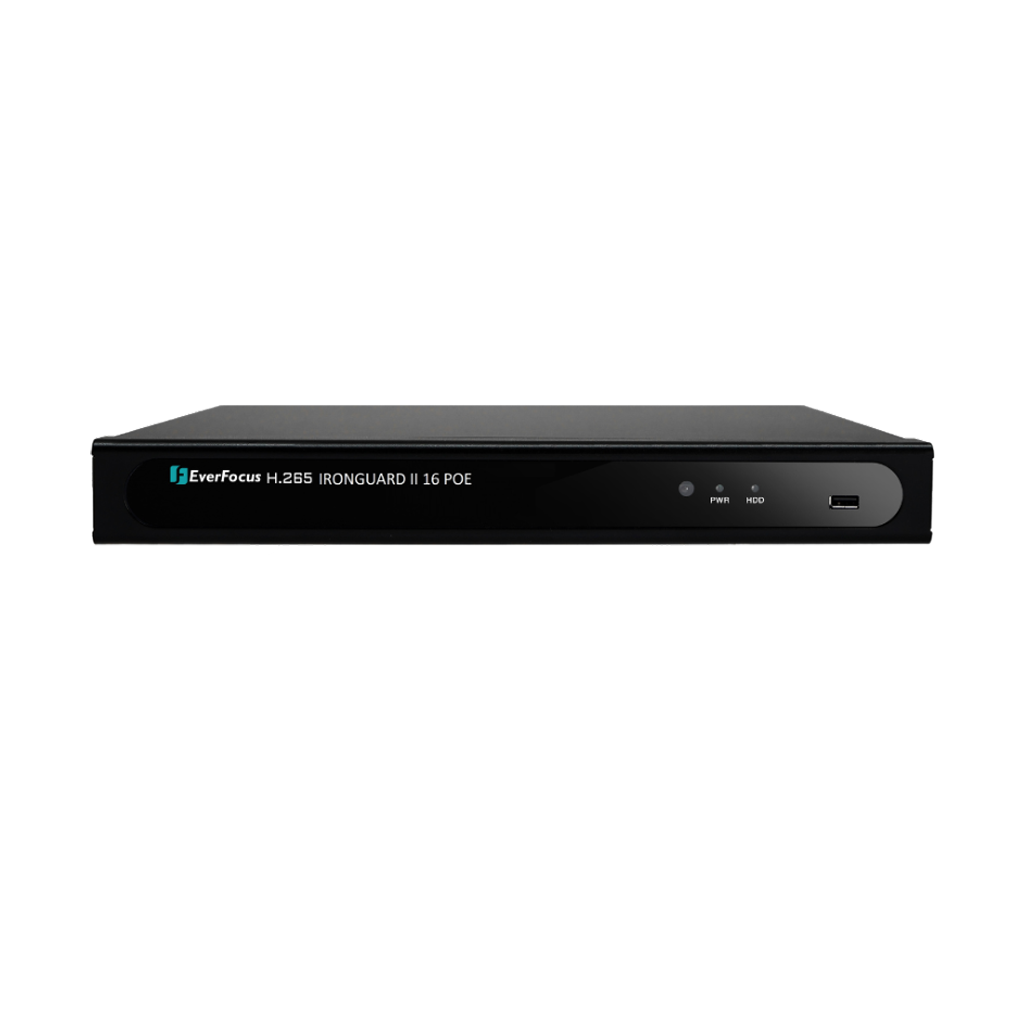

EverFocus IRONGUARD II 16 PoE
16CH, H.265, 8MP NVR
Features
• Supports 8MP (4K) IP camera up to 16 channels
• Supports 16 PoE ports
• Supports H.265 / H.264 compression format
• Supports 2 HDDs (8TB / HDD)
• Supports ONVIF 2.0 IP cameras
• Supports AI and IVS functions
• Control methods: mouse / IR remote controller
• Integrates with EverFocus CMS
• Supports mobile App: eFVMS App
Specifications
| Compression Format | H.265 / H.264 |
| Video Format | NTSC / PAL |
| Video Inputs | 16 |
| Video outputs | 1 x HDMI (up to 4K) 1 x VGA (up to 1920 x 1080) |
| Live Resolution / Frame Rate | 1024×768, 1280×720, 1280×1024, 1440×900, 1920×1080, 2560×1440, 3840×2160 |
| Recording Resolution / Frame Rate | 8MP (4K), 5MP, 3MP, 2MP (1080P), 1.3MP (960P),1MP (720P) |
| Synchronized Playback | 4 CH |
| Playback Performance | 4K: 45fps / 4MP:90fps / 2MP: 180fps |
| Audio Input | 1 x Line-In |
| Audio Output | 1 x Audio-Out |
| Internal 3.5″ HDD | 2 x SATA HDD |
| External HDD | NA |
| Storage Capacity | 8TB/disk |
| DVD Burner | Not supported |
| Ethernet | 1 port for WAN, 100/1000 Mbps Ethernet |
| USB | 2 x USB2.0 (for mouse) 1 x USB2.0 (for backup/upgrade) |
| RS485 | 1 x RS-485 |
| Ethernet | 1 x RJ-45 |
| Power Input | DC 48V/3.75A ,PoE Switch: 48V |
| Power Consumption | 8W max. (excluding HDD and IP cameras) |
| Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F (20 ~ 80% humidity) |
| Dimensions (W x D x H) | 380 x 340 x 50mm / 14.96″ x 13.39″ x 1.97″ |
| Weight (without HDDs) | 2.3kg / 5.07lb |
| Language | English, Japanese, Traditional Chinese, German, Russian, Dutch, Italian |
| Video Loss Detection | Supported |
| Motion Detection | Supported |
| Event Log | Supported |
| User Interface | GUI (Graphical User Interface) |
| Control PTZ via OSD | Supported (via both local and remote interfaces) |
| Schedule Setting | Supported |
| User Access | 2 Levels of User Access Defined |
| Video Analytics | Supported |
| Operating System | Win7 (32 and 64-bit) / Win10 (32 and 64-bit) |
| CPU | Intel Core I3-2100 |
| RAM | 2GB |
| LAN Speed | 10 / 100 / 1000 Mbps (RJ45) |
| Web Browser | IE11 and later |
