EverFocus UNIGUARD8 64H

分類:

描述

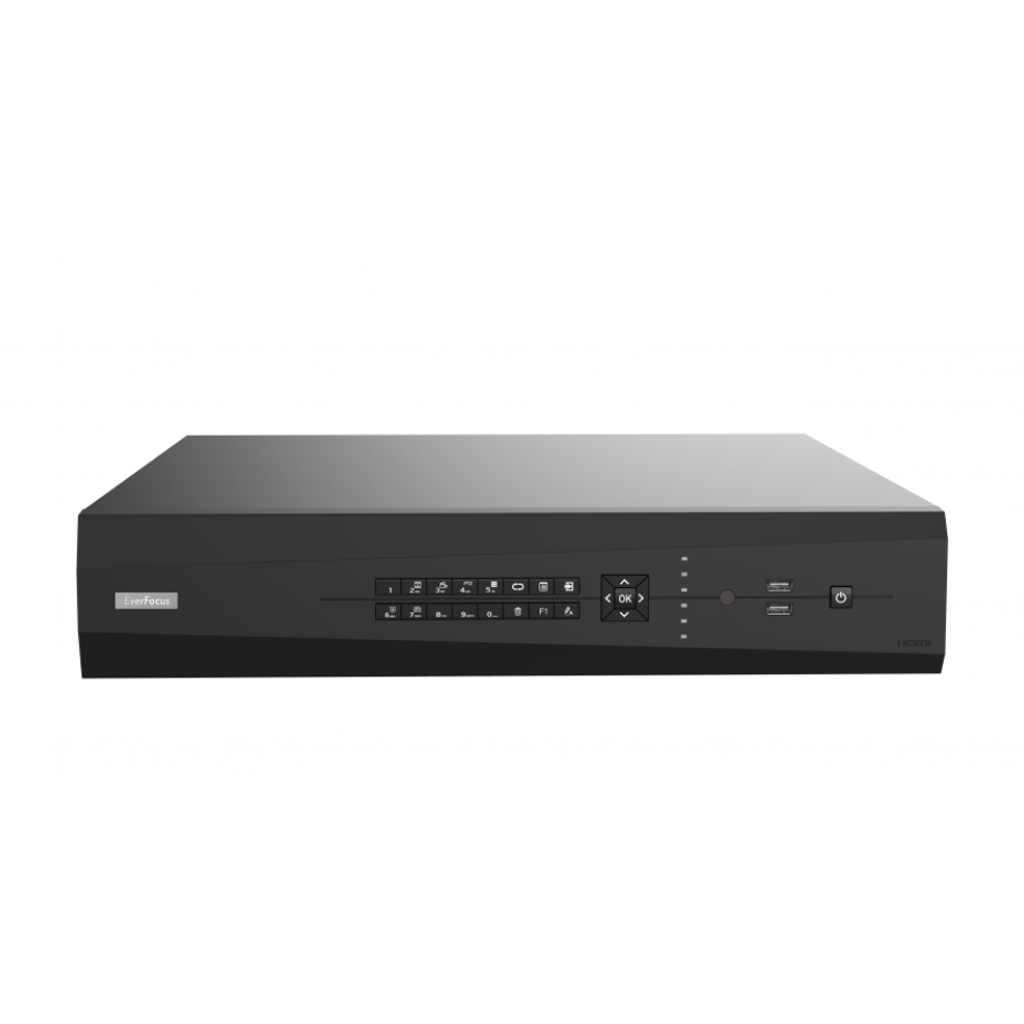

EverFocus UNIGUARD8 64H

UNIGUARD8 Series



Features

• Support Ultra H.265/H.265/H.264 video formats
• 32/64-channel input
• Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
• Support 2-ch HDMI, 1-ch VGA, HDMI at up to 4K(3840×2160) resolution
• HDMI1, HDMI2 and VGA independent outputs provided
• Up to 12 Megapixels resolution recording
• Support RAID 0,1,5,6,10
• Support 8 SATA HDDs, up to 10TB each
• Support fisheye calibration
• Support N+1 Hot spare
• Support 12V power output
• ANR technology to enhance the storage reliability when network is disconnected



Specifications

IP Video Input64CH
Two way Audio Input1-ch, RCA
Incoming Bandwidth384Mbps
Outgoing Bandwidth384Mbps
Remote Users128
ProtocolsP2P, UPnP, NTP, DHCP, PPPoE
HDMI/VGA OutputVGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz HDMI1/HDMI2: 4K (3840×2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz
Recording Resolution12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output1-ch, BNC
Synchronous Playback16-ch
Corridor Mode Screen3/4/5/7/9/10/12/16/32
Decoding formatUltra 265, H.265, H.264
Live view/Playback12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability2 x 12MP@30, 4 x 4K@30, 8 x 4MP@30, 9 x 4MP@25, 16 x 1080p@30 2 x 12MP@30, 4 x 4K@30, 8 x 4MP@30, 9 x 4MP@25, 16 x 1080p@30, 32 x 960p@25 2 x 12MP@30, 4 x 4K@30, 8 x 4MP@30, 9 x 4MP@25, 16 x 1080P@30, 32 x 960P@25, 36 x 720P@30, 64 x D1
SATASATA HDD x 8
CapabilityUp to 10TB for each HDD
InterfaceeSATA x 1
VCA DetectionFace detection, Intrusion detection, Cross line detection, Audio detection, Defocus detection, Scene change detection, Auto tracking
VCA SearchFace search, Behavior search
Statistical AnalysisPeople counting
Array TypeRAID 0/1/5/6/10/50/60
Network Interface2x RJ45 10M/100M/1000M Ethernet Interface
Serial Interface1 x RS232, 1 x RS485
USB InterfaceFront Panel: 2 x USB2.0 Rear Panel: 1 x USB3.0
Alarm In16-ch
Alarm out4-ch
Power Supply100 ~ 240V AC; Power Consumption: ≤ 25 W (without HDD)
Working Environment-10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing)
Dimensions442mm ×426mm×89mm (17.4″ × 16.8″× 3.5″)
Weight (without HDD)≤ 5.7 Kg (22.05 lb)
