描述
EverFocus UNIGUARD8 32H 是 32 路網絡錄影機，支援 Ultra H.265、ONVIF Profile S／G／T 第三方鏡頭、最高 12MP 錄影及 RAID 0／1／5／6／10，設 2 個 HDMI（最高 4K）及 1 個 VGA 輸出，可裝 8 顆 SATA 硬碟。香港防盜為安裝商及經銷商，規格以原廠為準。

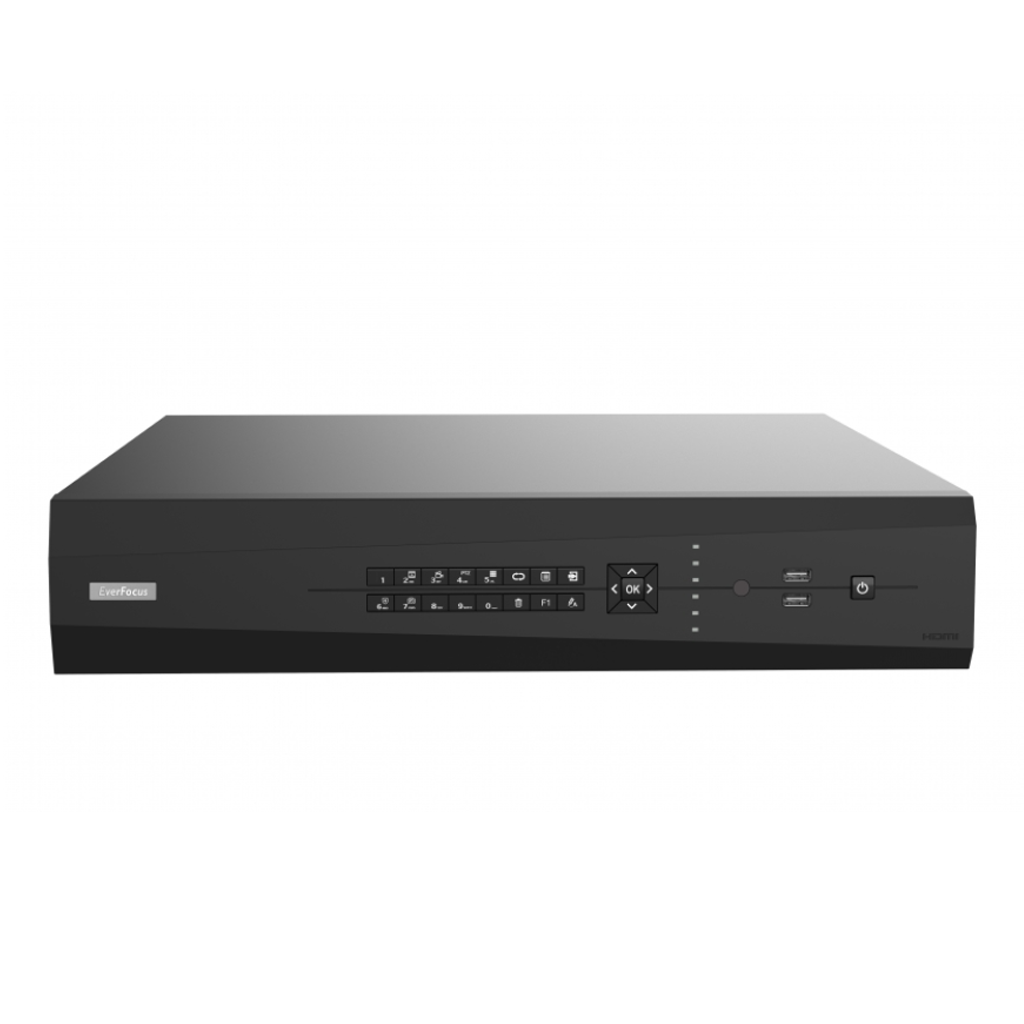

EverFocus UNIGUARD8 32H
UNIGUARD8 Series
Features
• Support Ultra H.265/H.265/H.264 video formats
• 32/64-channel input
• Third-party IP cameras supported with ONVIF conformance: Proile S, Profile G, Profile T
• Support 2-ch HDMI, 1-ch VGA, HDMI at up to 4K(3840×2160) resolution
• HDMI1, HDMI2 and VGA independent outputs provided
• Up to 12 Megapixels resolution recording
• Support RAID 0,1,5,6,10
• Support 8 SATA HDDs, up to 10TB each
• Support fisheye calibration
• Support N+1 Hot spare
• Support 12V power output
• ANR technology to enhance the storage reliability when network is disconnected
Specifications
| IP Video Input | 32CH |
| Two way Audio Input | 1-ch, RCA |
| Incoming Bandwidth | 384Mbps |
| Outgoing Bandwidth | 384Mbps |
| Remote Users | 128 |
| Protocols | P2P, UPnP, NTP, DHCP, PPPoE |
| HDMI/VGA Output | VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz HDMI1/HDMI2: 4K (3840×2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz |
| Recording Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Audio Output | 1-ch, BNC |
| Synchronous Playback | 16-ch |
| Corridor Mode Screen | 3/4/5/7/9/10/12/16/32 |
| Decoding format | Ultra 265, H.265, H.264 |
| Live view/Playback | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Capability | 2 x 12MP@30, 4 x 4K@30, 8 x 4MP@30, 9 x 4MP@25, 16 x 1080p@30 2 x 12MP@30, 4 x 4K@30, 8 x 4MP@30, 9 x 4MP@25, 16 x 1080p@30, 32 x 960p@25 2 x 12MP@30, 4 x 4K@30, 8 x 4MP@30, 9 x 4MP@25, 16 x 1080P@30, 32 x 960P@25, 36 x 720P@30, 64 x D1 |
| SATA | SATA HDD x 8 |
| Capability | Up to 10TB for each HDD |
| Interface | eSATA x 1 |
| VCA Detection | Face detection, Intrusion detection, Cross line detection, Audio detection, Defocus detection, Scene change detection, Auto tracking |
| VCA Search | Face search, Behavior search |
| Statistical Analysis | People counting |
| Array Type | RAID 0/1/5/6/10/50/60 |
| Network Interface | 2x RJ45 10M/100M/1000M Ethernet Interface |
| Serial Interface | 1 x RS232, 1 x RS485 |
| USB Interface | Front Panel: 2 x USB2.0 Rear Panel: 1 x USB3.0 |
| Alarm In | 16-ch |
| Alarm out | 4-ch |
| Power Supply | 100 ~ 240V AC; Power Consumption: ≤ 25 W (without HDD) |
| Working Environment | 10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing) |
| Dimensions | 442mm ×426mm×89mm (17.4″ × 16.8″× 3.5″) |
| Weight (without HDD) | ≤ 5.7 Kg (22.05 lb) |
