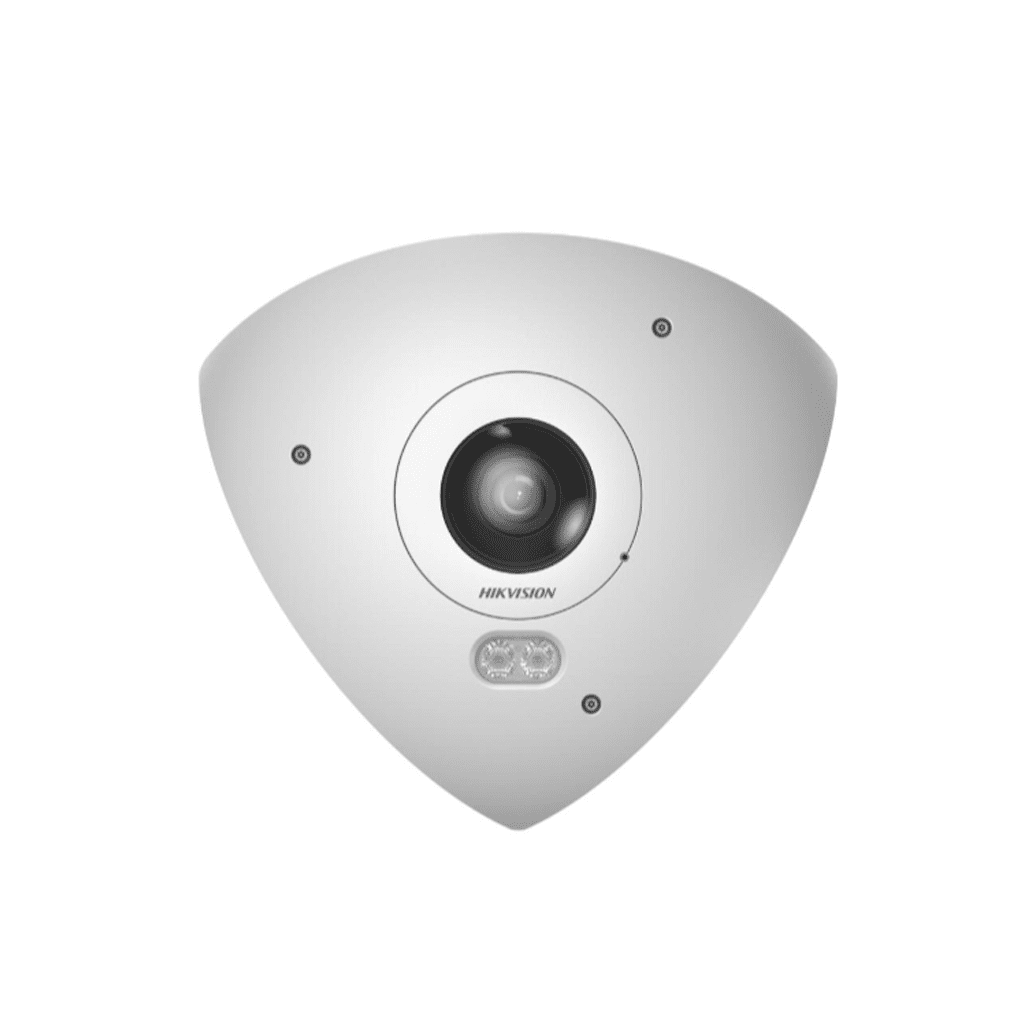

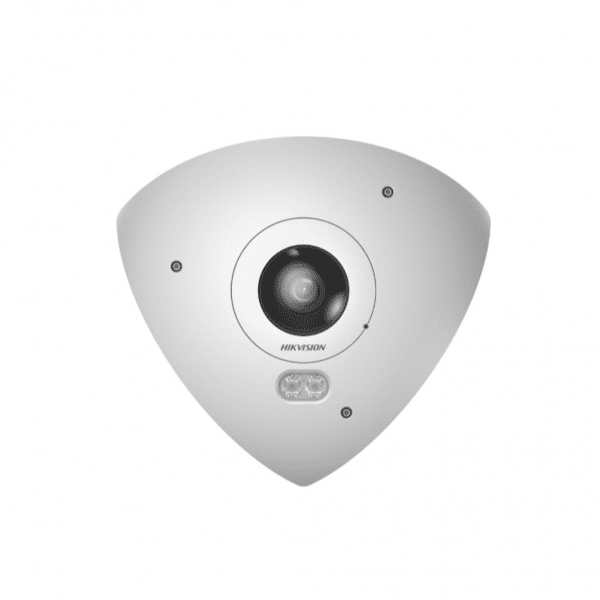

HIKVISION DS-2CD6W65G1-IVS

6 MP DeepinView Fisheye Network Camera

High resolution 6 MP: capturing clear images even when dewarped into 4-image PTZ mode
Built-in IR light: an IR range of 15 meters provides good visibility in low or even zero-light environments
Each image is clear and detailed
Supports controlling lens remotely for physical mask function
Water and dust resistant (IP67) and vandal resistant (IK10)
Adopts anti-ligature design, supports corner mount
2 mm model: Hardware decoding exclusively in fisheye+ePTZ mode, without smart features/HEOP/software decoding
2 mm model: Channel 2 syncs image settings with Channel 1 (no separate controls)

Camera
Image Sensor	1/1.8″ Progressive Scan CMOS
Max. Resolution	2560 × 2560
Min. Illumination	Color: 0.01 Lux @ (F2.25, AGC ON),B/W: 0.005 Lux @ (F2.25, AGC ON),B/W: 0 Lux with IR
Shutter Time	1 s to 1/100,000 s
Day & Night	IR cut filter
Image Parameters Switch	Yes
Image Settings	saturation,brightness,contrast,sharpness,white balance,AGC,adjustable by client software or web browser
Day/Night Switch	Day,Night,Auto,Schedule,Alarm Trigger
Wide Dynamic Range (WDR)	Digital WDR
Image Enhancement	BLC,HLC,3D DNR,Distortion Correction,Defog
Privacy Mask	8 programmable polygon privacy masks
Picture Overlay	LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format
General
Power	12 VDC ± 20%, 0.75 A, max. 9 W,two-core terminal block, PoE: IEEE 802.3af, Class 3, max. 10 W
Material	Metal
Dimension	213.73 mm × 199.67 mm × 137.57 mm (8.4″ × 7.86″ × 5.42″)
Package Dimension	255 mm × 255 mm × 190 mm (8.4″ × 7.86″ × 5.42″)
Weight	Approx. 610 g (1.34 lb.)
With Package Weight	Approx. 1904 g (4.20 lb.)
Storage Conditions	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
General Function	Heartbeat,mirror,flash log,password reset via email,pixel counter,password protection,one-key reset,anti-banding
Cable Length	0.31 m (1.02 ft.)
