描述

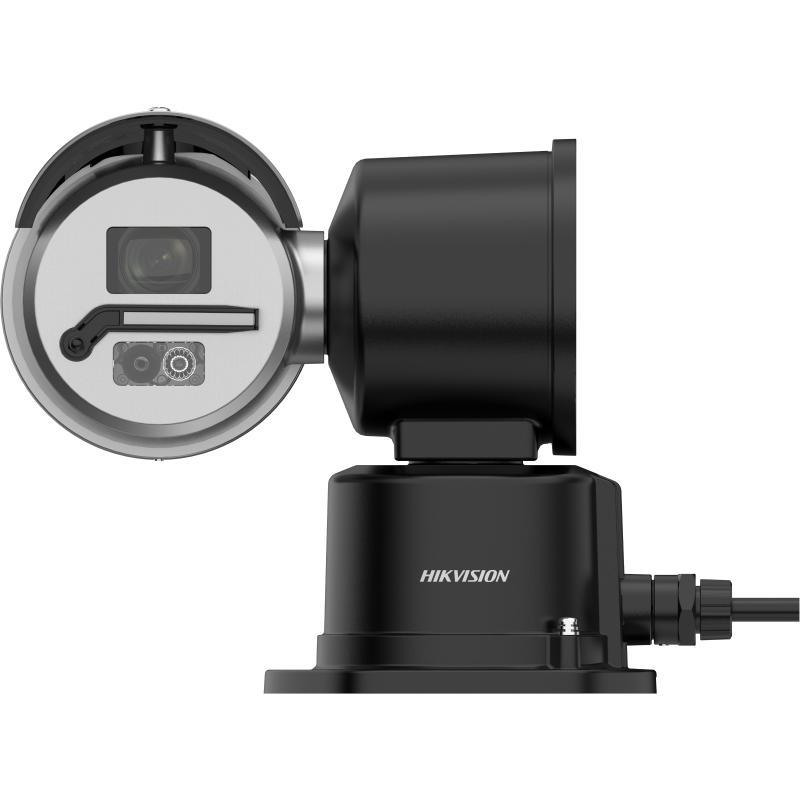

DS-2DY4425MXG0-WEX(ADC)

Aluminum Alloy 4MP 25x Explosion-proof Network Positioning System

香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。

Camera
Image Sensor 1/2.8″ Progressive Scan CMOS
Max. Resolution 2560 × 1440
Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0.001 Lux @ (F1.6, AGC ON),0 Lux with IR
Shutter Speed 1/1 s to 1/30000 s
Day & Night IR cut filter
Zoom 25 × optical,16 × digital
Slow Shutter Yes
EIS Yes. Built-in gyroscope to improve EIS performance.

Lens
Focal Length 4.8 to 120 mm
FOV Horizontal field of view: 55° to 2.4°, vertical field of view: 33° to 1.4°, diagonal field of view: 61.5° to 2.8°
Focus Auto,semi-auto,manual
Aperture F1.6
Zoom Speed Approx. 3.6 s

Illuminator
Supplement Light Type IR,White Light
Supplement Light Range IR distance: up to 100 m,White light distance: up to 30 m
Smart Supplement Light Yes
IR Wavelength 850 nm

Video
Main Stream 50Hz：25fps（2560 × 1440，1920 × 1080，1280 × 960，1280 × 720） 60Hz：30fps（2560 × 1440，1920 × 1080，1280 × 960，1280 × 720）
Sub-Stream 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
Third Stream 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Video Compression Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264/MJPEG
Video Bit Rate 32 Kbps to 16 Mbps
H.264 Type Baseline profile,Main profile,High profile
H.265 Type Main profile
Scalable Video Coding (SVC) H.264 and H.265 encoding
Region of Interest (ROI) 8 fixed regions for each stream

Network
Protocols IPv4/IPv6,HTTP,HTTPS,802.1X,QoS,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP/IP,UDP,IGMP,ICMP,DHCP,PPPoE,Bonjour
Simultaneous Live View Up to 20 channels
API ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
Smooth Streaming Yes
User/Host Up to 32 users. 3 user levels: administrator, operator, and user
Security Password protection,complicated password,HTTPS encryption,802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5),watermark,IP address filter,basic and digest authentication for HTTP/HTTPS,WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS,control timeout settings,security audit log,TLS 1.2/1.3,host authentication (MAC address),TPM 2.0 (FIPS 140-2 level 2),AES128/256
Network Storage NAS (NFS, SMB/CIFS),auto network replenishment (ANR)
Client iVMS-4200,HikCentral Pro,Hik-Connect
Web Browser IE11, Chrome 57+, Firefox 52+, Safari 11+

AI Open Platform
Model Specification Supports 4 model packages, and each model package supports detecting 16 target types and classfing 4 targets. The targets can be classified as 64 types. The device runs only 1 model at the same time.

Image Parameters Switch Yes
Image Settings Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
Day/Night Switch auto
Wide Dynamic Range (WDR) 120 dB
SNR ≥ 52 dB
Defog Digital defog
Image Enhancement HLC,BLC,3D DNR
Privacy Mask 24 programmable polygon privacy masks, mask color or mosaic configurable

Interface
Ethernet Interface 1 RJ45 10/100M self-adaptive Ethernet port
On-board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB

Event
Basic Event Motion detection,video tampering alarm,exception,alarm input and output
Linkage Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,smart tracking

Deep Learning Function
Perimeter Protection Line crossing, intrusion, region entrance, region exiting. Support alarm triggering by specified target types (human and vehicle)
Road Traffic and Vehicle Detection Blocklist and allowlist: up to 10,000 records Captures vehicle that has no license plate Support license plate recognition of motorcycles (only in checkpoint scenario) Support vehicle attribute detection, including vehicle type, color, brand, etc. (City Street mode is recommended.)

General
Power DC9V to DC15V,Max.21.2W (3W for IR);PoE (802.3at), 42.5 to 57 VDC, 0.6 A
Dimension 366.59 mm × 212.9 mm × 293.85 mm (16.52″ × 8.37″ × 11.56″)
Approx. 6.5 kg (14.33 lb.)
Material ADC12
Operating Condition -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
Cable Length 1.25 m (4.10 ft.)
General Function Anti-flicker,heartbeat,mirror,flash log,password reset via e-mail,pixel counter,password protection,one-key reset,three streams
Wiper Yes

Approval
EMC CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014),KC (KN 32: 2015, KN 35: 2015),RCM (AS/NZS CISPR 32: 2015),IC (ICES-003: Issue 7)
Safety CB (IEC 62368-1: 2014 + A11),CE-LVD (EN 62368-1: 2014/A11: 2017),BIS (IS 13252 (Part 1): 2010/IEC 60950-1: 2005),LOA (IEC/EN 60950-1)
Environment CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No 1907/2006)
Protection IP68 (IEC 60529-2013),IK10 (IEC 62262:2002)
Explosion-Proof Protection ATEX: II 2 G D Ex db IIC T6 Gb/Ex tb IIIC T80°C Db IP68, IECEx: Ex db IIC T6 Gb/Ex tb IIIC T80°C Db IP68,For explosive gas atmospheres, the maximum surface temperature is 85°C; For flammable dust atmospheres, the maximum surface temperature is 80°C; IIC: for explosive gas atmospheres other than mines susceptible to firedamp; For explosive gas mixture atmospheres: Zone 1, Zone 2, Zone 21, Zone 22.
