描述

HIKVISION DS-KD8003Y-IME2/S 是海康威視模組化對講門口機，大堂可按顯示、按鍵或讀卡模組組合。香港防盜為安裝商及經銷商。框及模組要以原廠規格為準。

相關方案：視像對講系統、門禁系統、辦公室方案。選型可先參閱以上方案頁；原廠規格見下方。

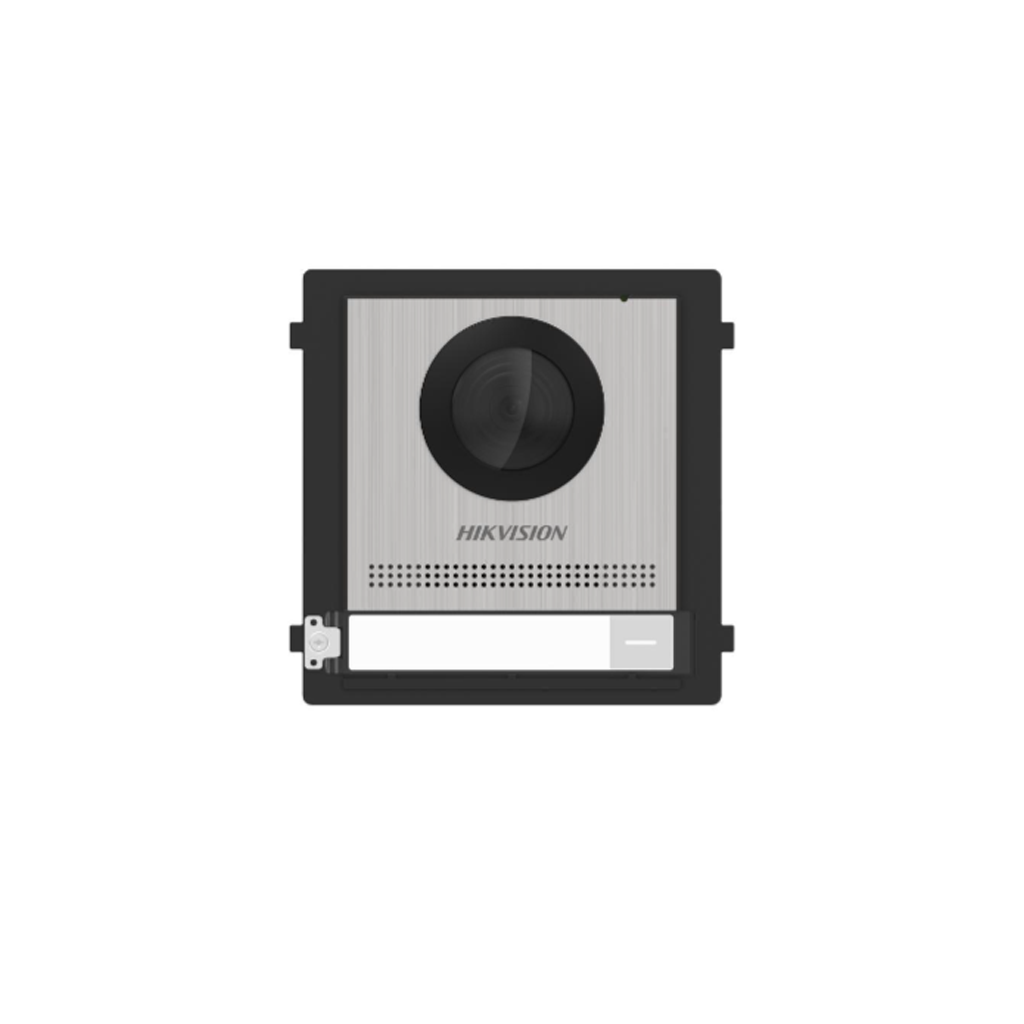

HIKVISION DS-KD8003Y-IME2/S

Two Wire Main Unit

Features

 2-Wire main unit of modular door station
 2 MP fisheye camera with IR supplement
 One call physical button for easier calls
 Two-lock control
 IP65 protection level
 Convenient configuration via Web remotely
 Directly provide 12 V, 500 mA power output for one electronic lock without additional power supply
 Stainless Steel high quality material

Specifications

System parameters
Operation system	Embedded Linux operation system
ROM	32 MB
RAM	256 MB
Processor	Embedded Processor
Video parameters
Lens	1
Resolution	2 MP
FOV	Horizontal: 146°, Vertical: 82°
Wide dynamic range (WDR)	Support
Supplement light	IR light, up to 3 m
Video compression standard	H.264
Audio parameters
Audio input	1 built-in omnidirectional microphone
Audio compression standard	G.711 U, G.711 A
Audio output	1 built-in loudspeaker
Audio compression bitrate	64 Kbps
Audio quality	Noise suppression and echo cancellation
Volume adjustment	Adjustable
Capacity
User capacity	2000
Linked indoor station capacity	500
Sub door station capacity	16
Device interfaces
Alarm input	4 (2 exit butttons and 2 door contacts by default)
TAMPER	1
Exit button	2 (2 for lock control)
RS-485	1 (1 for Hikvision’s sub module communication)
Lock control	2 relays, Max. to 30 VDC, 2 A
Door contact input	2
Two-Wire IP interface	1
General
Button	1
Installation	Surface mounting, flush mounting
Weight	Net weight: 0.430 kg Gross weight: 0.551 kg
Protective level	IP65
Working temperature	-40 °C to 60 °C (-22 °F to 140 °F)
Working humidity	10% to 90%
Dimension (W × H × D)	100 mm × 98 mm × 42 mm
Power supply	Powered by KAD704Y or KAD706Y series distributor
Application environment	Outdoor
Power consumption	≤ 4 W
