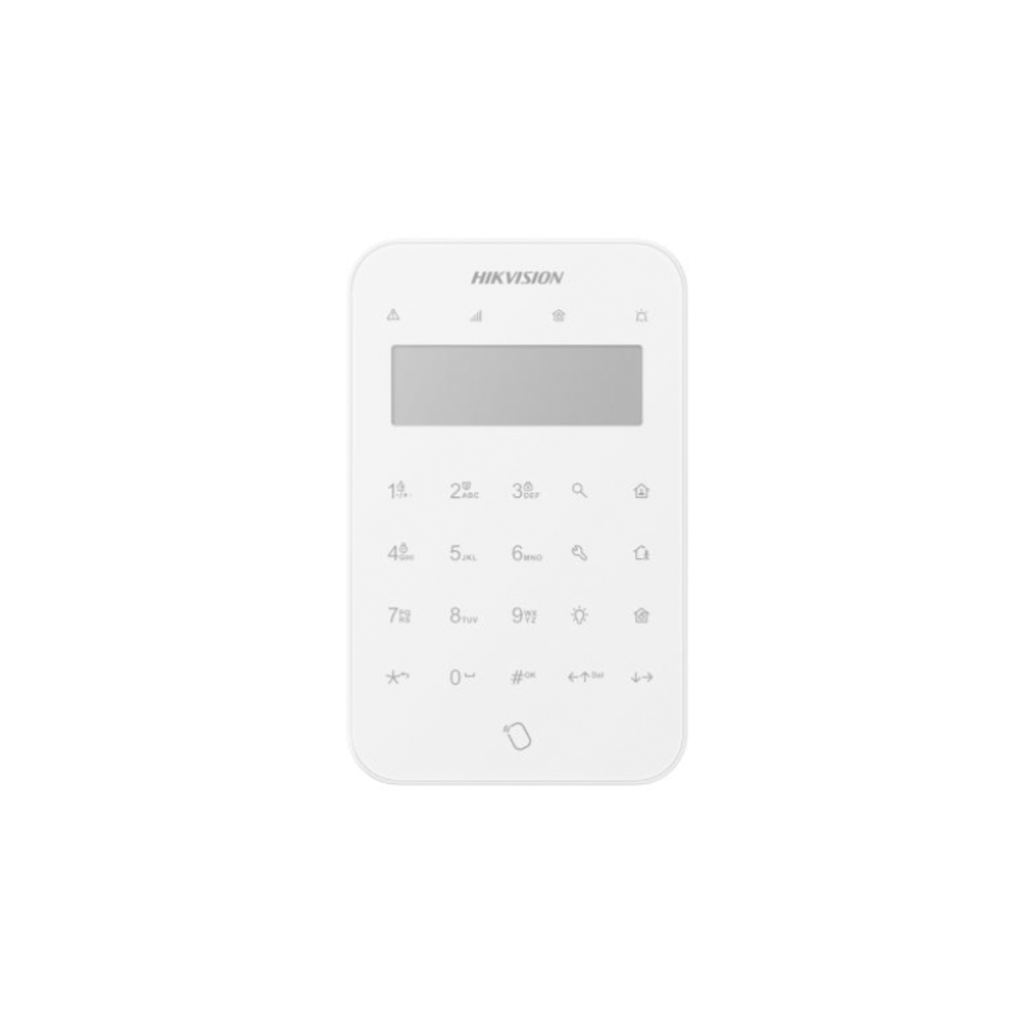

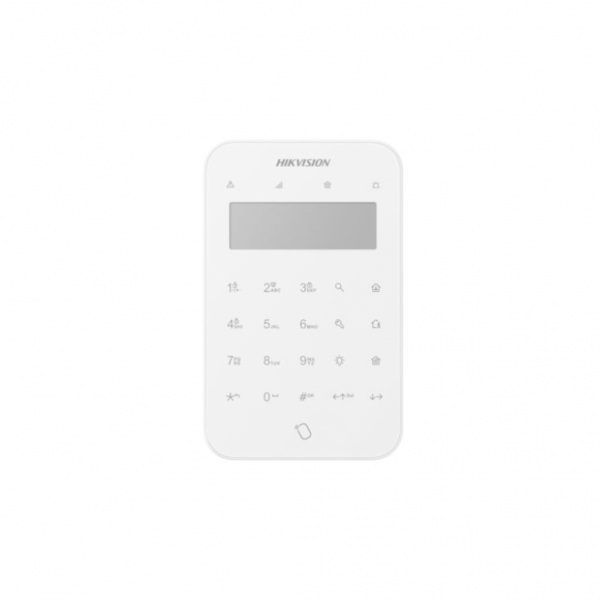

HIKVISION DS-PK1-LT-WB
Wireless LCD Keypad
Features
- 433MHz two-way wireless communication
- LCD screen and LED to indicate system status
- System configuration through LCD screen
- Multiple operations like stay/away arm, disarm, silent alarm, output control
- One-Push fire alarm, panic alarm, and medical alarm
- Full touch key design with LED backlight
- Fully remote configurable through App
Specification
| Hardware features | |
| Tag reader built in | Supported |
| Serial port | 3 |
| Tamper-Proof | Supported, front and rear |
| Buzzer | Supported |
| Power switch | Power on/off |
| Electrical characteristics | |
| Battery type | Four CR123 batteries |
| Operation humidity | 10% to 90% |
| Operation temperature | -10 °C to +55 °C |
| Battery life span | Up to 2 years (standby time) |
| Power consumption | Quiescent current: 80uA Max current: 300mA Voltage: 3v |
| Wireless transmission | |
| RF frequency | 433 MHz |
| RF modulation | 2GFSK |
| RF distance | 800m (open area） |
| Wireless technology | Tri-X Wireless Technology |
| Display | |
| Numeric key | Number key: 0-9 Function key: *, #, Query, Away arm, Stay arm, Disarm, Output, Project, Right, Left） |
| LED Indicator | Fault(orange), Enrollment/Signal (red/green), Arm(blue), Disarm(green), Alarm (red) |
| General | |
| Installation method | Wall mounting |
| Dimension(WxHxD) | 174.63*109.62*25.25mm |
| Weight | With batteries:348g Without batteries: 282g |
| Color | White |
