描述

海康威視 iDS-2CD8V886G0/X4-XZHS(Y) 是 DeepinView 四鏡頭全方位鏡頭，第 1、3 通道 8MP、第 2、4 通道 4MP，具 DarkFighter 2.0 低照度、140 dB 寬動態及 H.265+。香港防盜為安裝商及經銷商，規格以原廠為準。

相關方案：海康威視閉路電視安裝、閉路電視安裝。

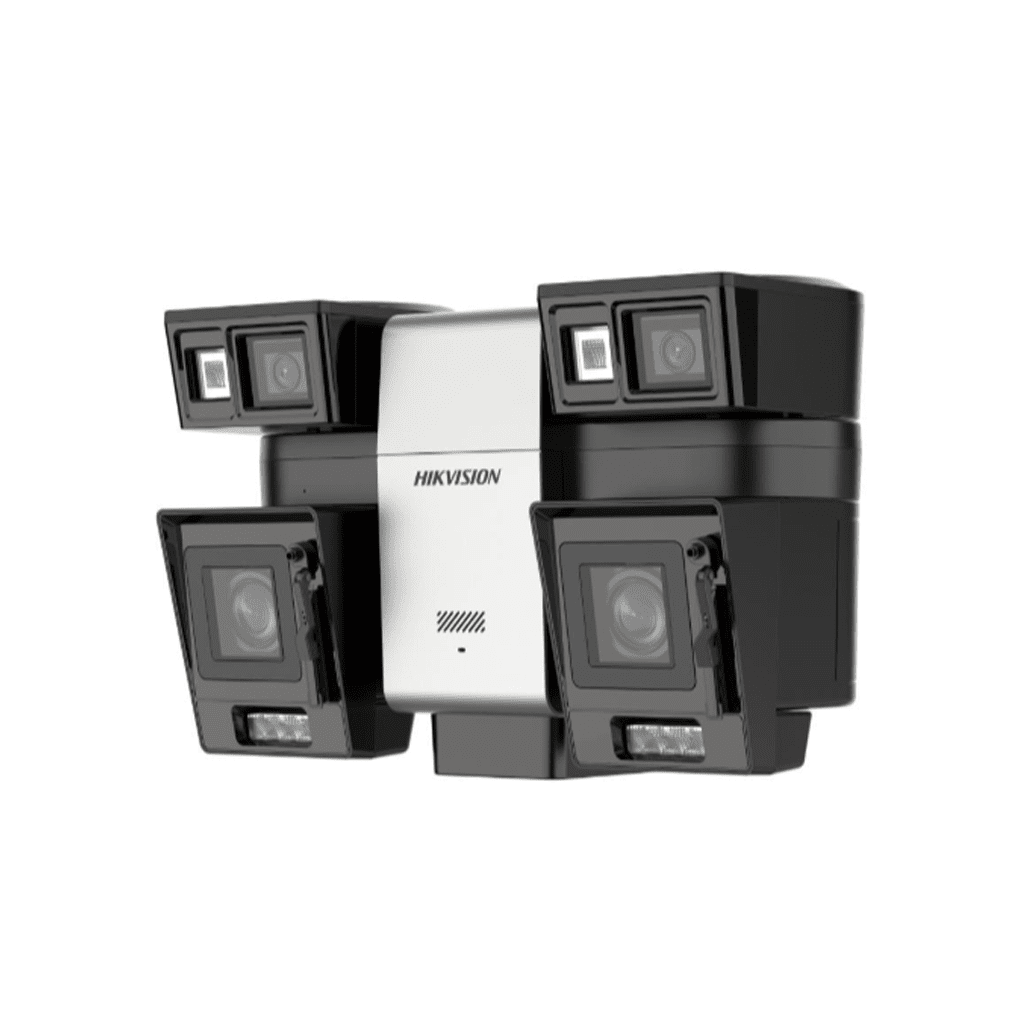

HIKVISION iDS-2CD8V886G0/X4-XZHS(Y)

8MP DeepinView Quad-Lens Omni Camera

Features

Excellent low-light performance via DarkFighter2.0 technology
Intelligent functions based on deep learning in various scenarios
High quality imaging with 8 MP resolution in channel 1/3 and 4 MP resolution in channel 2/4
Clear imaging against strong back light due to 140 dB WDR technology
Efficient H.265+ compression technology to save bandwidth and storage
Adopt 4-channel design with motorized PT, pan -10° to 190°, tilt -5° to 25°
Capture vehicles and humans of different speed clearly via ShotN technology
Built-in power meter for historical power statistics
Intrusion-triggered lighting to achieve carbon neutrality and energy saving
Support wiper for window cleaning and built-in heater to ensure clear image
Water and dust resistant (IP67) and corrosion resistant (NEMA 4X)

Specifications

Camera
Image Sensor	Channel 1: 1/1.2″ Progressive Scan CMOS, Channel 2: 1/1.8 Progressive Scan CMOS, Channel 3: 1/1.2 Progressive Scan CMOS, Channel 4: 1/1.8 Progressive Scan CMOS”
Max. Resolution	Channel 1: 3840 × 2160, Channel 2: 2560 × 1440, Channel 3: 3840 × 2160, Channel 4: 2560 × 1440
Min. Illumination	Channel 1: Color: 0.0005 Lux @ (F1.2, AGC ON), 0 Lux with Light B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR Channel 2: Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light B/W: 0.0001 Lux @ (F1.0, AGC ON), 0 Lux with IR Channel 3: Color: 0.0005 Lux @ (F1.2, AGC ON), 0 Lux with Light B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR Channel 4: Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light B/W: 0.0001 Lux @ (F1.0, AGC ON), 0 Lux with IR
Shutter Time	1 s to 1/100,000 s
Day & Night	Channel 1: IR cut filter, Blue glass module to reduce ghost phenomenon, Channel 2: IR cut filter, Blue glass module to reduce ghost phenomenon, Channel 3: IR cut filter, Blue glass module to reduce ghost phenomenon, Channel 4: IR cut filter, Blue glass module to reduce ghost phenomenon
Angle Adjustment	Channel 1: Pan: -10° to 190°, tilt: -5° to 25°, Channel 2: Pan: 0° to 180°, tilt: -5° to 25°, Channel 3: Pan: -10° to 190°, tilt: -5° to 25°, Channel 4: Pan: 0° to 180°, tilt: -5° to 25°
Image Parameters Switch	Yes
Image Settings	Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,AGC,adjustable by client software or web browser
Day/Night Switch	Day,Night,Auto,Schedule,Alarm Trigger
Wide Dynamic Range (WDR)	140 dB
Image Enhancement	BLC,HLC,3D DNR,Distortion Correction
Privacy Mask	8 programmable polygon privacy masks
Picture Overlay	LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format
General
Power	36 VDC ± 20%, 1.56 A, max. 56.12 W,two-core terminal block
Material	Plastics and metal
Dimension	385.2 mm × 193.6 mm × 262.5 mm (15.2″ × 7.6″ × 10.3″)
Package Dimension	490 mm × 280 mm × 343 mm (19.3″ × 11″ × 13.5″)
Weight	Approx. 6660 g (14.7 lb.)
With Package Weight	Approx. 8835 g (19.5 lb.)
Storage Conditions	-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions	-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
General Function	Heartbeat,mirror,flash log,password reset via email,pixel counter,password protection,one-key reset,anti-banding
Heater	Yes
Wiper	Yes
Demist	Yes
Flashing Light	White Light
