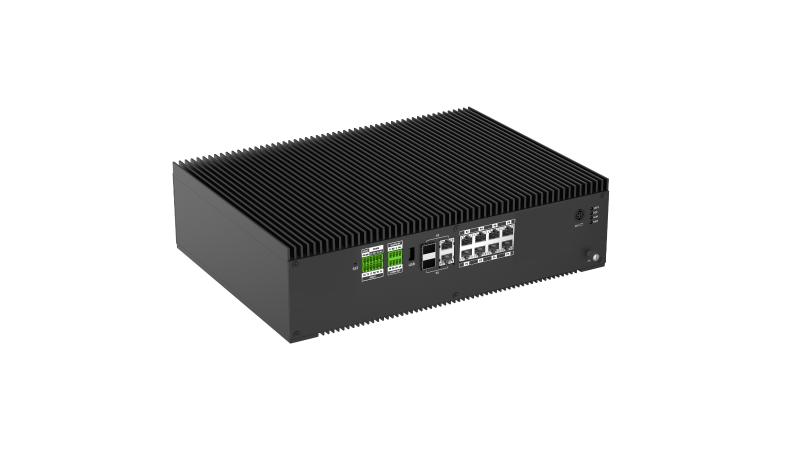

iDS-TSS300-H

Traffic Incident Detection Server

iDS-TSS300-H 屬海康威視專業產品。傑成系統有限公司（香港防盜）為海康威視產品經銷商，可按項目報價供應；安裝範圍視乎項目另行確認。查詢請聯絡我們。規格以原廠資料為準。

Video Compression	H.265,H.264
Video Input	4 CH access, up to 4MP resolution

API	ISAPI,SDK
Client	Hik-Central Master, Hik-Central Pro, HikCentral Master Lite
Protocols	TCP/IP,DDNS,HTTPS,RTSP,NTP,HTTP,FTP,DHCP,DNS,RTP,IPv4/IPv6,UDP,SSL/TLS,ICMP,RTCP,SMTP,IGMP,802.1X,QoS,ARP
Security	Password protection,Complicated password,HTTPS encryption,Watermark,Basic and digest authentication for HTTP/HTTPS,RTP/RTSP over HTTPS,Control timeout settings,Security audit log
Simultaneous Live View	Up to 4 channel(s)
Web Browser	Chrome V61+, Edge
User/Host	Up to 128 users,3 user levels: administrator, operator, and user

Alarm	2 × input, 2 × output
Audio	1 × input, 1 × output
Indicator	4 × indicator (1 × Power Indicator, 1 × Alarm Indicator, 1 × HDD Indicator, 1 × Ready Indicator)
Network Interface	10 RJ45 10M/100M/1000M self-adaptive Ethernet port(s)
Optical Interface	2 SFP
RS-232	2 RS-232
RS-485	2 RS-485
USB	1 × USB 3.0 (5.0 V, 1.0 A)

Data Uploading	TFS(Traffic Forensics System), AID(Automatic Incident Detection) and manual uploading
Network Settings	Able to set two-segment IP address
Smart Function	Supports multiple incidents detection: Congestion, Wrong-Way Driving, Stopped Vehicle, Emergency Lane Occupation, Pedestrian, Fallen Object, Roadblock, Construction, Traffic Accident, Vehicle Breakdown, Vehicle Overstay, Driving on the Lane Line, Lane Change, U-Turn, Fire, Smoke, Animal Intrusion.,Supports multiple traffic parameters collection: Traffic Flow(Small-Size Vehicle, Large-Size Vehicle), Average Speed, Average Lane Time Occupation, Average Lane Space Occupation, Average Time Headway, Average Space Headway.

Operation System	Linux
HDD Storage	4 × 3.5-inch SATA (Each SATA interface supports up to 8 TB HDD),Default 1 × 4 TB HDD
Operating GUI	Web
Power	DC 12 V ±10%, 6 A, max. 72 W
Dimensions	482.6 mm × 102.5 mm × 285.49 mm (19" × 4.04" × 11.24") (L × W × H)
Package Dimensions	563 mm × 363 mm × 180 mm (22.1" × 14.3" × 7.1") (L × W × H)
Weight	Approx. 5.82 kg (12.83 lb.)
With Package Weight	Approx. 7.67 kg (16.91 lb.)
Operating Condition	-30 °C to 70 °C (-22 °F to 158 °F). Humidity 95% or less (non-condensing)
Storage Condition	-30 °C to 70 °C (–22 °F to 158 °F). Humidity 95% or less (non-condensing)
