描述

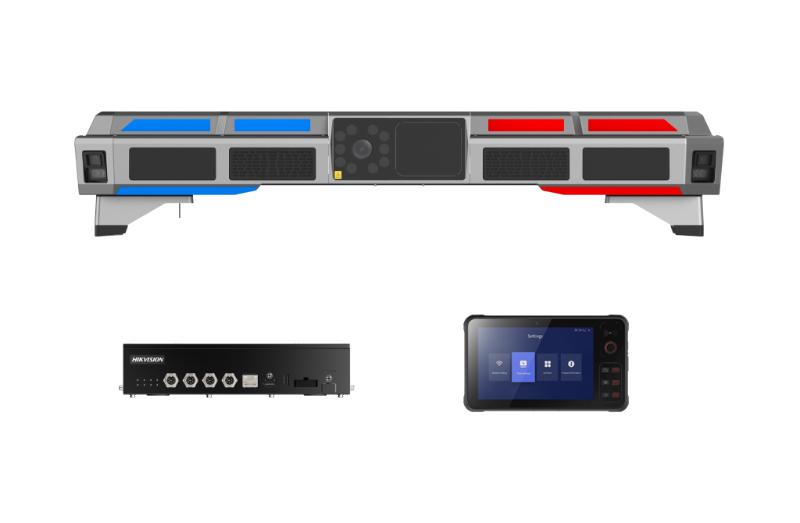

iDS-TVJ860-GIR
Intelligent Light Bar
iDS-TVJ860-GIR 屬海康威視專業產品。傑成系統有限公司（香港防盜）為海康威視產品經銷商，可按項目報價供應；安裝範圍視乎項目另行確認。查詢請聯絡我們。規格以原廠資料為準。
規格
Camera
| Image Sensor | Front Camera and Rear Camera:1/1.8'' Progressive Scan CMOS, Left Camera and Right Camera:1/3'' Progressive Scan CMOS |
|---|---|
| Max. Resolution | Front Camera and Rear Camera:3840×2160, Left Camera and Right Camera:2688×1944 |
| Min. Illumination | Front Camera and Rear Camera: Color: 0.001 Lux @ (F1.2, AGC ON) Left Camera and Right Camera: Color: 0.005 Lux @ (F1.5，AGC ON) |
| Shutter Time | 1/25 s to 1/30000 s |
| Day & Night | IR cut filter |
Lens
| Focal Length & FOV | Front Camera and Rear Camera: 8 mm,horizontal FOV: 37.3°, vertical FOV: 20.9°, diagonal FOV: 42.8°, Left Camera and Right Camera: 4 mm,horizontal FOV: 79.6°, vertical FOV: 43.7°, diagonal FOV:93.8° |
|---|---|
| Focus | Fixed |
| Iris Type | Fixed iris |
| Aperture | Front Camera and Rear Camera: F1.6,Left Camera and Right Camera: F2.0 |
Illuminator
| Built-in Supplement Light Type | IR light(only Front Camera and Rear Camera) |
|---|---|
| Built-in Supplement Light Range | Front Camera and Rear Camera: Up to 30 m |
| IR Wavelength | 850 nm |
Radar
| Working Frequency | 76 to 77 GHz |
|---|---|
| Modulation Waveform | FMCW |
| Horizontal Detection Angle | ±60° |
| Vertical Detection Angle | ± 7° |
| Detection Distance | 120 m |
| Distance Measurement Accuracy | ≤ ±0.4 m |
| Speed Measuring Range | up to 250 km/h |
| Speed Measuring Accuracy | ± 2 km/h |
| Max. Detectable Targets | Up to 64 |
| Angle Resolution | ±0.5° |
Video
| Main Stream | Front Camera and Rear Camera: 50Hz(25fps)/60Hz(30fps):3840×2160,3392×2008,3072×1728,2688×1520,1920×1200,1920×1080,1280×720,704×576,352×288 Left Camera and Right Camera: 50Hz(25fps)/60Hz(30fps):2688×1944,1920×1080,1280×720,704×576,352×288 |
|---|---|
| Sub-Stream | Front Camera and Rear Camera: 50Hz(25fps)/60Hz(30fps):1920×1080,1280×720,704×576,352×288 Left Camera and Right Camera: 50Hz(25fps)/60Hz(30fps):1920×1080,1280×720,704×576,352×288 |
| Third Stream | Front Camera and Rear Camera: 50Hz(25fps)/60Hz(30fps):1280×720,704×576,352×288 Left Camera and Right Camera: None |
| Video Compression | Main stream: H.264/ H.265/MJPEG, Sub-stream: H.264/ H.265/MJPEG, Third stream: H.264/ H.265/MJPEG |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline Profile,Main Profile,High Profile |
| H.265 Type | Main Profile |
Network
| Protocols | TCP/IP,ICMP,HTTP,HTTPS,FTP,SFTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,SMTP,SNMP,IGMP,QoS,IPv4/IPv6,UDP,SSL/TLS,ISUP,ARP,802.1X |
|---|---|
| API | ISAPI,SDK,ISUP |
| User/Host | Up to 32 users |
| Security | Password protection,Complicated password,HTTPS encryption,802.1X authentication (EAP-PEAP, EAP-LEAP, EAP-MD5),Watermark,IP address filter,Basic and digest authentication for HTTP/HTTPS,WSSE and digest authentication for ONVIF,RTP/RTSP over HTTPS,Control timeout settings,Security audit log,TLS 1.1,Host authentication (MAC address) |
| Network Storage | Local storage,CVR,ANR |
| Web Browser | Chrome 89.0+, Edge |
Wireless (Wi-Fi)
| Encryption Mode | WPA-PSK/WPA2-PSK |
|---|---|
| Wi-Fi Protocol | 802.11ac |
| Frequency Range | 5 GHz |
| Transfer Rate | 11ac: up to 300 Mbps |
Wireless (Mobile Communication)
| Frequency | LTE FDD: Band 1/3/5/8 LTE TDD: Band 38/39/40/41 WCDMA/HSPA+: Band 1/8 TD-SCDMA: Band 34/39 GSM/GPRS/EDGE: 900/1800MHz;LTE FDD: Band 1/3/5/7/8/20/28 LTE TDD: Band 38/40/41 WCDMA/HSPA+: Band 1/5/8 GSM/GPRS/EDGE: 850/900/1800MHz |
|---|---|
| Standard | LTE-TDD,LTE-FDD,EVDO,GPRS,CDMA,GSM,EDGE |
| SIM Card Type | Nano SIM |
| Image Settings | Saturation,Brightness,Contrast,Sharpness,Gain,White balance,Adjustable by client software or web browser. |
|---|---|
| Day/Night Switch | Auto,Schedule,Alarm Trigger |
| Wide Dynamic Range (WDR) | 140 dB |
| Image Enhancement | 3D DNR |
Supplement Detection (Satellite Positioning)
| Satellite Positioning | GPS |
|---|
Interface
| Ethernet Interface | 1 RJ45 10M/100M/1000M self-adaptive Ethernet port(s) |
|---|---|
| Alarm | 1 input(s),1 output(s) |
| USB | 1 × USB 3.0 (5.0 V, 1.0 A) |
Event
| Basic Event | HDD error,Network disconnected,IP address conflict |
|---|
Road Traffic and Vehicle Detection
| Trigger Mode | Video trigger |
|---|---|
| LPR Countries/Regions | Middle East: The United Arab Emirates (Abu Dhabi, Ajman, Dubai, Fujairah, Ras Al Khaimah, Sharjah and Umm Al Quwain), Qatar, Iraq, Egypt, Jordan, Kuwait, Saudi Arabia, Pakistan, Oman, Lebanon, Bahrain, Africa: Nigeria, Kenya, Ivory Coast , South Africa, Tanzania, Mauritius, Morocco, Tunisia, Sierra Leone, Zambia, Ghana, Zimbabwe, Uganda, Angola, Ethiopia, Senegal, Algeria, Asia-Pacific: Australia, New Zealand, Indonesia, Malaysia, Singapore, South Korea, Thailand, Vietnam, the Philippines, Hong Kong, Macao, Taiwan, Myanmar, India, Mongolia, Cambodia, Laos, Bangladesh, Nepal, Sri Lanka, America: Canada, Argentina, Chile, Paraguay, Uruguay, El Salvador, Bolivia, Colombia, Brazil, Ecuador, Peru, Mexico, Panama, Costa Rica, Trinidad and Tobago, the Dominican Republic, Guatemala, Europe: Turkey, Croatia, Slovakia, Czech Republic, Bulgaria, the Republic of North Macedonia, Hungary, Greece, Poland, France, Netherlands, Switzerland, Spain, the UK, Ireland, Germany, Italy, Austria, Israel, Palestinian, Belgium, Luxembourg, Albania, Kosovo, Serbia, Romania, Montenegro, Denmark, Finland, Sweden, Slovenia, Portugal, Malta, Cyprus, Iceland, Liechtenstein, Bosnia and Herzegovina, Russian-Speaking Regions: Azerbaijan, Belarus, Kazakhstan, Lithuania, Georgia, Estonia, Latvia, Russia, Ukraine, Moldova, Uzbekistan, Kyrgyzstan, Armenia, Turkmenistan, Tajikistan |
| Speeding | Supported |
| Emergency Lane Occupation | Supported (Only the front and rear cameras support in static mode) |
| Wrong-Way Driving Detection | Supported (Only the front and rear cameras support in static mode) |
| Driving on Lane Line Detection | Supported (Only the front and rear cameras support in static mode) |
| No License Plate Detection | Supported |
| Motorcycle LPR | Supported |
| Without Helmet | Customized to support |
| Manned Non-Motor Vehicle | Customized to support |
| Coverage | Up to 3 lane(s) |
| Blocklist and Allowlist | Max. 500,000 records |
| Smart Function | Front Camera and Rear Camera: License plate recognition, Vehicle type classification, color identification, no-plate vehicle capture, vehicle driving direction detection, Left Camera and Right Camera: License plate recognition, Motorcycle helmet detection and Manned motorcycle detection ( Optional ) |
| Accuracy (Under recommended installation and lighting conditions) | Capture rate > 95%, Vehicle moving direction recognition accuracy > 98.5%, LPR accuracy > 95%, Mistaken capture rate < 5% |
| Vehicle Type | Car,Van,Bus,Truck,Light Truck,SUV(MPV),Pickup,Motorcycle,Tricycle, (Only the front and rear cameras support) |
| Vehicle Color | Red, yellow, green, blue, pink, purple, cyan, brown, white, grey, black Recognizable at daytime only., (Only the front and rear cameras support) |
| Vehicle Manufacturer | 212 Manufacturers: AC SCHNITZER, AITO, APOLLO, Ashok Leyland, Audi, Aston Martin, Acura, Ankai, Ayvip, Alfa Romeo, Asiastar, Artega, ARCFOX, BAIC, Beiben Truck, BLUECAR, Bedford, Benz, BMW, BYD , Bufori, Buick, Bently, Brabus, Bugatti, Borgward, BONLUCK, Besturn, CADILLAC, Celis, Chevrolet, Citroen, Chery, Chrysler, Chang an, CNHTC, CHTC, Caterham, Conquest, C&C Trucks, CAMC, DAIHATSU, DMC, DS, Dacia, Dongnan, Dodge, Dongwo, Denza, Dongfeng, Daewoo, Dima, Denway, DORCEN, Eicher, Emgrand, Equss, EXEED, Ford, FORO, Fornasari, Ferrari, Fuqi, Fiat, Fisker, FQT Motor, Foton, FAW, FORLAND, FUSO, Force Motors, Fxauto, Faralli Mazzanti, GAC, Great Wall, GMC, Geely, Geometry, Hyundai, HENNESSEY, HINO, Honda, Haima, Haval, Hongqi, Isuzu, Infiniti, Iveco, IAT, IM, JAC, JBC, JEEP, Jaguar, JMC, JETOUR, JETTA, Joylong ,Koenigsegg, KIA , Kia-Borrego, King Long, Kama, KTM, LEVC, Lexus, Land Rover, Lincoln, Lamborghini, Lotus, Luxgen, Levdeo, Leopaard, Lynk & Co , Lada, Leading Ideal, LEAPMOTOR, LUMMA, Lorinser, Land Wind, MAN Trucks , MAXUS, MG, MINI, Mahindra, Mitsuoka, Maserati, Meiya , McLaren, Maybach, Mazda, Morgan, Mitsubishi, Mustang, Marvel R, Maple, MANSORY, Modern, NOMA, Nissan, Norinco, Neoplan, NIO, NETA, Opel, Ora, Oushang, Perodua, Porsche, Peugeot, PGO, Proton, Pagani, Polestar, POCCO, Qoros, RAM, Rolls-Royce, Renault, Roewe, Rohens, Ranz, Ruilan, Radar, Renault Samsung, SAAB, SCANIA , SCION, SMART, SML ISUZU, Suzuki, SAIC Datong, Subaru, Skoda, Startek, Soyat, Seat , SWM, Sany, SsangYong, Sojen, Silver, SATE, SOL, Skyworth, SGMW, SITECH DEV, TATA, Tankar, Tesla, Trumpchi, Techart, Toyota, UD, UAES, Volkswagen, VINFAST, Venucia, Volvo, VOYAH, VeiculoLongo, Weltmeister , XCMG, Xinyuan, XPENG, Yutong, YAMAHA, Zhonghua, Zotye, Zhinuo, ZEEKR, Zenvo |
| Capture Speed Range | up to 250 km/h (Only the front and rear cameras support) |
Face Detection
| Face Capture | Detects up to 40 faces simultaneously, Supports swing left and right from -60° to 60°, tilt up and down from -30° to 30°, Uploads face with background and closed-up face pictures |
|---|---|
| Face Comparison | Front Camera and Rear Camera:Up to 10 face libraries. Up to 10,000 faces for each library. 100,000 faces in total, Left Camera and Right Camera:Up to 1 face libraries. Up to 5,000 faces for each library. 5,000 faces in total, Supports face library encryption |
General
| Operating System | Linux |
|---|---|
| Power | DC12V~DC14V, 18.3A,max. 220W,bare wire |
| Material | Aluminum alloy,PC plastics |
| Dimension | 1128.7 mm × 360 mm × 232 mm (44.4" × 14.2" × 9.1") (L × W × H) |
| Package Dimension | 1338 mm × 492 mm × 443 mm (52.7" × 19.4" × 17.5") (L × W × H) |
| Weight | Approx. 34.5 kg (76.1 lb.) |
| With Package Weight | Approx. 36.7 kg (80.9 lb.) |
| Operating Condition | -30 °C to 70 °C (-22 °F to 158 °F). Humidity 95% or less (non-condensing) |
| Storage Condition | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (Non-condensing) |
| General Function | Password protection,One-key reset,Heartbeat |
| Storage | 1TB SSD (Supports up to 2*2TB 2.5-inch SSD) |
Approval
| RF | CE-RED: EN 301 091-1 V2.1.1;301 489-1 V2.2.3;301 489-51 V2.1.1 ;50130-4:2011+A1:2014;55032:2015+A1:2020+A11:2020; 55035:2017+A11:2020;61010-1:2010+A1:2019;IEC 61326-1:2021;IEC 62311:2020 |
|---|---|
| EMC | CE-EMC: EN 50130-4:2011+A1:2014;55032:2015+A11:2020+A1:2020;55035:2017+A11:2020;IEC 61326-1:2021 |
| Safety | CB: IEC 61010-1:2010;IEC 61010-1:2010/AMD1:2016;CE-LVD: EN 61010-1:2010+A1:2019 |
| Environment | CE-RoHS: EN IEC 63000:2018,WEEE: 2012/19/EU,Reach: Regulation (EC) No 1907/2006 |
