描述

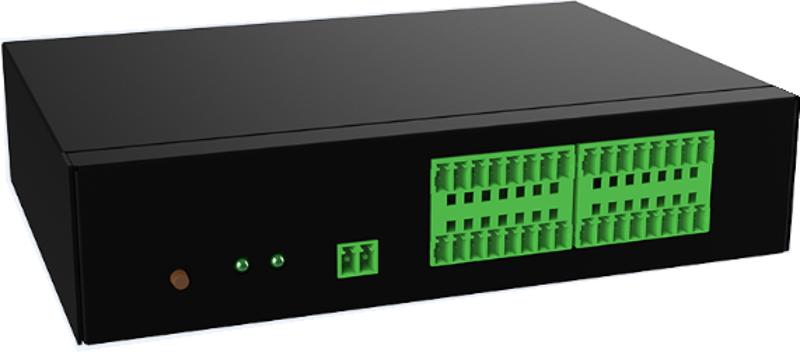

RSC-2100-B
Interface Converter
RSC-2100-B 屬海康威視專業產品。傑成系統有限公司（香港防盜）為海康威視產品經銷商，可按項目報價供應；安裝範圍視乎項目另行確認。查詢請聯絡我們。規格以原廠資料為準。
規格
Interface
| Ethernet Interface | 1 RJ45 10M/100M self-adaptive Ethernet port(s) |
|---|---|
| Alarm | 16 input(s),16 output(s) |
| RS-485 | 1 RS-485 |
| Reset Key | Supported |
General
| Material | SECC |
|---|---|
| Power | DC 9 V to 12 V, 0.4 A, max. 5 W, two-core terminal block |
| Dimension | 157.3 mm × 111 mm × 36 mm (6.19" × 4.37" × 1.42") (L × W × H) |
| Package Dimension | 244 mm × 175 mm × 110 mm (9.61" × 6.89" × 4.33") (L × W × H) |
| Weight | Approx. 0.5 kg (1.1 lb.) |
| With Package Weight | Approx. 0.9 kg (1.98 lb.) |
| Operating Condition | -20 °C to 70 °C (-4 °F to 158 °F). Humidity 95% or less (non-condensing) |
| Storage Condition | -20 °C to 70 °C (-4 °F to 158 °F). Humidity 95% or less (non-condensing) |
Approval
| EMC | CE-EMC: EN 55032: 2015+A11:2020+A1:2020 EN 61000-3-3: 2013+ A1:2019+A2:2021 EN IEC 61000-3-2: 2019+A1:2021 EN 50130-4: 2011 +A1:2014 |
|---|---|
| Safety | CB: IEC 62368-1: 2014,CB: IEC 62368-1: 2018,CE-LVD: EN 62368-1: 2014+A11: 2017,CE-LVD: EN IEC 62368-1:2020 +A11:2020 |
| Environment | CE-RoHS: 2011/65/EU,WEEE: 2012/19/EU,Reach: Regulation (EC) No 1907/2006 |
