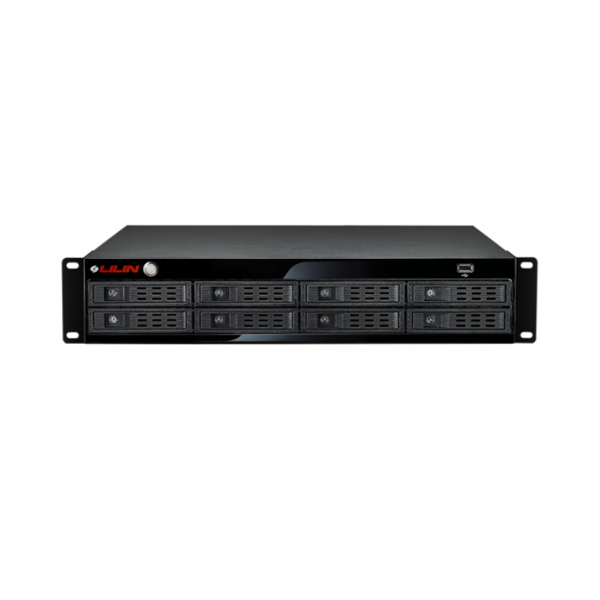

LILIN NAV08630
NAV Recorder
Features
- H.265/H.264/MJPEG Video format
- Dual streaming decoding mode supported
- Up to 72CH Recording (License separate purchase)
- 64CH Display (Dual-screen 480P 15fps)
- Support up to 8 × Hot-swap 3.5 Inch SATA HDD (Recording hard drive not included)
- Support RAID 0, 1, 5, 6, 10, 50
- Support failover up to 36 channel per server
- Support AI IP camera
- Support multi-channels synchronized playback (remote or local)
- Support Fisheye camera dewarping
- Built-in dual port 2.5GbE RJ-45 × 2
- Built-in 500W Power Supply
- 2U dimension for rackmount cabinet
Specifications
| Network video support | LILIN IP camera, LILIN IP camera over HTTPS, LILIN Fisheye camera, LILIN IP speed dome, LILIN DVR/ NVR, LILIN DHD recorder, NAV live streaming, P2P live streaming, ONVIF camera, manual RTSP, screen capture, USB video input, picture capture |
| Chassis | 2U Chassis |
| Network video input | Up to 72 channels 1080P / 3M / 4M / 5M / 8M /12M (License separate purchase) |
| Paired with AI IPCAM | 64 channels |
| Privacy Mask | Supported |
| HDMI output | 1 × HDMI Port 1.4, (4096 × 2160@60Hz) |
| Recording schedule | 7 days × 24 hrs time table, recording mode configurable |
| Recording resolution & framerate | Max 12MP@20fps, 8MP@30fps, 5MP@30fps, 4MP@30fps,3MP@30fps, 1080p@120fps, and ROI recording supported |
| Playback Search | Date, time, Smart search, Alarm search, POS, ANPR search,Face search, Face trace search (in FR server only), Tagging search |
| Playback resolution and framerate | Max 12MP@20fps, 8MP@30fps, 5MP@30fps, 4MP@30fps,3MP@30fps, 1080p@120fps |
| Playback Speed | Fast Rewind: 1/8, 1/4, 1/2, 1X, 2X, 4X, 8X, 16X, 32X FastForward: 1/8, 1/4, 1/2, 1X, 2X, 4X, 8X, 16X, 32X |
| CPU | Intel® Core™ i5-13500 |
| Memory | 32GB (1 × DDR4 32GB) |
| Chipset | Intel® H610 |
| Display card | Intel® UHD Graphics 770 |
| OS | Windows 11 IoT Enterprise 22H2 GAC |
| Power Consumption | 500W |
| Power Supply | 110V ~ 240V Redundant Power Supply |
| Operating Temperature | 0° C ~ 50° C(32° F ~ 122° F) |
| Storage Temperature | -20° C ~ 70° C(-4° F ~ 158° F) |
| Relative Humidity | 10% ~ 90% (non-condensing) |
| Dimensions | 88( H ) × 438 W ) × 452( D ) mm |
| Weight | 23.14 lbs (10.50kg) – Gross |
