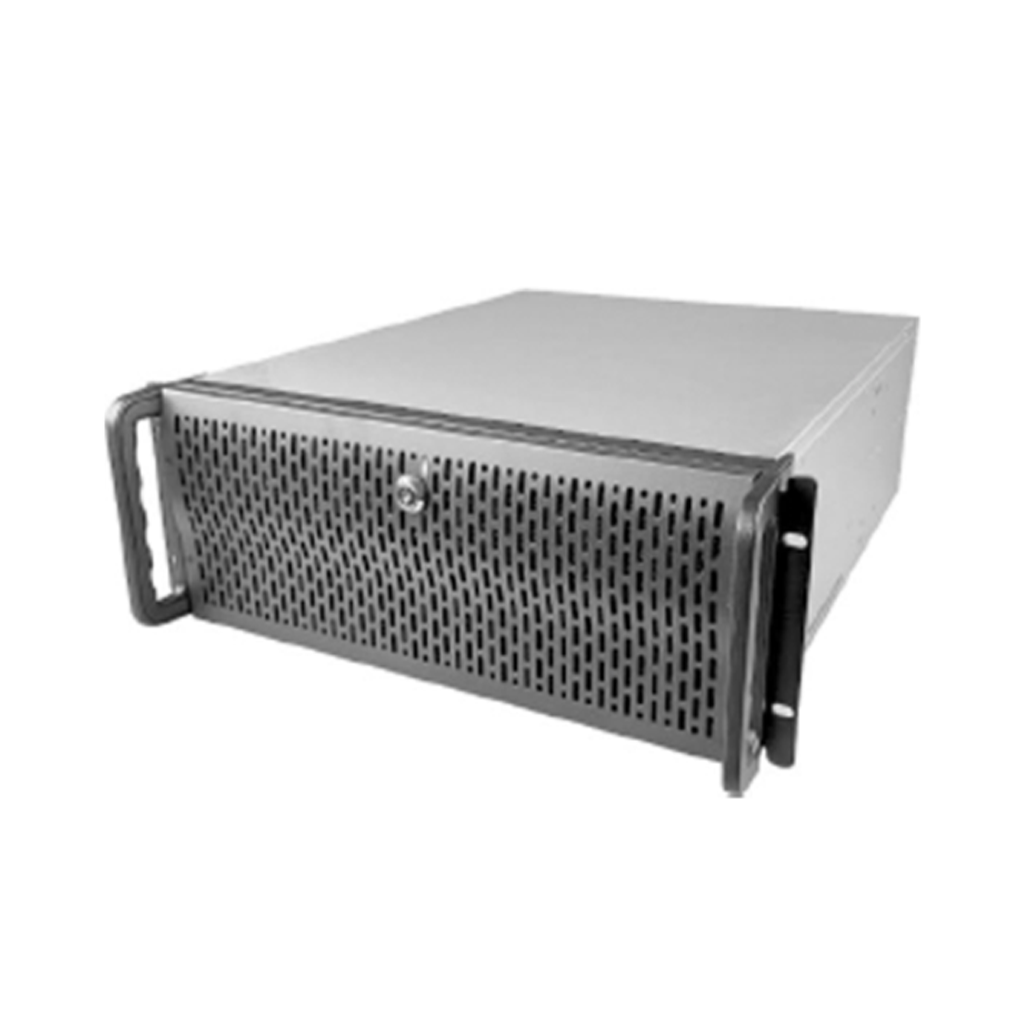

LILIN NAV5004EF
NAV Facial Recognition Recorder
Features
- H.265/H.264/MJPEG Video format
- Dual streaming decoding mode supported
- Up to 4CH Recording, 4CH Display (License separate purchase / Dual-screen 480P 15fps)
- Support up to 3 × 3.5 Inch SATA HDD (Recording hard drive not included)
- Support AI IP camera
- Support smart face recognition add and quick batch pictures import
- Support Exclusion list, allowed list, denied list and 123 other group.
- Support up to 30° ~45° degrees vertical angle and 40° ~50° side angle.
- Support Full search time for 10000 pictures database is under 100 ms.
- Up to 4 people faces per channel at normal walking speed without stopping 5 seconds in front of camera.
- Up to 99.82% recognition rate (based on LFW), Accuracy rate under 0.01% False Acceptance Rate (FAR) can reach up to 99.7%.
- Built-in dual port 2.5GbE RJ-45 × 2
- Built-in 1200W Redundant 1+1
- 4U dimension for rackmount cabinet
Specifications
| Network video support | LILIN IP camera, LILIN IP camera over HTTPS, LILIN Fisheye camera, LILIN IP speed dome, LILIN DVR/NVR, LILIN DHD recorder, NAV live streaming, P2P live streaming, ONVIF camera, manual RTSP, screen capture, USB video input, picture capture |
| Chassis | 4U Chassis |
| Network video input | Up to 4 channels 1080P / 3M / 4M / 5M / 8M / 12M |
| Privacy Mask | Supported |
| HDMI output | 1 × HDMI Port 2.0b, (3840 × 2160@60Hz) |
| Recording schedule | 7 days × 24 hrs time table, recording mode configurable |
| Recording resolution & framerate | Max 12MP@20fps, 8MP@30fps, 5MP@30fps, 4MP@30fps, 3MP@30fps, 1080p@120fps, and ROI recording supported |
| Playback Search | Date, time, Smart search, Alarm search, POS, ANPR search, Face search, Face trace search (in FR server only), Tagging search |
| Playback resolution and framerate | Max 12MP@20fps, 8MP@30fps, 5MP@30fps, 4MP@30fps, 3MP@30fps, 1080p@120fps |
| Playback Speed | Fast Rewind: 1/8, 1/4, 1/2, 1X, 2X, 4X, 8X, 16X, 32X Fast Forward: 1/8, 1/4, 1/2, 1X, 2X, 4X, 8X, 16X, 32X |
| CPU | Intel® Core™ i5-12500E |
| RAM | 64GB (2 × DDR4 32GB) |
| Chipset | Intel® Q670 |
| Display card | 1 × NVIDA RTX3060 |
| OS | Windows 11 IoT Enterprise 22H2 GAC |
| Power Supply | 110V ~ 240V |
| Operating Temperature | 0°C ~ 50°C(32°F ~ 122°F) |
| Storage Temperature | -20°C ~ 70°C(-4°F ~ 158°F) |
| Dimensions | 177 (H) × 482 (W) × 650 (D) mm |
| Color | Black |
| Weight | 35.27 lbs (16.0kg) – Net |
