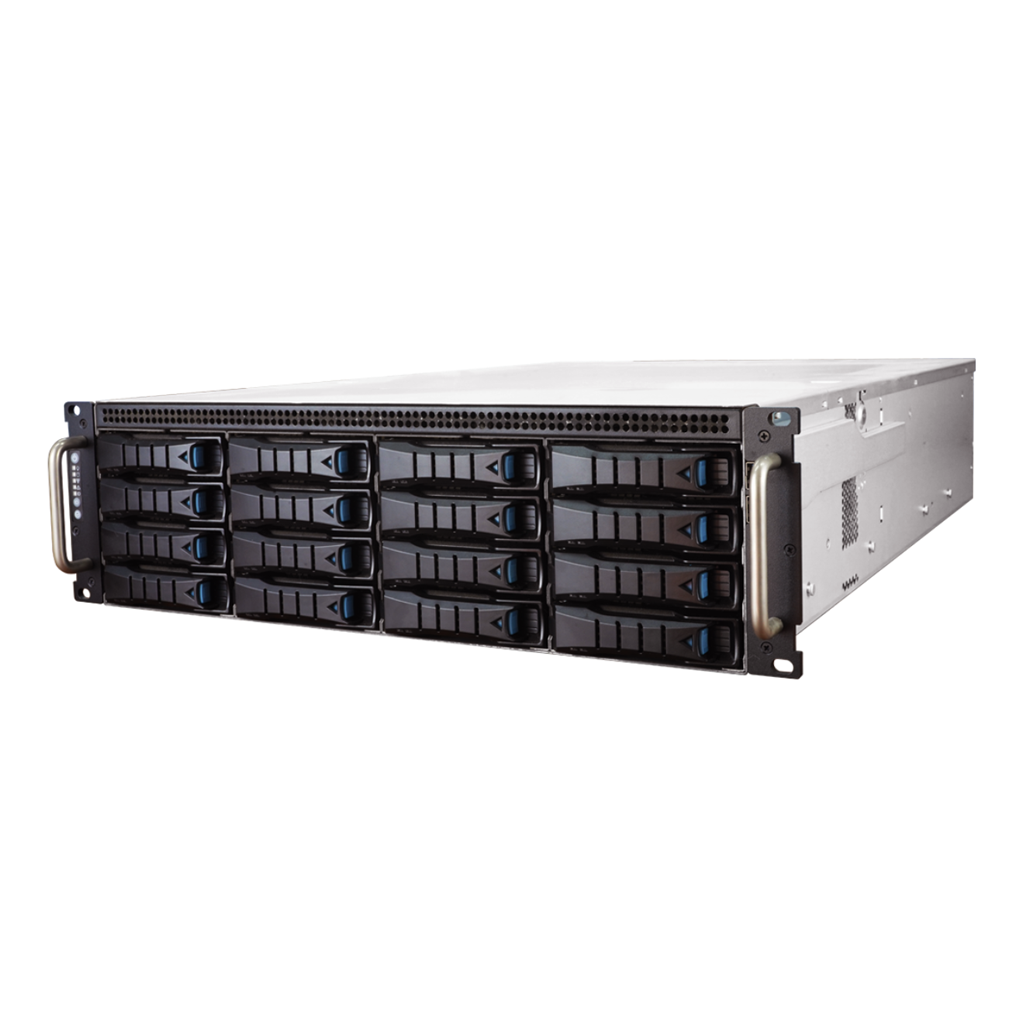

LILIN NAV1108C
NAV Recorder
Features
- H.265/H.264/MJPEG Video format
- Dual streaming decoding mode supported
- Up to 128CH Recording (License separate purchase)
- 36CH Display (Dual-screen 480P 15fps)
- Support up to 24 × Hot-swap 3.5 Inch SATA HDD (Recording hard drive not included)
- Support RAID 0, 1, 5, 6, 10, 50
- Support failover up to 36 channel per server
- Support AI IP camera
- Support multi-channels synchronized playback (remote or local)
- Support Fisheye camera dewarping
- Built-in dual port 1GbE RJ-45 × 1, 10GbE RJ-45 × 1
- Built-in 1200W Redundant 1+1
- 4U dimension for rackmount cabinet
Specifications
| Network video support | LILIN IP camera, LILIN IP camera over HTTPS, LILIN Fisheye camera, LILIN IP speed dome, LILIN DVR/NVR, LILIN DHD recorder, NAV live streaming, P2P live streaming, ONVIF camera, manual RTSP, screen capture, USB video input, picture capture |
| Chassis | 4U Chassis |
| Network video input | Up to 128 channels 1080P / 3M / 4M / 5M / 8M / 12M (License separate purchase) |
| Privacy Mask | Supported |
| Playback Search | Date, time, Smart search, Alarm search, POS, ANPR search, Face search, Face trace search (in FR server only), Tagging search |
| Playback resolution and framerate | Max 12MP@20fps, 8MP@30fps, 5MP@30fps, 4MP@30fps, 3MP@30fps, 1080p@120fps |
| Playback Search | Date, time, Smart search, Alarm search, POS, ANPR search, Face search, Face trace search (in FR server only), Tagging search |
| CPU | Intel® Xeon® Silver 4208 |
| RAM | 32GB (2 × DDR4 16GB) |
| Chipset | Intel® C621 |
| Display card | 1 × RTX 3060 |
| OS | Windows 11 IoT Enterprise 22H2 GAC |
| Power Consumption | 1200W |
| Power Supply | 110V ~ 240V Redundant Power Supply |
| Operating Temperature | 0°C ~ 50°C(32°F ~ 122°F) |
| Storage Temperature | -20°C ~ 70°C(-4°F ~ 158°F) |
| Relative Humidity | 10% ~ 90% (non-condensing) |
| Dimensions | 177 (H) × 430 (W) × 680 (D) mm |
| Color | Black |
| Weight | 81.6 lbs (37kg) – Gross |
