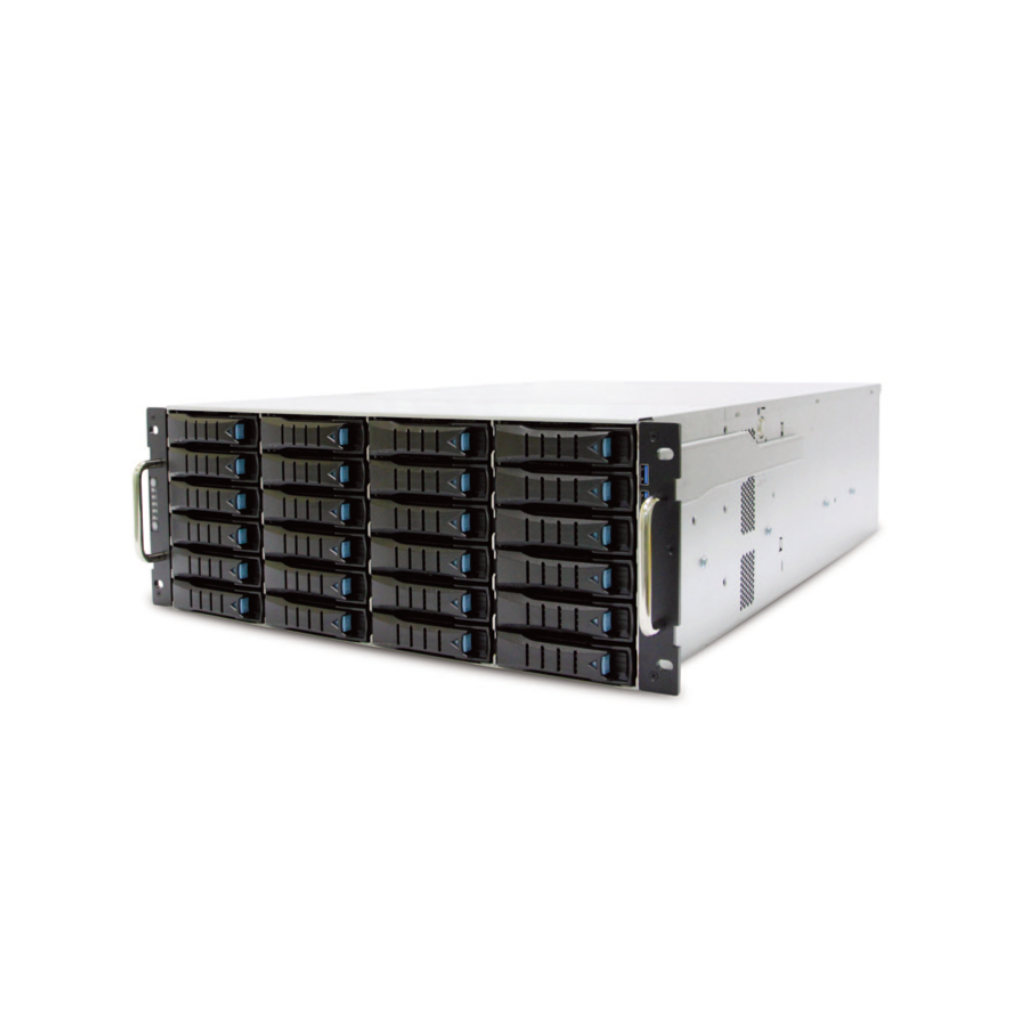

LILIN NAV24630

NAV Recorder

H.265/H.264/MJPEG Video format
Dual streaming decoding mode supported
Up to 128CH Recording (License separate purchase)
64CH Display (Dual-screen 480P 15fps)
Support up to 24 × Hot-swap 3.5 Inch SATA HDD (Recording hard drive not included)
Support RAID 0, 1, 5, 6, 10, 50
Support failover up to 36 channel per server
Support AI IP camera
Support multi-channels synchronized playback (remote or local)
Support Fisheye camera dewarping
Built-in dual port 2.5GbE RJ-45 × 2
Built-in 1200W Redundant 1+1
4U dimension for rackmount cabinet

Network video support	LILIN IP camera, LILIN IP camera over HTTPS, LILIN Fisheye camera, LILIN IP speed dome, LILIN DVR/NVR, LILIN DHD recorder, NAV live streaming, P2P live streaming, ONVIF camera, manual RTSP, screen capture, USB video input, picture capture
Chassis	4U Chassis
Network video input	Up to 128 channels 1080P / 3M / 4M / 5M / 8M / 12M (License separate purchase)
Privacy Mask	Supported
HDMI output	2 × HDMI Port 2.1, (4096 × 2160@60Hz)
Recording schedule	7 days × 24 hrs time table, recording mode configurable
Recording resolution & framerate	Max 12MP@20fps, 8MP@30fps, 5MP@30fps, 4MP@30fps, 3MP@30fps, 1080p@120fps, and ROI recording supported
Playback Search	Date, time, Smart search, Alarm search, POS, ANPR search, Face search, Face trace search (in FR server only), Tagging search
Playback resolution and framerate	Max 12MP@20fps, 8MP@30fps, 5MP@30fps, 4MP@30fps, 3MP@30fps, 1080p@120fps
Playback Speed	Fast Rewind: 1/8, 1/4, 1/2, 1X, 2X, 4X, 8X, 16X, 32X Fast Forward: 1/8, 1/4, 1/2, 1X, 2X, 4X, 8X, 16X, 32X
CPU	Intel® Core™ i5-13500
RAM	32GB (2 × DDR4 16GB)
Chipset	Intel® B760
Display card	Intel® UHD Graphics 770
OS	Windows 11 IoT Enterprise 22H2 GAC
Power Consumption	1200W
Power Supply	110V ~ 240V Redundant Power Supply
Operating Temperature	0°C ~ 50°C(32°F ~ 122°F)
Storage Temperature	-20°C ~ 70°C(-4°F ~ 158°F)
Dimensions	177 (H) × 430 (W) × 680 (D) mm
Color	Black
Weight	81.6 lbs (36kg) – Gross
