POWERCOM-ATS
ATS Others
POWERCOM-ATS 屬POWERCOM不斷電系統（UPS）產品。傑成系統有限公司（香港防盜）為POWERCOM產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。UPS 可為閉路電視錄影機、門禁控制器、網絡設備及伺服器提供後備電源，方案可參考Server Room 架設及維修。規格以原廠資料為準。
產品說明

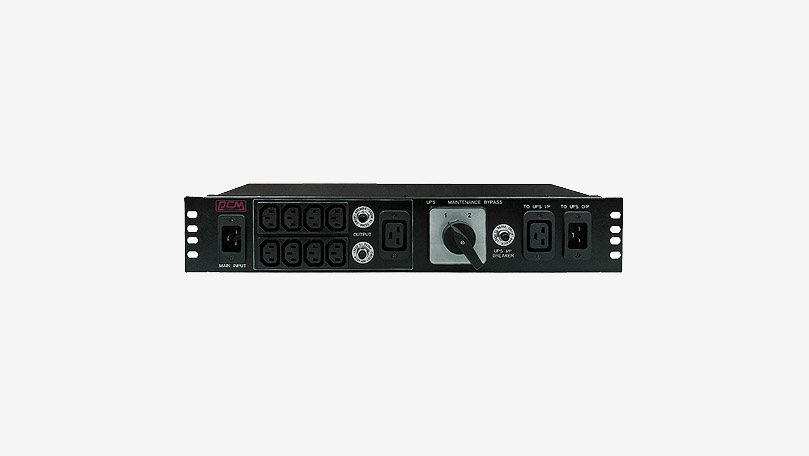

POWERCOM ATS (Auto Transfer Switch) allow UPS electronic load to utility power by seamless transfer process. ATS are suitable to apply on data center, telecom system and rack mounting system. POWERCOM ATS (Auto Transfer Switch) allows UPS removal without turning off loads and keep connected equipment operating continuously during routine maintenance such as adding new UPS, replacing battery. ATS allows connection for the normal utility or generator power via selector switch (Option).Auxiliary output can be used to power items such as battery heater mats eliminating the need for additional complex wiring. POWERCOM ATS (Auto Transfer Switch) keeps electronic load providing on connected equipment during routine maintains, is the best choice for data center, telecom system and other rack mounting system.
- Automatic Transfer Switch
- Power Uninterrupted during UPS Maintenance
- Wall / shelf mounting bracket
- Bypass Switch for Complete Maintain or Removal
- Auxiliary Output Provided (eg Battery Heater Mats)
- Terminal Block for Line Power and Loads
型號：ATS
規格
| Model | |||||
|---|---|---|---|---|---|
| Model | ATS | INPUT | |||
| Nominal Voltage | 120 Vac / 30 A | 230 Vac / 10 A | 230 Vac / 16 A | 230 Vac / 30 A | |
| Voltage Range | 110 – 130 Vac | 199 – 262 Vac | |||
| Transfer Time | Auto Transfer Switch | 10 ms | |||
| Manual Bypass Switch | 16 ms (Typical) Depend on hand switch speed) | Connection | |||
| Main Input | Terminal Block | IEC – C14 | IEC – C20 | Terminal Block | |
| Main Output | Terminal Block | IEC – C13 * 12pcs | IEC – C13 * 8pcs IEC – C19 * 1 pcs |
Terminal Block IEC – C13 * 8pcs |
|
| Auxiliary Receptacle | 5 – 15 Receptacles | N / A | |||
| UPS Connection (To UPS I/P) | Terminal block, Powercord Anderson PP45 quick connector |
IEC-C13 | IEC-C19 | Terminal block | |
| UPS Connection (To UPS O/P) | IEC-C14 | IEC-C20 | PHYSICAL | ||
| Dimensions(WxDxH)(mm) | 485 x 130 x 85 | ||||
| Weights(Kgs) | 2.6 | ||||
| Mounting | 2U Rack Mount | OPTION | |||
| Bypass Control | 24VDC or 48VDC or N/A | N/A | |||
