描述

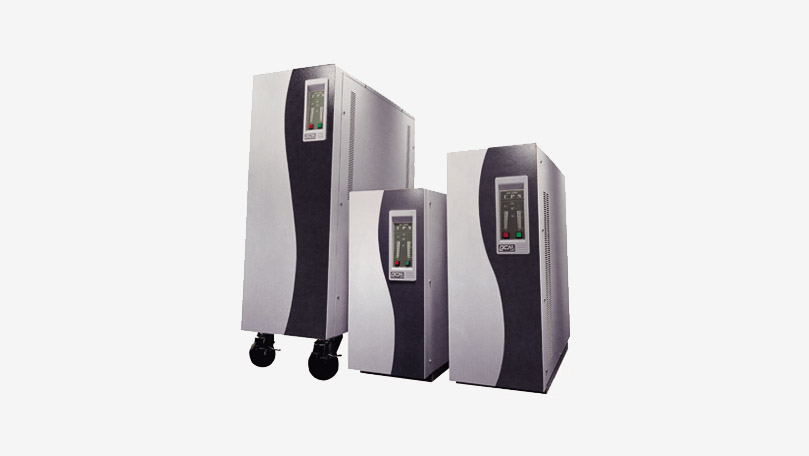

POWERCOM-ONL
ONL – ON Line ON – Line UPS
POWERCOM-ONL 屬POWERCOM不斷電系統（UPS）產品。傑成系統有限公司（香港防盜）為POWERCOM產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。UPS 可為閉路電視錄影機、門禁控制器、網絡設備及伺服器提供後備電源，方案可參考Server Room 架設及維修。規格以原廠資料為準。
產品說明
POWERCOM ONL series high performance on line UPS model, are the best choice for data center, telecom system and industrial application. POWERCOM ONL series with advanced IGBT inverter design, upgraded UPS efficiency. Double inverter topology is apply on ONL series, it eliminate fluctuate input voltage problem and provide stable high quality power for connected device. POWERCOM ONL model with clear LED indicator shows up UPS status；audible alarm reminds UPS warming；generator compatible design for power support. ONL UPS with upgraded UPS topology, strong tech application are the best choice for data center, telecom system and industrial usage.
- On-Line UPS with In-built Transformer Design
- Pure Sinewave and Single-Phase Output
- Widened Input Voltage Range
- Advance Battery Management (ABM)
- Industrial and Generator Compatible
- Design for advanced electronic device
- ONL – 3750 / 6250 / 7500 / 10K / 15K
型號：ONL-3750S、ONL-6250S、ONL-7500S、ONL-10KS、ONL-15KS
規格
| UPS | ||||||
|---|---|---|---|---|---|---|
| Model | ONL-3750S | ONL-6250S | ONL-7500S | ONL-10KS | ONL-15KS | |
| Capacity (VA) | 3750 | 6250 | 7500 | 10K | 15K | |
| Capacity (Watts) | 3000 | 5000 | 6000 | 8000 | 12K | |
| Form | Tower | |||||
| Phase | Single Phase | INPUT | ||||
| Voltage | 110 or 220 Vac | |||||
| Voltage Range | 82 ~ 137 or 165 – 275 Vac | |||||
| Frequency | 50 / 60 Hz | |||||
| Frequency Range | 45 – 65 Hz | OUTPUT | ||||
| Inverter Voltage | 110 / 115 / 120 Vac or 220 / 230 / 240 Vac | |||||
| Inverter Frequency | 50 / 60 Hz | |||||
| Output Power Factor | 0.8 – 1.0 Lagging | |||||
| Voltage Precision | ±1% (100% linear load) | |||||
| Output THDv | < 3% (linear load) | |||||
| Inverter Overload | < 125% continue working 125% to 150%, 20 seconds > 150% for 10 cycles | |||||
| Frequency Regulation | 50 / 60Hz ±0.1% | |||||
| Synchronized Range | Default Range : ±5Hz | |||||
| Synchronized Slew Range | Default Range : ±1Hz/s | BATTERY and CHARGER | ||||
| Model | ONL-3750S | ONL-6250S | ONL-7500S | ONL-10KS | ONL-15KS | |
| Battery Voltage | 220VDC (12V 16pcs) | |||||
| Charger Voltage Precision | 1% | |||||
| Charger Power | 1.5A | 3A | EFFICIENCY | |||
| Normal Operation | > 84% | > 85% | ||||
| Battery Operation | > 88% | > 90% | TRANSFER SWITCH | |||
| Inverter to Bypass | 0 ms | |||||
| Bypass to Inverter | 0 ms | |||||
| Transfer Efficiency | > 99% | ENVIRONMEMNTAL | ||||
| Operation Temperature | 0 – 40°C | |||||
| Storage Temperature | -15 – 60°C | |||||
| Relative Humidity | 0 – 95% (non condensing) | |||||
| Noise | < 55dBA | < 60dBA | ||||
| Altitude | Normal Load : < 1000m | PHYSICAL | ||||
| Dimensions(WxDxH)(mm) | 265 x 641 x 750 | 350 x 641 x 1010 | ||||
| Weights(Kgs) | 111.4 | 83.8 | 120.4 | 156.2 | 175 | |
| Indicator | LED or LCD Panel | SYSTEM | ||||
| Interface | Standard : RS232 Option : SNMP / Dry Contact |
|||||
| Other | Standard : Battery Cold Start | |||||
