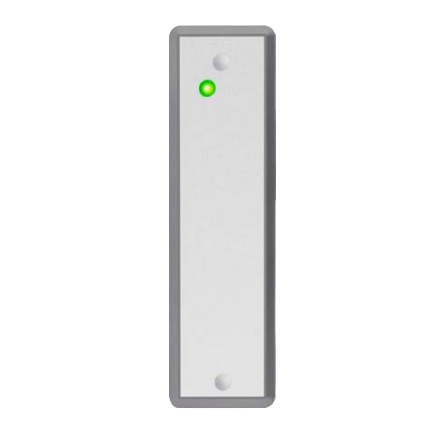

ROSSLARE AY-E20
Ultra-Slim Mullion PROX Reader
MAIN FEATURES
Ultra-slim flush-mount design on flat surface
Reading distance: 3.5 cm (1.37 in.)
Built-In 125 kHz ASK EM proximity card reader
Internal buzzer provides audible interface feedback
Bi-colored ultra bright LED indicator
Fully-potted, waterproof construction for outdoor use
Mounting template for easier installation
PROFESSIONAL GRADE FEATURES
Back tamper signal report in Wiegand format, with Rosslare’s AC-015, AC-020, AC- 115, & AC-215, AC-225 and AC-525
Selectable Card Transmission Formats: Wiegand 26-Bit, Clock & Data, or Serial RS-232 outpu
SPECIFICATIONS
| ELECTRICAL SPECIFICATIONS | |
| Operating Voltage Range | 5 to 16 VDC from a regulated power supply (power usually supplied from host controller) |
| Input Current | Standby: 40 mA @ 12 VDC Maximum: 100 mA @ 16 VDC |
| Tamper Output | Open collector, active low, 16 mA max sink current |
| Power Supply Type | Linear type recommended |
| Cable Distance to Host Controller | Up to 150 m (500 ft) using an 18-AWG cable |
| Proximity Card Read Range | 3.5 cm (1.37 in.) |
| Proximity Card Modulation | ASK at 125 KHz |
| Proximity Card Compatibility | EM cards |
| Card Transmit Format | Wiegand 26-Bit, Clock & Data, Serial RS232 |
| LED Indicator | One bi-colored LED |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Environment | Outdoor usage Weather-resistant, meets IP68, epoxy potted |
| Operating Temperature | -31°C to 63°C (-25°F to 145°F) |
| Operating Humidity | 0 to 95% (non condensing) |
| PHYSICAL SPECIFICATIONS | |
| Dimensions (H x W x D) | 155 x 45 x 8 mm (6.10 x 1.77 x 0.31 in.) |
| Weight | 135 g (4.76 oz) |
