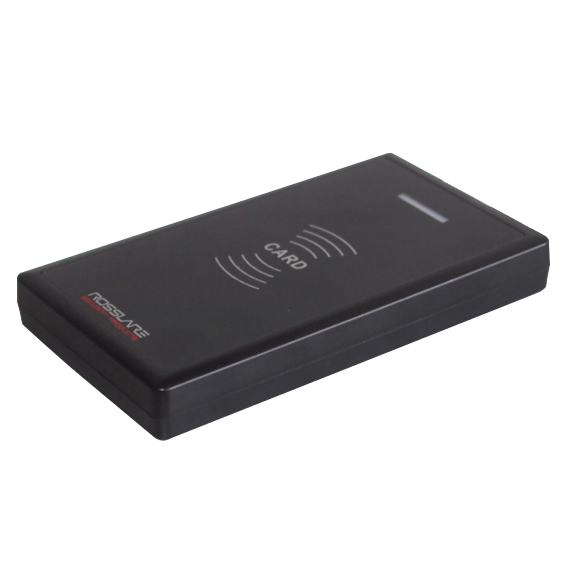

ROSSLARE DR-6255
CSN SELECT™ Desktop Enrollment Reader (Rev. B)
MAIN FEATURES
Read the CSN from the following smart cards:
ISO14443A – MIFARE® Ultralight® Nano / Ultralight EV1/ Ultralight C
– MIFARE Classic® / Classic EV1
– MIFARE Plus® S / SE / X / EV1
– MIFARE DESFire® EV1 / EV2
– NFC N–TAG / Card Emulation
ISO14443B – China National ID
ISO15693 – HID® iClass®, PicoPass, iCode, LEGIC
ISO18092 – SONY® FeliCa® (Hong Kong Octopus)
NFC Android smartphone is supported with the Android App for HCE (Host Card Emulation)
Selectable Wiegand output formats using the CS-HCT Hardware Configuration Tool for the DR-6255 application
PROFESSIONAL GRADE FEATURES
Built-in buzzer
USB 2.0 compliant and USB powered
Wiegand output format can be configured using a PC software, including Wiegand 26-Bit, 32-Bit, 32-Bit (reverse), 34-Bit, 40-Bit, 56-Bit, and 64-Bit outputs
Uses standard drivers that support the following operating systems:
Windows XP (32-Bit and 64-Bit)
Windows 7 (32-Bit and 64-Bit)
Windows 8 (32-Bit and 64-Bit)
Windows 10 (32-Bit and 64-Bit)
SPECIFICATIONS
ELECTRICAL SPECIFICATIONS
| Operating Voltage Range Standby Current @ 5 V | 5 VDC (USB powered) 90 mA |
| Maximum Current @ 5 V | 30 mA |
| Read Range | 5 cm (2 in.) |
| Reader Data Output Format USB Cable Length | Appears a COM port device when connected to a PC. The standard reader outputs the Wiegand CSN data in Wiegand 26-Bit format. Other Wiegand formats are selectable using the DR-6255 Hardware Configuration Tool PC software. 150 cm (59 in.) |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Environment Operating Temperature Range | Indoor use 0°C to 63°C (32°F to 145°F) |
| Operating Humidity Range | 0% to 95% (non-condensing) |
| MECHANICAL SPECIFICATIONS | |
| Dimensions (H x W x D) | 123.0 x 70.0 x 16.2 mm (4.9 x 2.8 x 0.7 in.) |
| Weight | 130 g (4.6 oz.) |
| SYSTEM COMPONENTS | Compatible with a Rosslare’s AxTraxNG™, as well as many thirdparty access control software. |
