ROSSLARE AY-R12 是ROSSLARE門禁讀頭，用於層門或通道。香港防盜為安裝商及經銷商。卡種及讀距以原廠規格書為準。

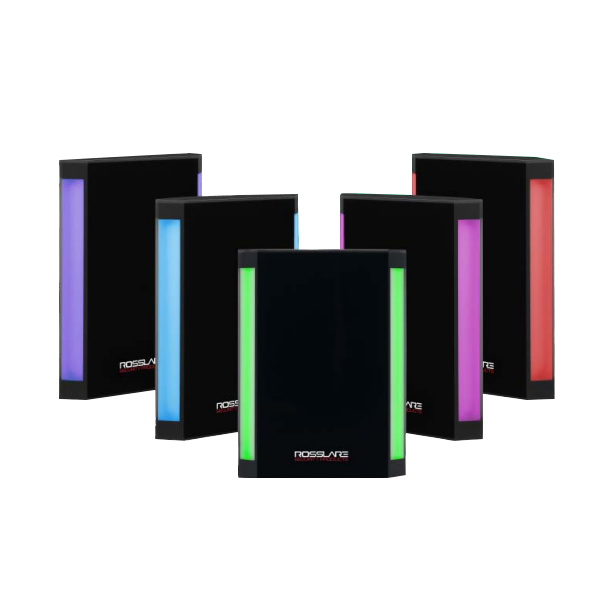

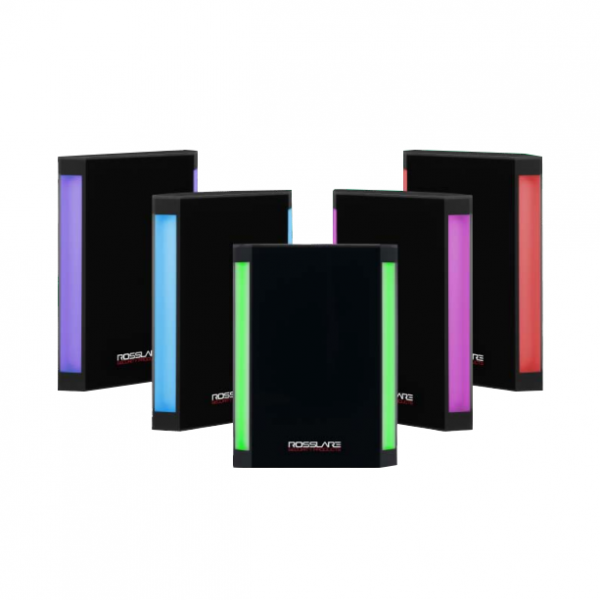

ROSSLARE AY-R12
Outdoor RGB Illuminated Reader
MAIN FEATURES
Stylish and practical application adds color to any environment enabling high quality high-tech atmosphere
Seven different colors to create a unique ambience
16 pre-programmed color schemes, enabled using 4 wired inputs
Optical back tamper sends a signal to the control panel when removed from wall or housing opened
Built-in 125 kHz reader for EM type RFID cards with a read range of up to 8 cm (3.1 in.)
SPECIFICATIONS
| ELECTRICAL SPECIFICATIONS | |
| Operating Voltage Range | 12–16 VDC |
| Power Supply Type | Linear type (recommended) |
| Input Current | Standby: 100 mA Read: 150 mA |
| Tamper Output | Open collector, active low, max. sink current 150 mA |
| Maximum Read Range | 8 cm (3.1 in.) |
| Maximum Cable Distance to Controller | 150 m (500 ft) |
| Output Format | Wiegand 26-Bit |
| RF Modulation | ASK @ 125 kHz |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Temperature Range | -31ºC to 63ºC (-25ºF to 145ºF) |
| Operating Humidity Range | 0% to 95% (non-condensing) |
| PHYSICAL SPECIFICATIONS | |
| Dimensions (H x W x D) | 120 x 89 x 21 mm (4.7 x 3.5 x 0.8 in.) |
| Weight | 202 g (7.1 oz) |
