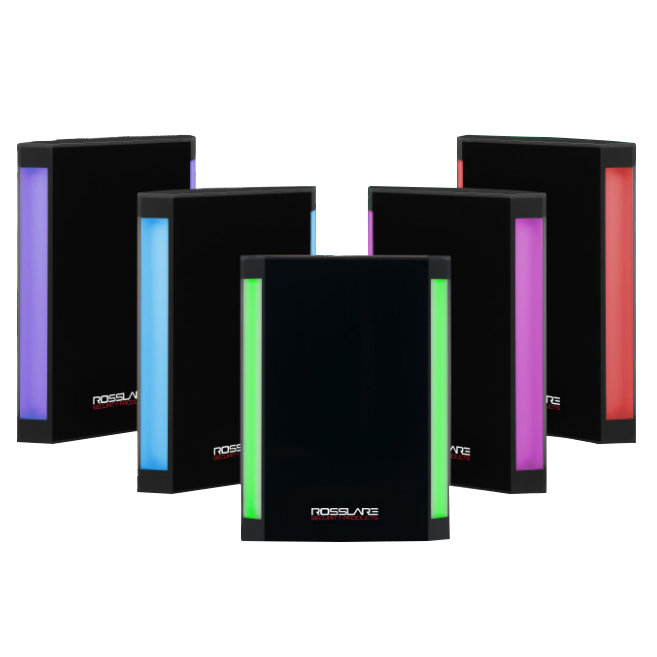

ROSSLARE AY-R6255
Illuminated CSN SELECT™ Smart Card Reader (Rev. B)
MAIN FEATURES
Read the CSN from the following smart cards:
ISO14443A – MIFARE® Ultralight® Nano /
Ultralight EV1/ Ultralight C
– MIFARE Classic® / Classic EV1
– MIFARE Plus® S / SE / X / EV1
– MIFARE DESFire® EV1 / EV2
– NFC N–TAG / Card Emulation
ISO14443B – China National ID
ISO15693 – HID® iClass®, PicoPass™, iCode, LEGIC
ISO18092 – SONY® FeliCa® (Hong Kong Octopus
NFC Android Smartphone is supported with the
Android App for HCE (Host Card Emulation)
Multiple mounting options including micromullion, mullion, US gangbox and UK/Asia gangbox
Supports unique illumination for notifications
Selectable Wiegand output formats using the
CS-CCT Card Configuration Tool
PROFESSIONAL GRADE FEATURES
Sleek and modern design
Customizable control and status lines available
with CS-CCT Card Configuration Tool
Optical wall tamper detection
IP65 rated and made of tough polycarbonate
UV-resistant plastic
Comes with mounting template and installation
kit for easy installation
SPECIFICATIONS
ELECTRICAL SPECIFICATIONS
Operating Voltage Range | 8 ~ 16 VDC, from a regulated power supply |
Standby Current @12V Maximum Current @12V | 160 mA 180 mA |
Tamper Output | Open collector, active low, max. sink current 16 mA |
Control Inputs | Dry Contact, N.O. |
Reader Data Output Formats | Selectable Wiegand output formats using the CS-CCT Card Configuration Tool |
ENVIRONMENTAL SPECIFICATIONS | |
Operating Environment | Weather-resistant, UV-resistant, meets IP65, epoxy-potted, suitable for indoor and outdoor use |
Operating Temperature Range | -35°C to 66°C (-31°F to 150°F) |
Operating Humidity Range | 0% to 95% (non-condensing) |
PHYSICAL SPECIFICATIONS | |
Dimensions (H x W x D) | 120.0 x 89.0 x 20 mm (4.7 x 3.5 x 0.8 in.) |
Weight | 208 g (7.3 oz) |
SYSTEM COMPONENTS | The AY-R6255 reader is compatible with a variety of Rosslare controllers, as well as with many third-party access control systems supporting Wiegand |
