ROSSLARE MD-12C/W 是ROSSLARE門禁讀頭，用於層門或通道。香港防盜為安裝商及經銷商。卡種及讀距以原廠規格書為準。

相關方案：門禁系統、辦公室方案。選型可先參閱以上方案頁；原廠規格見下方。

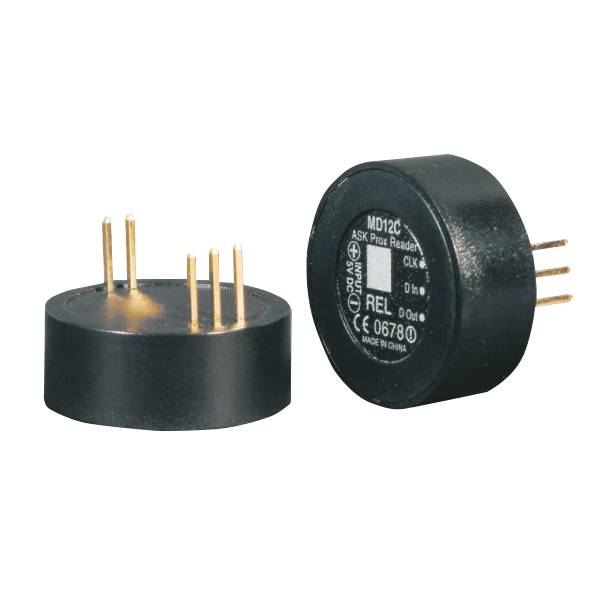

ROSSLARE MD-12C/W

OEM Proximity Reader Module

MAIN FEATURES

Tiny footprint – 22 mm (0.43 in.) in diameter
 Small height – 9.5 mm (0.37 in.)
 Wiegand 26-Bit protocol (MD-12W)
 Clock & Data output Rosslare format (MD12C)
 Direct mounting on PCB

SPECIFICATIONS

ELECTRICAL SPECIFICATIONS
Operating Voltage Range	4.5 to 5 VDC (from a linear type power supply)
Standby Input Current	36 mA
Proximity Card Reader	Maximum read range*: 50 mm (2 in.) Modulation: ASK at 125 kHz
ENVIRONMENTAL SPECIFICATIONS
Operating Temperature	-31ºC to 63ºC (-25ºF to 145ºF)
Operating Humidity	0% to 95% (non-condensing)
OUTPUT FORMATS
Formats	MD-12C: Clock & Data MD-12W : Wiegand 26-Bit
PHYSICAL SPECIFICATIONS
Dimensions	Radius: 11 mm (0.43 in.); depth 9.5 mm (0.37 in.)
Weight	5 g (0.18 oz)
