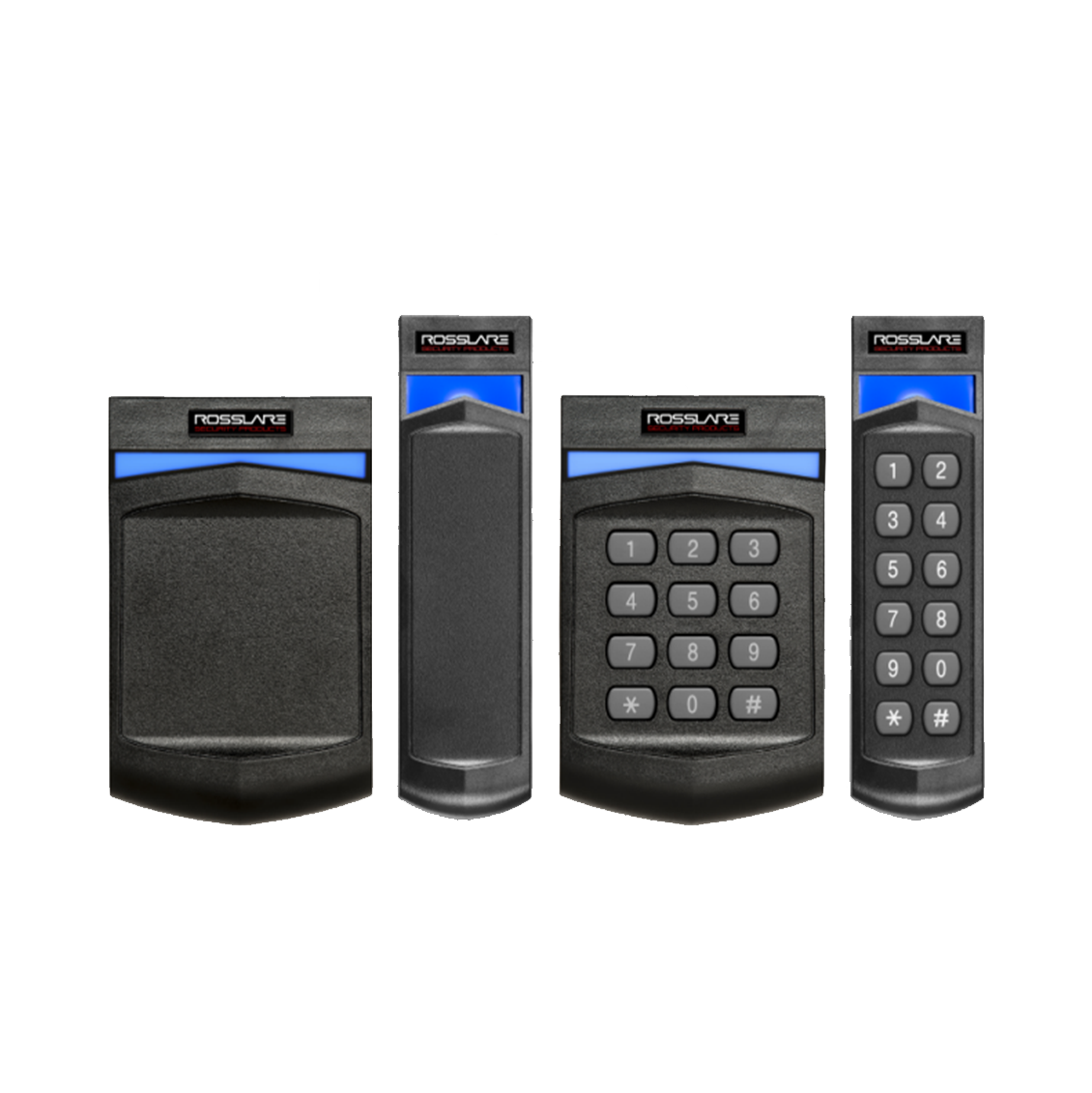

ROSSLARE AY-x6x80

描述

ROSSLARE AY-x6x80

Open to Secure (O2S) Readers



Main Features

• Contactless smart card reader (13.56 MHz)
• Meets ISO14443 Type A Standard
• AES 128-bit encryption during transmission
• Uses NXP SAM AV2 for identity and communication cryptography
• Supports OSDP V2 including secure channel using AES 128 bit encryption for improved security
• Reads O2S ID data from O2S credentials
• Reads CSN of non-O2S credentials
• Output formats:
• Wiegand (per format on O2S credential)
• OSDP via RS-485 (selected models)
• RGB multicolor light indicator
• Blue backlit tact switch keypad
• IP68 water and dust resistant for AY-x6280 pigtail models
• IP65 water and dust resistant for AY-x6280 terminal block models and AY-x6380 models
• IK08 vandal resistant for all AY-x6x80 models
• Optical back tamper sensor
• Two LED control and buzzer control inputs
• Pigtail or terminal block connectivity
• Antimicrobial technology reduces level of microbes on reader by up to 99.99%.



Specifications

Operating Voltage Range: 6 to 16 VDC

Input Current at 12V:       Standby: 85 mA, Maximum: 110 mA

LED Control:  Two Inputs: Green LED CTL and RED LED CTL – TTL

Auxiliary Input: Buzzer CTL or Hold CTL – TTL

Auxiliary Output: Tamper Output (OC, active low, max. sink current 30 mA)

Supported Protocol: Wiegand OSDP Secure Channel V2

Operating Temperature:  -31ºC to 63ºC (-24ºF to 145ºF)

Operating Humidity Range:  0% to 95% (non-condensing)

Outdoor Usage: Weather-resistant, epoxy potted, suitable for outdoor use

Operating Environment:

UV-resistant, epoxy-potted, suitable for indoor and outdoor use
• IP68 water and dust resistant
• AY-G6280 and AY-H6280 pigtail models
• IP65 water and dust resistant
• AY-G6280 and AY-H6280 terminal block models
• AY-G6380 and AY-H6380

Vandal Resistance: IK08

Antimicrobial efficacy: Inhibits bacteria proliferation by up to 99.9%



Dimensions of Pigtail Models(H x W x D):

AY-G6x80: 145.3 x 42.0 x 23.0 mm (5.7 x 1.7 x 0.9 in.)
AY-H6x80: 120.0 x 80.0 x 23.0 mm (4.7 x 3.2 x 0.9 in.)



Dimensions of Terminal Block and OSDP Models (H x W x D):

AY-G6x80: 145.3 x 42.0 x 31.0 mm (5.7 x 1.7 x 1.2 in.)
AY-H6x80: 120.0 x 80.0 x 31.0 mm (4.7 x 3.2 x 1.2 in.)



Weight:

AY-G6x80: 155 g (5.5 oz)
AY-H6x80: 217 g (7.7 oz)
