描述
ROSSLARE AY-T6350 是ROSSLARE門禁讀頭，用於層門或通道。香港防盜為安裝商及經銷商。卡種及讀距以原廠規格書為準。

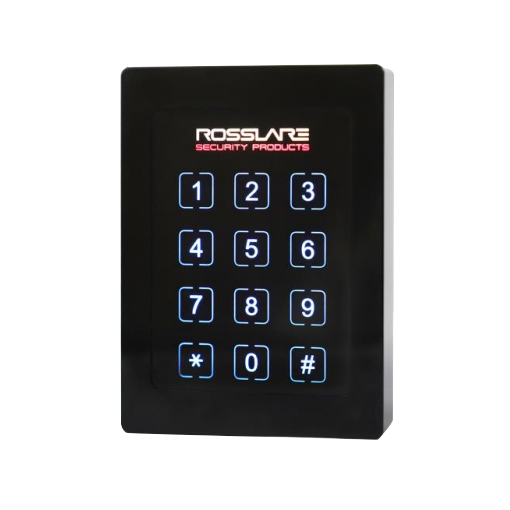

ROSSLARE AY-T6350
MIFARE Classic® EV1 Contactless Smartcard Reader with Backlit Touch Keys
MAIN FEATURES
▪ Incorporates the MIFARE Classic and MIFARE Ultralight ID Format Protocol
▪ Read range of up to 70 mm (2.8 in.)
▪ Backlit 3×4 keypad
▪ 8 programmable Proximity Card transmission formats, Wiegand 26- to 40-Bit or Clock & Data
▪ Smooth, attractive, and elegant industrial design
▪ Selectable LED control or buzzer control functions
▪ Made from tough polycarbonate plastic for improved performance in all weather conditions
PROFESSIONAL GRADE FEATURES
▪ Optical tamper sensor for cover and wall tamper detection
▪ 8 programmable PIN transmission formats for data and credential entry options
▪ Card + PIN mode for higher security
▪ Door bell key feature
▪ Weather-resistant with epoxy potting
▪ One tri-colored LED and integral sounder for programming and operation
▪ Programmable facility code
▪ Installation kit includes template label, security screw, and tool
▪ 60 cm (23.6 in.) 6-wire interface cable
SPECIFICATIONS
ELECTRICAL SPECIFICATIONS
| Operating Voltage Range | 8–16 VDC, from a linear type Power Supply (18 VDC is absolute maximum) |
| Input Current | Standby: 180 mA @ 12 VDC Maximum: 235 mA @ 12 VDC |
| Tamper Output | Open collector, active low, maximum sink current is 32 mA |
| OPERATIONAL SPECIFICATIONS | |
| LED Control Input | N.O., Dry Contact |
| Capacitive Touch Keypad | 3×4 red backlit keys for PIN codes entry and local programming door bell key |
| Built-In Reader | Maximum read range: 70 mm (2.8 in.) Operating frequency: 13.56 MHz Compatible Cards: MIFARE Classic and MIFARE Ultralight cards |
| PIN Code Formats
Card Output Formats |
8 selectable formats, from single to 8-digit PIN codes
▪ Card Output Formats 8 selectable formats: Wiegand 26-Bit with Facility code, 32-Bit, 32-Bit Reversed, 34- |
| Facility Code | Programmable 3-Digit |
| Indications and Sounds | Tri-colored light bar, built-in sounder with selectable LED/sounder control input |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Environment
Operating Temperature Range Operating Humidity Range |
Indoor and outdoor use (all weather)
-31°C to 63°C (-25°F to 145°F) 0 to 95% |
| RFI Protection | > 20 V/m up to 1000 MHz |
| PHYSICAL SPECIFICATIONS | |
| Dimensions (H x W x D) | 110 x 80 x 17.5 mm (4.3 x 3.2 x 0.7 in.) |
| Weight | 170 g (6 oz) |
