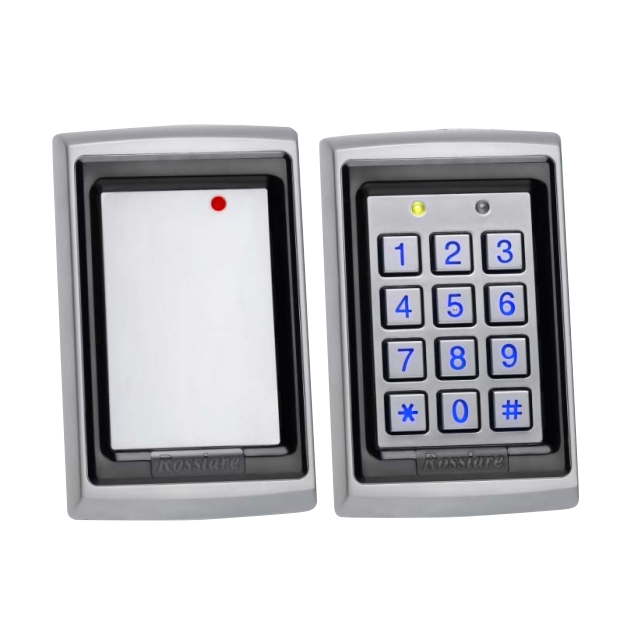

ROSSLARE AY-Q6x60
Anti-Vandal MIFARE Classic® EV1 Sector Reader Family
MAIN FEATURES
Advanced, secure, multi-application functionality for intelligent installations
Configurable multi output format, supports Wiegand 26-Bit format and many others
Easy to deploy in the field with the configuration card (Master card) for secure sector reading of data from the sectors
Multiple keypad transmission formats (AY-Q6360)
Compatible with CP-R25 USB Desktop CardProgrammer
PC software for Master and User Card configuration (AS-B01)
High strength design, epoxy potted, fully sealed within an all-metallic housing
PROFESSIONAL GRADE FEATURES
Reads MIFARE Classic EV1 ISO14443 Type A, Standard cards
Dedicated LED and buzzer control inputs
Optical tamper sensor for case and wall tamper detection
Fully compatible with MIFARE Classic® EV1 1K and 4K
Reads card’s serial number with MIFARE Classic EV1 Ultralight and MIFARE® DESFire®
Suitable for outdoor use and weather-resistant
SPECIFICATIONS
| ELECTRICAL SPECIFICATIONS | AY-Q6260 | AY-Q6360 |
| Operating Voltage Range | 5–16 VDC | |
| Standby Input Current | 110 mA | 160 mA |
| Maximum Input Current | 190 mA | 240 mA |
| Tamper Output | Open collector, active low, max. sink current 30 mA | |
| OPERATIONAL SPECIFICATIONS | ||
| Inputs | Programmable LED control / buzzer control Input, N.O, Dry Contact | |
| Indicators | Tri-Colored LED indicator | |
| Output Formats | Wiegand 26-Bit, Clock & Data, Wiegand 32-Bit, Wiegand 34-Bit, Wiegand 40-Bit | |
| Built-In Proximity Reader | Operating Frequency: 13.56 MHz MIFARE Classic EV1 Compatible ISO-14443A-3 | |
| Max. Proximity Read Range | 45 mm (1.8 in.) | |
| ENVIRONMENTAL SPECIFICATIONS | ||
| Operating Environment | Water resistant, suitable for outdoor use (meets IP65) | |
| Operating Temperature Range | -31°C to 63°C (-25°F to 145°F) | |
| Operating Humidity Range | 0% to 95% (non-condensing) | |
| MECHANICAL SPECIFICATIONS | ||
| Dimensions (H x W x D) | 125 x 83 x 29.5 mm (4.9 x 3.3 x 1.2 in.) | |
| Weight | 480 g (1.1 lb) | |
