描述
ROSSLARE AYC-F54 是ROSSLARE門禁讀頭，用於層門或通道。香港防盜為安裝商及經銷商。卡種及讀距以原廠規格書為準。

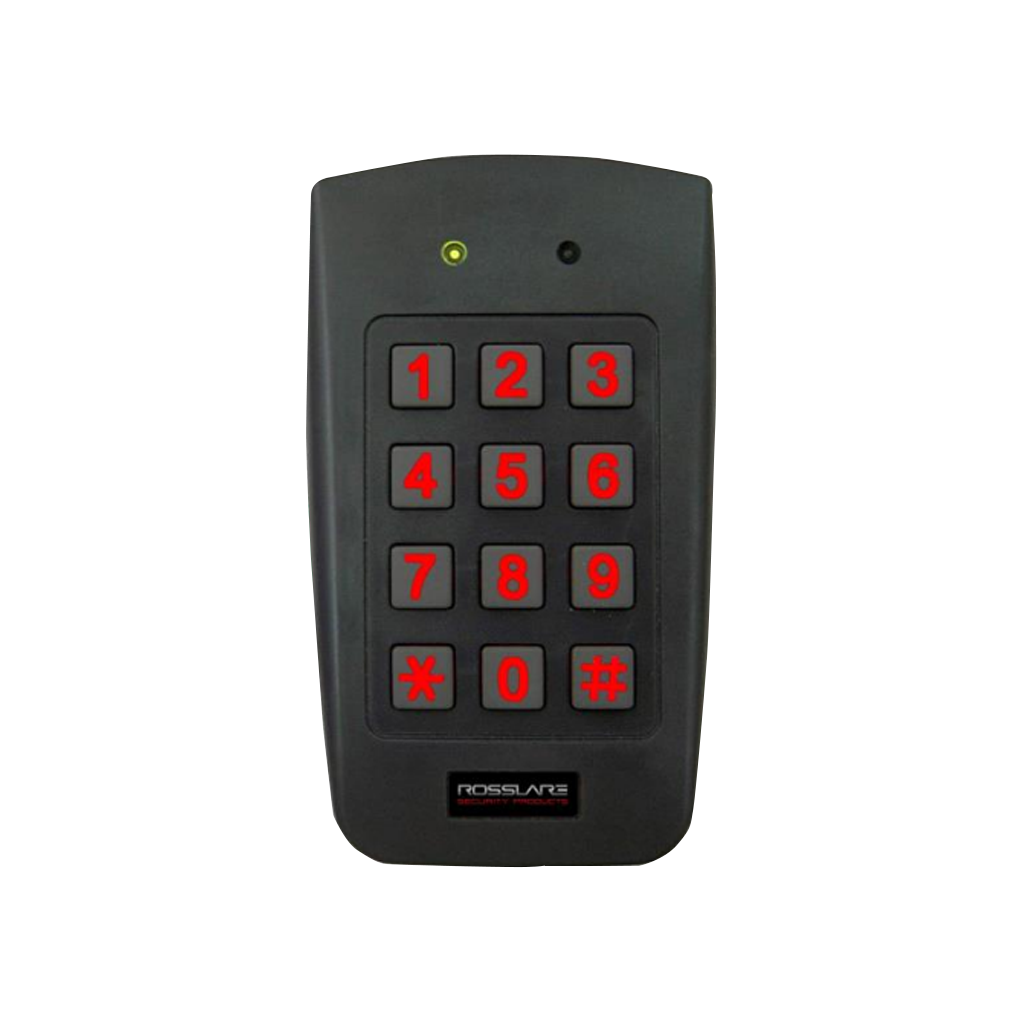

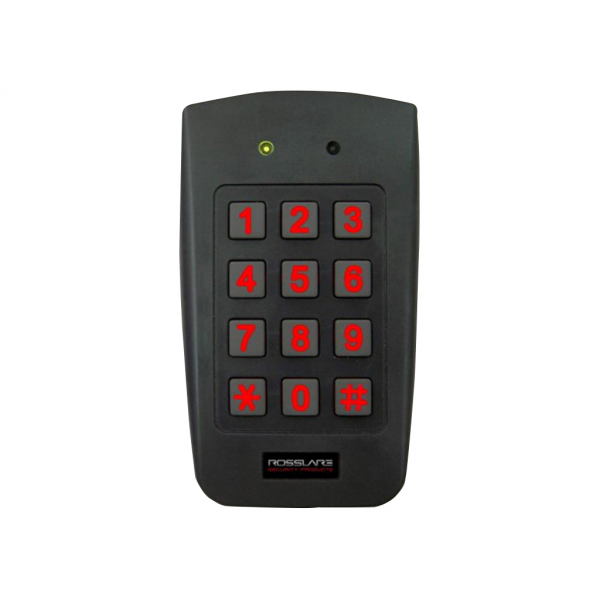

ROSSLARE AYC-F54
Convertible 3×4 Backlit PIN Reader/Controller
MAIN FEATURES
Supports 4- to 8-Digit PIN credentials
Smooth, attractive design, with all-weather indoor and outdoor operation
Large, high-visibility RED backlit keypad
2 tri-colored LEDs and an integral sounder for programming and operation
User-friendly menu, based on keypad, LED and sounder indicators
Back and cover optical tamper detection and output
Automatically recognizes Rosslare’s PS-x25T intelligent power supply family converting it into a 500-user standalone controller with secure relays
PROFESSIONAL GRADE FEATURES
8 selectable PIN transmission modes including options for key stream, binary, parity, and 3×4 matrix
Comes with a mounting and drilling label, security screw, and tool set to prevent unauthorized opening
60 cm (23.6 in.) shielded interface cable
SPECIFICATIONS
| ELECTRICAL SPECIFICATIONS | |
| Operating Voltage Range | Reader mode: 5 to 16 VDC from a standard controller Controller mode: PS-x25T series intelligent power supplies |
| Input Current | Standby: 75 mA at 12 VDC Maximum: 110 mA at 16 VDC |
| Tamper | Optical back tamper sensor, O.C. active low, 32 mA max. sink current |
| OPERATIONAL SPECIFICATIONS | |
| Keypad | 3×4 keypad for local programming and 4 to 8 digit PIN codes entry |
| Design | Epoxy-potted, fully-sealed in a rugged polycarbonate enclosure. Red illuminated rubber keys. Suitable for harsh environments. |
| Audio/Visual | Two tri-color LED indicators, built-in buzzer |
| READER MODE | |
| LED Control | Dry contact, N.O. |
| Facility Code | Programmable |
| PIN Code Formats | 8 selectable formats, from single to 8-digit PIN codes, including: – Wiegand 6-Bit or 8-Bit, nibble/parity options, optional Rosslare format – 1–5 keys, fixed 4 keys, 6 keys BCD w/Facility code, Wiegand 26-bit – 3×4 Matrix single key – 1 to 8 keys BCD, Clock & Data |
| CONTROLLER MODE available with PS-x25T series intelligent power supplies only | |
| Capacity | 500 users, single/dual PIN code each |
| User Levels | Normal, Secure, Master |
| Security Modes | Normal, Bypass, Secure |
| Outputs | Lock Strike output Auxiliary output (PS-x25T series) |
| Inputs | REX (Request to Exit) Auxiliary/Door Monitor with 10 programmable modes |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Environment | All weather, indoor and outdoor use, meets IP65 |
| Operating Temperature | -30˚C to 65˚C (-22˚F to 150˚F) |
| Operating Humidity | 0 to 95% |
| PHYSICAL SPECIFICATIONS | |
| Dimensions (H x W x D) | 120 x 76 x 21 mm (4.72 x 2.99 x 0.83 in.) |
| Weight | 215 g (0.47 lb) |
| SYSTEM COMPONENTS | AYC-F54 is compatible with standard access controllers in Reader mode. With Rosslare’s PS-x25T intelligent power supply series, it automatically converts into a 500-user secure controller. |
