描述
ROSSLARE AYC-Q64B 是ROSSLARE門禁讀頭，用於層門或通道。香港防盜為安裝商及經銷商。卡種及讀距以原廠規格書為準。

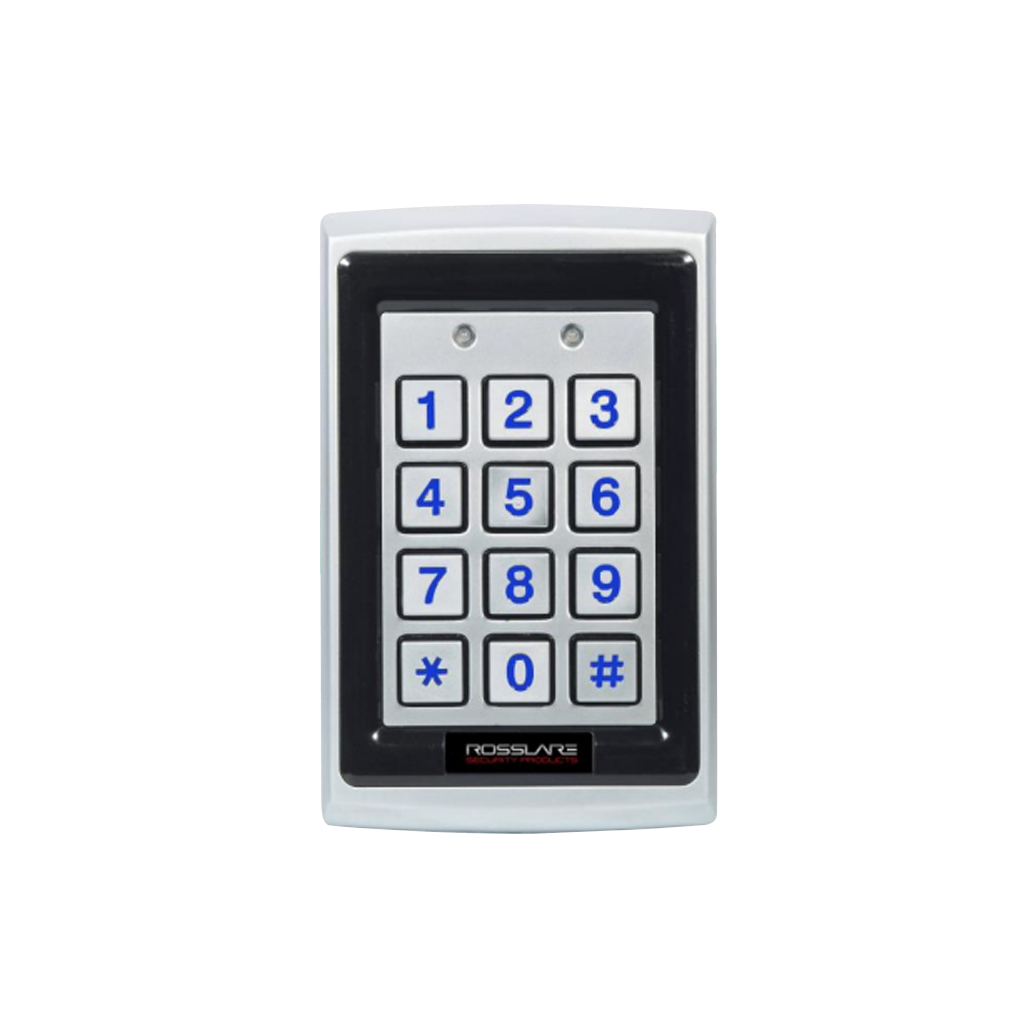

ROSSLARE AYC-Q64B
Anti-Vandal US Single Gang Backlit
PROX + PIN Reader – Convertible
MAIN FEATURES
Supports 4- to 8-digit PIN credentials and 125 kHz EM type RFID cards and tags
Smooth, attractive design, with all-weather indoor and outdoor operation
Large, highly-visible blue backlit keypad
2 tri-colored LEDs and an integral sounder for programming and operation
User friendly menu, based on keypad, LED and sounder indicators
Back and cover optical tamper detection and output
Default operation as a multi-format reader (Wiegand 26-Bit/Clock & Data)
Automatically recognizes Rosslare’s PS-x25T intelligent power supply family converting it into
a 500-user standalone controller with secure relays
PROFESSIONAL GRADE FEATURES
8 selectable PIN transmission modes including options for Key Stream, Binary, Parity, and 3×4 Matrix
Supports Wiegand or Clock & Data transmission formats
Comes with a mounting and drilling label, security screw, and tool set to prevent unauthorized opening
60 cm (23.6 in.) shielded interface cable
SPECIFICATIONS
| ELECTRICAL SPECIFICATIONS | |
| Operating Voltage Range | Reader mode: 5 to 16 VDC from a standard controller Controller mode: PS-x25T series intelligent power supplies |
| Input Current | Standby: 90 mA at 12 VDC Maximum: 130 mA at 16 VDC |
| Proximity Card Reader | Maximum read range*: 45 mm (1.8 in.) Modulation: ASK at 125 kHz Compatible cards: All 26-Bit EM cards |
| Tamper | Optical back tamper sensor, O.C. active low, 32 mA max. sink current |
| OPERATIONAL SPECIFICATIONS | |
| Keypad | 3×4 keys for local programming and 4- to 8-digit PIN codes entry |
| Design | Epoxy potted, fully-sealed in a rugged metal enclosure, blue backlit metal keys, highly strong construction. Suitable for extremely harsh environments. |
| Audio/Visual | Two tri-color LED indicators, built-in buzzer |
| READER MODE | |
| LED Control | Dry contact, N.O. |
| Facility Code | Programmable |
| Read Card Format | Selectable Wiegand 26-Bit or Clock & Data |
| PIN Code Formats | 8 selectable formats, from 1- to 8-digit length PIN codes |
| CONTROLLER MODE (available with PS-x25T series intelligent power supplies only) | |
| Capacity | 500 users, dual code/card or code + card each |
| User Levels | Normal, Secure, Master |
| Security Modes | Normal, Bypass, Secure |
| Outputs | Lock Strike output Auxiliary output (PS-x25T series) |
| Inputs | REX (Request-to-Exit) Auxiliary/door monitor with 10 programmable modes |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Environment | All weather, indoor and outdoor use, meets IP65 |
| Operating Temperature Range | -35°C to 66°C (-31°F to 151°F) |
| Operating Humidity Range | 0 to 95% |
| PHYSICAL SPECIFICATIONS | |
| Dimensions | 120 x 76 x 21 mm (4.7 x 3 x 0.8 in.) |
| Weight | 480 g (1.1 lb) |
| SYSTEM COMPONENTS | AYC-Q64B is compatible with standard access controllers in Reader mode. With Rosslare’s PS-x25T intelligent power supply series it automatically converts into a 500-user secure controller. |
