描述
ROSSLARE AY-x2B 是ROSSLARE門禁讀頭，用於層門或通道。香港防盜為安裝商及經銷商。卡種及讀距以原廠規格書為準。

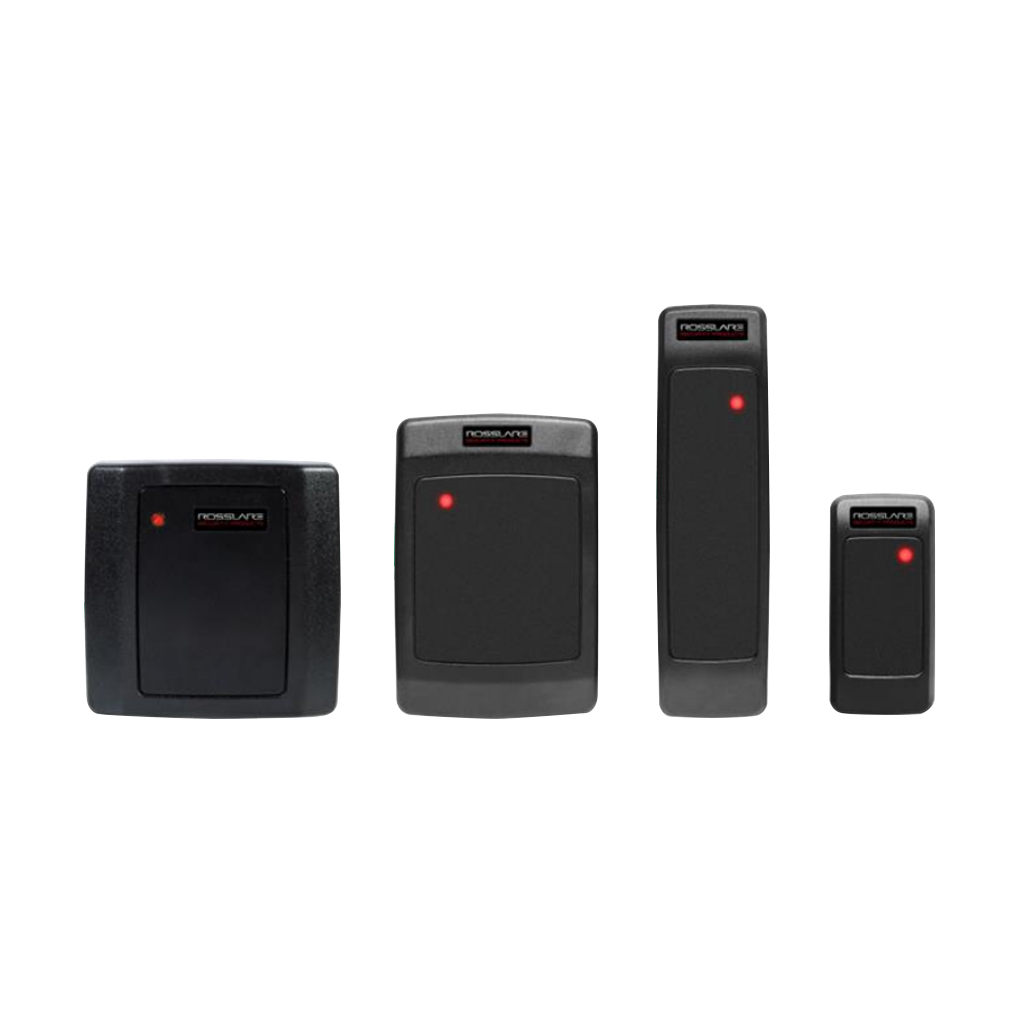

ROSSLARE AY-x2B
125 kHz EM Contactless Smart Card Reader
MAIN FEATURES
Read range of up to 65 mm (2.6 in.) depending on the card type
Supports Standard Wiegand 26-Bit
Made of tough polycarbonate plastic for improved performance in all indoor weather conditions
Developed for cost-effective market
PROFESSIONAL GRADE FEATURES
Bi-colored LED and LED control input
Internal buzzer
SPECIFICATIONS
| ELECTRICAL SPECIFICATIONS | |||||
| Operating Voltage Range | 5–16 VDC, from a regulated power supply | ||||
| Input Current | Standby: 45 mA @ 12 VDC Max: 100 mA @ 12 VDC |
||||
| OPERATIONAL SPECIFICATIONS | |||||
| Indicators | Bi-colored LED indicator (Red on standby, Green on Card Read) | ||||
| Inputs | Input for LED control | ||||
| Output Format | Wiegand 26-bit | ||||
| Maximum read range | AY-M2B/AY-H2B/AY-L2B: 10 cm (4 in.) AY-K2B: 8 cm (3.2 in.) |
||||
| Built-In Proximity Reader | Compatible cards: EM 125 kHz | ||||
| ENVIRONMENTAL SPECIFICATIONS | |||||
| Operating Environment | Suitable for Indoor Use, IP-54 | ||||
| Operating Temperature Range | -31°C to 63°C (-25°F to 145°F) | ||||
| Operating Humidity Range | 0% to 95% (non-condensing) | ||||
| MECHANICAL SPECIFICATIONS |
|
||||
| Dimensions (H x W x D) |
|
||||
| Weight |
|
||||
| System Components | The AY-x2B series is compatible with a variety of Rosslare’s controllers, as well as with many third-party systems | ||||
