描述
ROSSLARE AYC-x6355 是ROSSLARE門禁讀頭，用於層門或通道。香港防盜為安裝商及經銷商。卡種及讀距以原廠規格書為準。

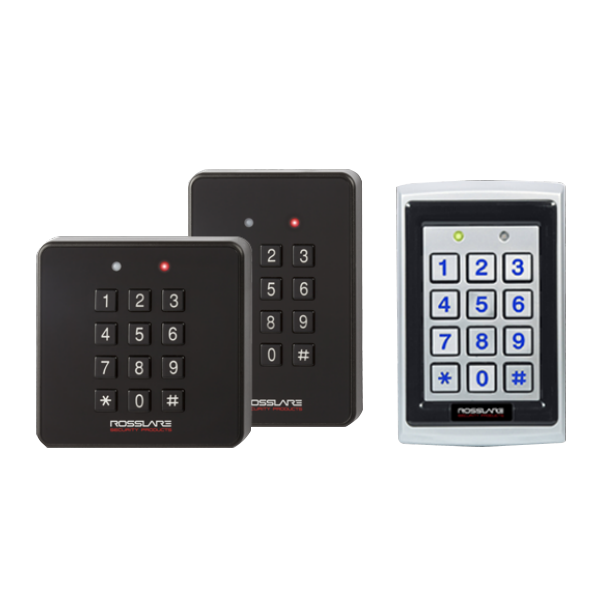

ROSSLARE AYC-x6355
CSN SELECT™ Convertible Smart Card Readers
Main Features
• The reader settings can be configured with the CS-CCT Configuration Tool or locally with keyboard programming
• Eight keypad transmission formats are available and can be locally selected via keypad programming
• Supports OSDP V2 including secure channel using AES 128 bit encryption for improved security with an extended range, up to 32 addresses
• MIFARE Classic EV1 Sector Read – Compatible with ISO 14443A 1K and 4K credentials
• Features Rosslare’s convertible technology
• Supports NFC1 technology using Rosslare BLE-ID mobile app or SDK.
• Sleek and modern design
• Two tri-colored LED operation
• Optical wall tamper detection
• Blue backlit keypad with power saving options (On, Off, Dimming)
• Mounting options include US gangbox and UK/Asia gangbox
• Comes with mounting template and installation kit for easy installation
• Water and dust resistant
• IP68 for models without DIP switches
• IP65 for models with DIP switches
• IK08 vandal resistance (without the bezel)
Technical Specifications
| Electrical Characteristics | |
| Operating Voltage Range | 8 to 16 VDC |
| Current at 12 V | AYC-H/M6355: Standby: 120 mA, max: 160 mA |
| AYC-Q6355: Standby: 145 mA, max: 200 mA | |
| Read Range | AYC-H/M6355: 9 cm (3.5 in.)¹ |
| AYC-Q6355: 5 cm (2.5 in.)¹ | |
| NFC up to 7 cm (2.9 in.)² | |
| Green LED Control | Dry Contact, N.O. |
| Red LED Control | Dry Contact, N.O. |
| LED/Buzzer Controls | Dry Contact, N.O. |
| Tamper Output | Open collector, active low, max. sink current 16 mA |
| Keypad | 3×4 matrix backlit keypad (used also for local programming) |
| Credential Technology | 13.56MHz: ISO14443A: MIFARE Classic® EV1 / MIFRAE Classic EV1 Sector read / MIFARE Classic®, MIFARE Ultralight® Nano / MIFARE Ultralight® EV1/ MIFARE Ultralight® C, MIFARE Plus® S / MIFARE Plus® SE / MIFARE Plus® X / MIFARE Plus® EV1, MIFARE DESFire® EV1/ MIFARE DESFire® EV2, MIFARE NFC N-TAG / Card Emulation ISO14443B – China National ID ISO15693 HID®, iClass®, PicoPass, iCode, LEGIC ISO18092: SONY® FeliCa® (Hong Kong Octopus) |
| Communication and Controller Connection | Wiegand: 26 (default), 32, 34, 40, 56, 64, 96, 128-bits Wiegand Card + PIN Clock & Data OSDP Secure Channel V2 |
| Maximum Cable Distance to Controller | Wiegand: 150 m (500 ft) with 18-AWG cable OSDP (RS-485): 1,200 m (4,000 ft) with 2×2 18-AWG twisted shielded cable |
| Environmental Characteristics | |
| Operating Temp. Range | -35°C to 66°C (-31°F to 150°F) |
| Operating Humidity Range | 0 to 95% (non-condensing) |
| Operating Environment | UV-resistant, epoxy-potted, suitable for indoor and outdoor use • IP68 for models without DIP switches • IP65 for models with DIP switches |
| Vandal Resistance | IK08 (without the bezel) |
| Physical Characteristics | |
| Dimensions (H x W x D) | AYC-H6355: 110.7 × 75.0 × 18.2 mm (4.4 x 3.0 x 0.7 in.) |
| AYC-M6355: 89.5 × 88.9 × 18.3 mm (3.5 x 3.5 x 0.7 in.) | |
| AYC-Q6355: 120.0 × 76.0 × 21.5 mm (4.7 x 3.0 x 0.9 in.) | |
| Weight | AYC-H6355: 185 g (6.5 oz) |
| AYC-M6355: 169 g (5.9 oz) | |
| AYC-Q6355: 430 g (15.2 oz) | |
