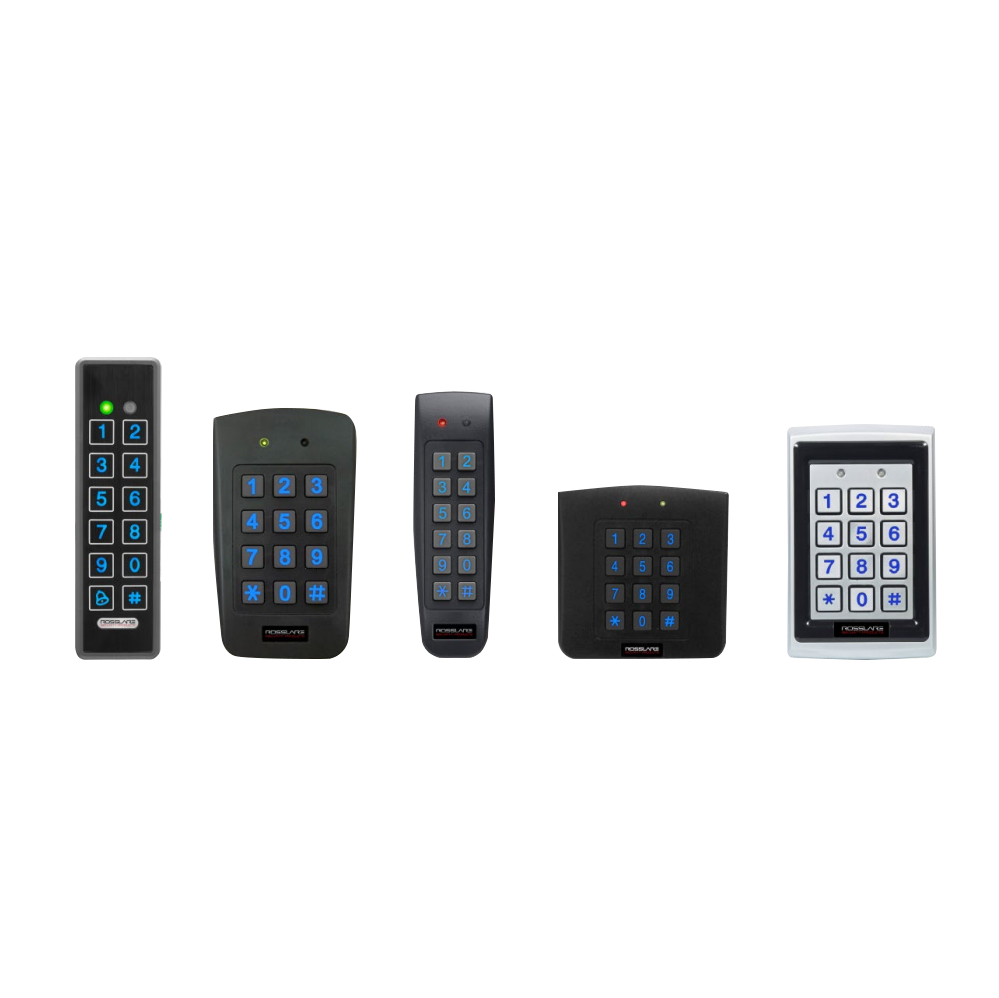

ROSSLARE AYC-E/F/G/M/Q60
Backlit goPROX® & PIN Reader – Convertible Series
MAIN FEATURES
Advanced, secure, multi-application functionality for intelligent installations
Smooth, attractive design, with all-weather indoor and outdoor operation
2 tri-colored LEDs and an integral sounder for programming and operation
Unique backlit piezoelectric keys
User-friendly menu based on keypad, LED, and sounder indicators
Back and cover optical tamper detection and output
Default operation as a multi-format reader (ASK&FSK formats, Wiegand 26-Bit, Clock & Data)
Automatically recognizes Rosslare’s PS-x5 intelligent power supply family, converting into a 500-user standalone controller with secure relays
3 security levels (controller mode): Bypass (free entry), Normal (card or PIN required) or Secure (card + PIN)
SPECIFICATIONS
| ELECTRICAL SPECIFICATIONS | |||||
| Operating Voltage Range | 5–16 VDC | ||||
| Standby Input Current | 100 mA | ||||
| Maximum Input Current | 140 mA | ||||
| Tamper Output | Open collector, active low, max. sink current 32 mA | ||||
| LED Control Input | Dry Contact N.O. | ||||
| Cable Distance Host Controller | Up to 150 m (500 ft) using an 18 AWG cable | ||||
| Max Proximity Card Range | 60 mm (2.36 in.) | ||||
| Proximity Card Modulation | ASK and FSK at 125 kHz | ||||
| Card Transmit Format (Reader) | Rosslare PROX – EM cards: Wiegand 26-Bit, or Clock & Data FSK cards: According to card type | ||||
| LED Indicators | Two tri-colored LEDs | ||||
| Compatible Cards | 125 kHz and/or dual technology ISO cards, clamshell and tags | ||||
| ENVIRONMENTAL SPECIFICATIONS | |||||
| Operating Temperature | -30ºC to 65ºC (-22ºF to 150ºF) | ||||
| Operating Humidity | 0% to 95% (non-condensing) | ||||
| Outdoor Usage | Weather-resistant, meets IP-65, epoxy potted, suitable for outdoor use | ||||
| MECHANICAL SPECIFICATIONS | AYC-E60B | AYC-F60 | AYC- G60 | AYC-M60 | AYC-Q60 |
| Dimensions (L x W x H) | 155 x 44 x 9 mm (6.1 x 1.7 x 0.35 in.) | 120 x 76 x 21 mm (4.72 x 3 x 0.87 in.) | 137 x 44 x 21 mm (5.39 x 1.73 x 0.83 in.) | 92.5 x 92.5 x 17.8 mm (3.64 x 3.64 x 0.70 in.) | 120 x 76 x 22 mm (4.72 x 3 x 0.96 in.) |
| Weight | 143 g 0.31 lbs | 480 g 1.05 lbs | 160 g 0.35 lbs | 170 g 0.37 lbs | 480 g 1.05 lbs |
