ROSSLARE AYC-E65B
Ultra-Slim Piezo Mullion Backlit PROX & PIN Reader – Convertible
MAIN FEATURES
Supports 4- to 8-Digit PIN credentials and 125 KHz EM type RFID cards and tags
Smooth, attractive design, with all-weather indoor and outdoor operation
Large, high-visibility unique illuminated piezoelectric keypad
Optical back tamper detection output
2 tri-colored LEDs and an integral sounder for programming and operation
User-friendly menu system based on keypad, LED, and sounder indicators
Automatically recognizes a connection to PS-x25T intelligent power supplies and converts into a 500- user standalone controller with secure relays

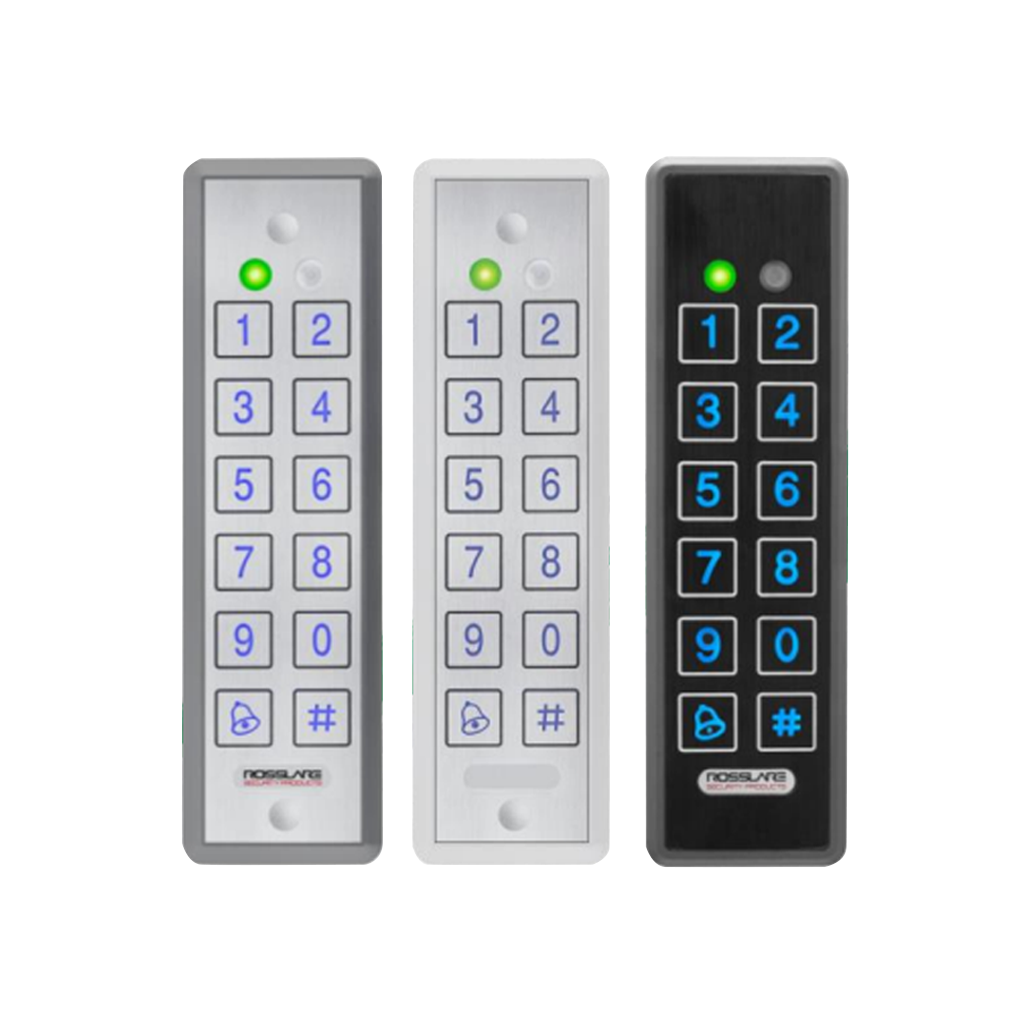

Available in three models: AYC-E65BG with gray antenna, AYC-E65BW with white antenna, and AYC-E65BB in black
PROFESSIONAL GRADE FEATURES
8 selectable PIN transmission modes including options for Key stream, Binary, Parity, and 2×6 Matrix
Supports Wiegand or Clock & Data transmission formats
3 security levels (controller mode): Bypass (free entry), Normal (card or PIN required) or Secure (card + PIN)
Comes with a mounting and drilling label
60 cm (23.6 in.) shielded interface cable
SPECIFICATIONS
| ELECTRICAL SPECIFICATIONS | |
| Operating Voltage Range | Reader mode: 5 to 16 VDC from a standard controller Controller mode: PS-x25T series intelligent power supplies |
| Input Current | Standby: 92 mA @ 12 VDC, Maximum: 105 mA @ 16 VDC |
| Proximity Card Reader | Maximum read range*: 40 mm (1.6 in.) Modulation: ASK at 125 kHz Compatible cards: All 26-Bit EM Cards |
| Tamper | Open collector, active low, 30 mA max sink current |
| OPERATIONAL SPECIFICATIONS | |
| Keypad | 2×6 blue illuminated keys (Always On, Always Off and Auto Dimming options) for local programming and 4- to 8-digit PIN codes entry |
| Design | Epoxy potted, fully sealed in a rugged thin metal enclosure, highly strong construction and highly sensitive piezoelectric keys. Suitable for extremely harsh environments |
| Audio/Visual | Two tri-colored LED indicators, built-in buzzer |
| READER MODE | |
| LED Control | Dry contact, N.O. |
| Facility Code | Programmable |
| Card Read Formats | Selectable Wiegand 26-Bit or Clock & Data |
| PIN Code Formats | 8 selectable formats, from 1 to 8-digit length PIN Codes |
| CONTROLLER MODE Available with PS-x25T series intelligent power supplies only | |
| Capacity | 500 users, single/dual PIN code each |
| User Levels | Normal, Secure and Master |
| Security Modes | Normal, Bypass and Secure |
| Outputs | Lock Strike output, Auxiliary output (PS-x25T series) |
| Inputs | REX (Request to Exit) Auxiliary/Door Monitor with 10 programmable modes |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Environment | All weather, indoor and outdoor use, meets IP 68 |
| Operating Temperature | 30˚C to 65˚C (-22˚F to 150˚F) |
| Operating Humidity | 0 to 95% |
| PHYSICAL SPECIFICATIONS | |
| Dimensions | 155 x 44 x 9 mm (6.1 x 1.73 x 0.354 in.) |
| Weight | 143 g (0.315 lbs) |
| SYSTEM COMPONENTS | AYC-E65B (Reader mode) is compatible with standard access controllers. With Rosslare’s PS-x25T intelligent power supplies series, it automatically converts into a 500-user secure controller. |
